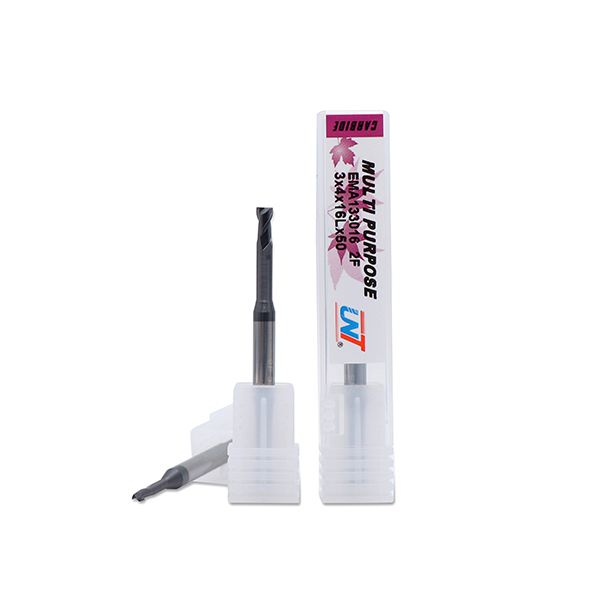

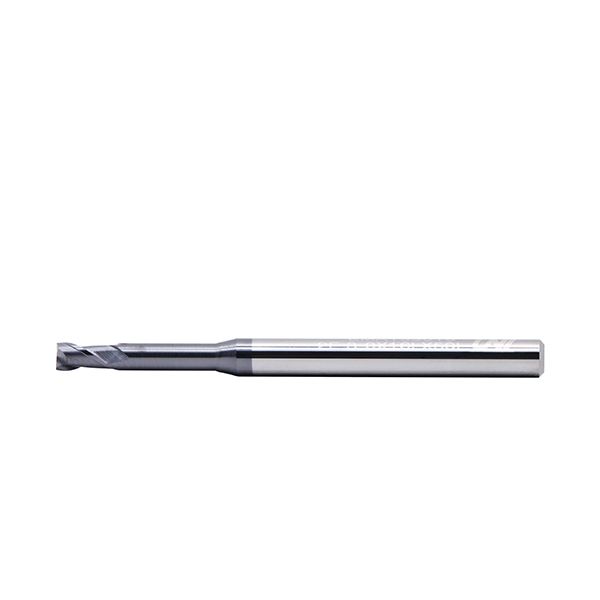

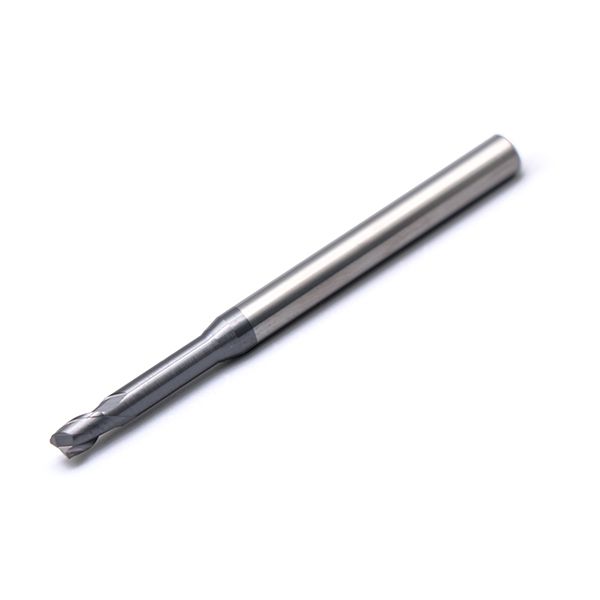

EMA13 2 Flute Micro Square End Mill, Long Neck End Mill
- Offers excellent performance when cutting prehardened steels up to HRc56
- Used for machining molds & dies
- Special long neck design for machining deep cavity, deep slotting and deep pocketing
- Super micro end mill available with diameters ranging from 0.02~2.9mm
- 2 flute, miniature cutting tools are suitable for high precision milling in medical, optical, electronics and aerospace industries

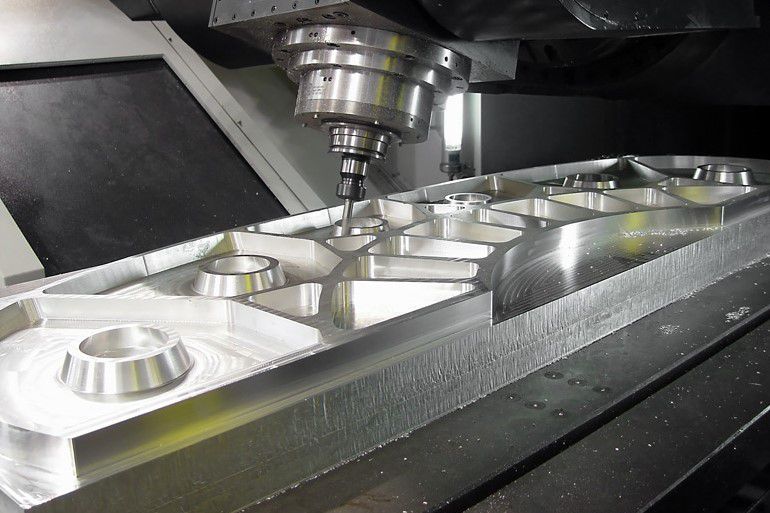

Application
Product Specifications
| Coating | AITiN /TiALN /TiAISiN AITiSiN |
HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |

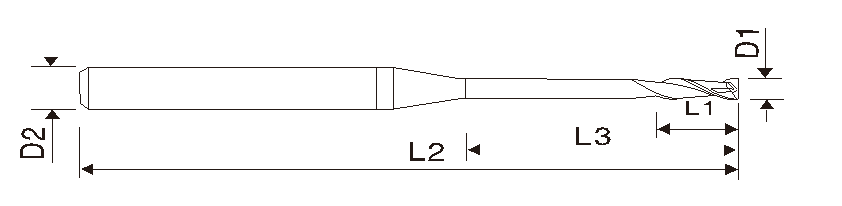

Carbide 2 Flute Micro Square End Mills with Long Neck
for RIB Processing (UNT-EMA13)
| UNT EDP # Click to Order | Mill Dia. D1 |
Effective Length L3 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMA130402 | 0.4 | 2 | 4 | 0.6 | 50 | 2 |
| EMA130404 | 0.4 | 4 | 4 | 0.6 | 50 | 2 |
| EMA130406 | 0.4 | 6 | 4 | 0.6 | 50 | 2 |
| EMA130502 | 0.5 | 2 | 4 | 0.8 | 50 | 2 |
| EMA130504 | 0.5 | 4 | 4 | 0.8 | 50 | 2 |
| EMA130506 | 0.5 | 6 | 4 | 0.8 | 50 | 2 |
| EMA130508 | 0.5 | 8 | 4 | 0.8 | 50 | 2 |
| EMA130602 | 0.6 | 2 | 4 | 1 | 50 | 2 |
| EMA130604 | 0.6 | 4 | 4 | 1 | 50 | 2 |
| EMA130606 | 0.6 | 6 | 4 | 1 | 50 | 2 |
| EMA130608 | 0.6 | 8 | 4 | 1 | 50 | 2 |
| EMA130610 | 0.6 | 10 | 4 | 1 | 50 | 2 |
| EMA130804 | 0.8 | 4 | 4 | 1.2 | 50 | 2 |
| EMA130806 | 0.8 | 6 | 4 | 1.2 | 50 | 2 |
| EMA130808 | 0.8 | 8 | 4 | 1.2 | 50 | 2 |
| EMA130810 | 0.8 | 10 | 4 | 1.2 | 50 | 2 |
| EMA130812 | 0.8 | 12 | 4 | 1.2 | 50 | 2 |
| EMA131006 | 1.0 | 6 | 4 | 1.5 | 50 | 2 |
| EMA131008 | 1.0 | 8 | 4 | 1.5 | 50 | 2 |
| EMA131010 | 1.0 | 10 | 4 | 1.5 | 50 | 2 |
| EMA131012 | 1.0 | 12 | 4 | 1.5 | 50 | 2 |
| EMA131014 | 1.0 | 14 | 4 | 1.5 | 50 | 2 |
| EMA131016 | 1.0 | 16 | 4 | 1.5 | 50 | 2 |
| EMA131018 | 1.0 | 18 | 4 | 1.5 | 50 | 2 |
| EMA131020 | 1.0 | 20 | 4 | 1.5 | 50 | 2 |
| EMA131206 | 1.2 | 6 | 4 | 1.8 | 50 | 2 |
| EMA131208 | 1.2 | 8 | 4 | 1.8 | 50 | 2 |
| EMA131210 | 1.2 | 10 | 4 | 1.8 | 50 | 2 |
| EMA131212 | 1.2 | 12 | 4 | 1.8 | 50 | 2 |
| UNT EDP # Click to Order | Mill Dia. |
Effective Length |
Shank Dia. |
Flute Length |
O.A.L. |
Flutes |
| D1 | L3 | D2 | L1 | L2 | ||
| EMA131214 | 1.2 | 14 | 4 | 1.8 | 50 | 2 |
| EMA131216 | 1.2 | 16 | 4 | 1.8 | 50 | 2 |
| EMA131218 | 1.2 | 18 | 4 | 1.8 | 50 | 2 |
| EMA131220 | 1.2 | 20 | 4 | 1.8 | 50 | 2 |
| EMA131506 | 1.5 | 6 | 4 | 2.5 | 50 | 2 |
| EMA131508 | 1.5 | 8 | 4 | 2.5 | 50 | 2 |
| EMA131510 | 1.5 | 10 | 4 | 2.5 | 50 | 2 |
| EMA131512 | 1.5 | 12 | 4 | 2.5 | 50 | 2 |
| EMA131514 | 1.5 | 14 | 4 | 2.5 | 50 | 2 |
| EMA131516 | 1.5 | 16 | 4 | 2.5 | 50 | 2 |
| EMA131518 | 1.5 | 18 | 4 | 2.5 | 50 | 2 |
| EMA131520 | 1.5 | 20 | 4 | 2.5 | 50 | 2 |
| EMA132006 | 2.0 | 6 | 4 | 3 | 50 | 2 |
| EMA132008 | 2.0 | 8 | 4 | 3 | 50 | 2 |
| EMA132010 | 2.0 | 10 | 4 | 3 | 50 | 2 |
| EMA132012 | 2.0 | 12 | 4 | 3 | 50 | 2 |
| EMA132014 | 2.0 | 14 | 4 | 3 | 50 | 2 |
| EMA132016 | 2.0 | 16 | 4 | 3 | 50 | 2 |
| EMA132018 | 2.0 | 18 | 4 | 3 | 50 | 2 |
| EMA132020 | 2.0 | 20 | 4 | 3 | 50 | 2 |
| EMA133008 | 3.0 | 8 | 4 | 4.5 | 50 | 2 |
| EMA133010 | 3.0 | 10 | 4 | 4.5 | 50 | 2 |
| EMA133012 | 3.0 | 12 | 4 | 4.5 | 50 | 2 |
| EMA133014 | 3.0 | 14 | 4 | 4.5 | 50 | 2 |
| EMA133016 | 3.0 | 16 | 4 | 4.5 | 50 | 2 |
| EMA133018 | 3.0 | 18 | 4 | 4.5 | 50 | 2 |
| EMA133020 | 3.0 | 20 | 4 | 4.5 | 50 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
