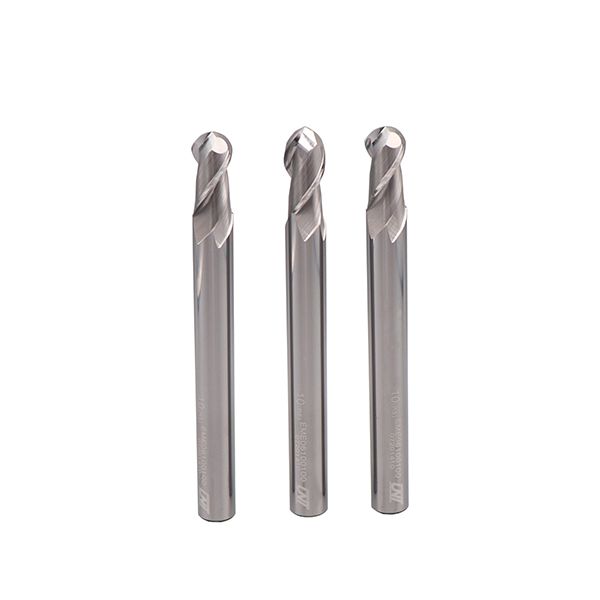

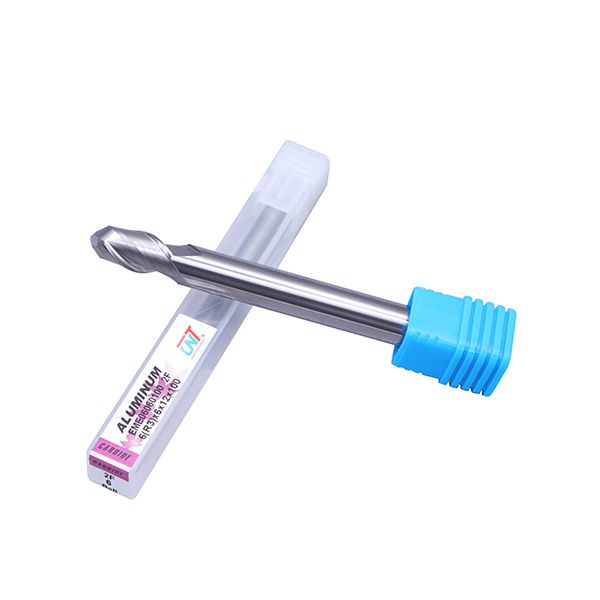

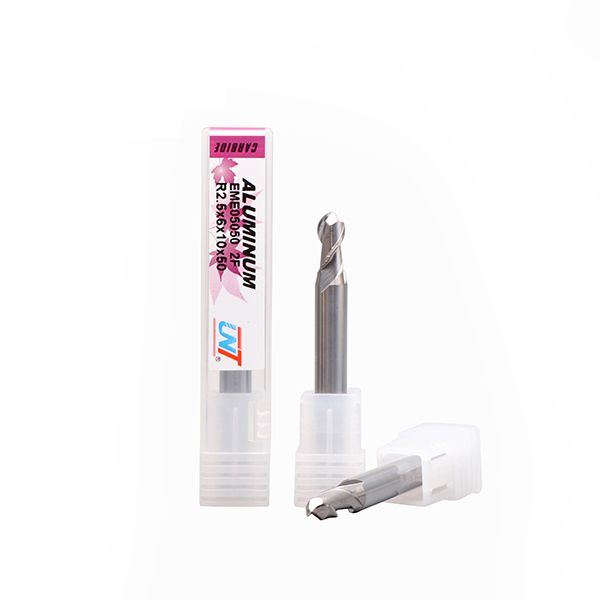

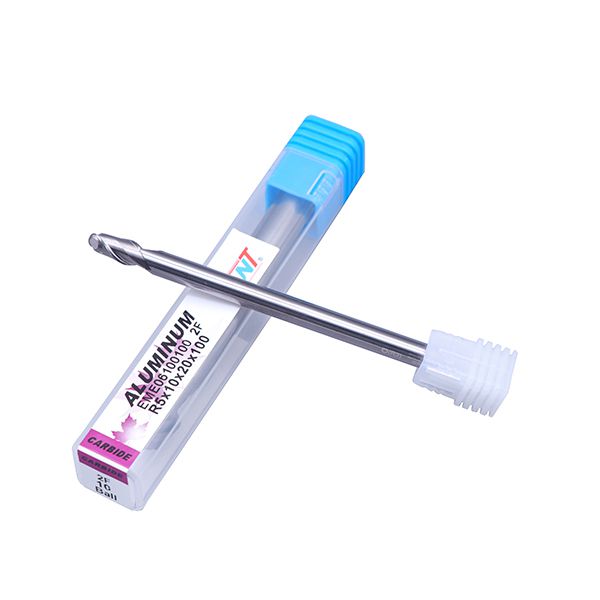

EME05 Carbide, 2 Flute Ball End Mills
- High performance in machining aluminum alloy, copper alloy, graphite, resin and non-ferrous material
- Features excellent surface finishes and superior chips ejection
- Suitable for profile milling, slotting, and chamfer cutting

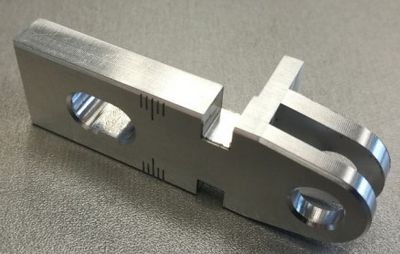

Application
Product Specifications
| Coating | Non-Coated or TiN, TiCN & TiAIN | HRC | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide 2 Flute Ball Nose Cutter- Regular Length, for Copy Milling (UNT-EME05)

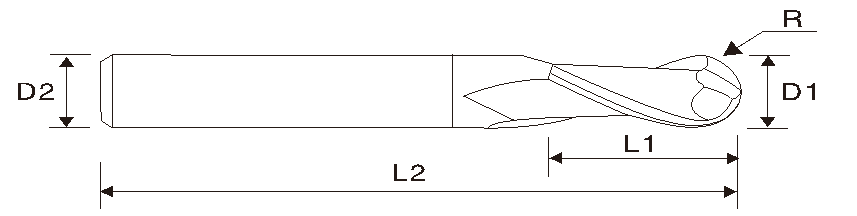

| UNT EDP # Click to Order | Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EME05010 | R0.5 | 1 | 4 | 2 | 50 | 2 |
| EME05015 | R0.75 | 1.5 | 4 | 3 | 50 | 2 |
| EME05020 | R1.0 | 2 | 4 | 4 | 50 | 2 |
| EME05025 | R1.25 | 2.5 | 4 | 5 | 50 | 2 |
| EME05030 | R1.5 | 3 | 4 | 6 | 50 | 2 |
| EME05030 | R1.5 | 3 | 3 | 6 | 50 | 2 |
| EME05040 | R2.0 | 4 | 4 | 8 | 50 | 2 |
| EME05050 | R2.5 | 5 | 6 | 10 | 50 | 2 |
| EME05060 | R3.0 | 6 | 6 | 12 | 50 | 2 |
| EME05080 | R4.0 | 8 | 8 | 16 | 60 | 2 |
| EME05100 | R5.0 | 10 | 10 | 20 | 75 | 2 |
| EME05120 | R6.0 | 12 | 12 | 24 | 75 | 2 |
| EME05160 | R8.0 | 16 | 16 | 32 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
