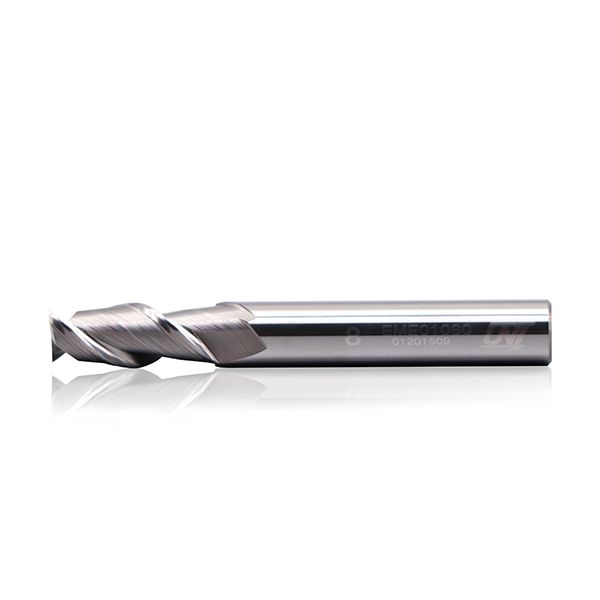

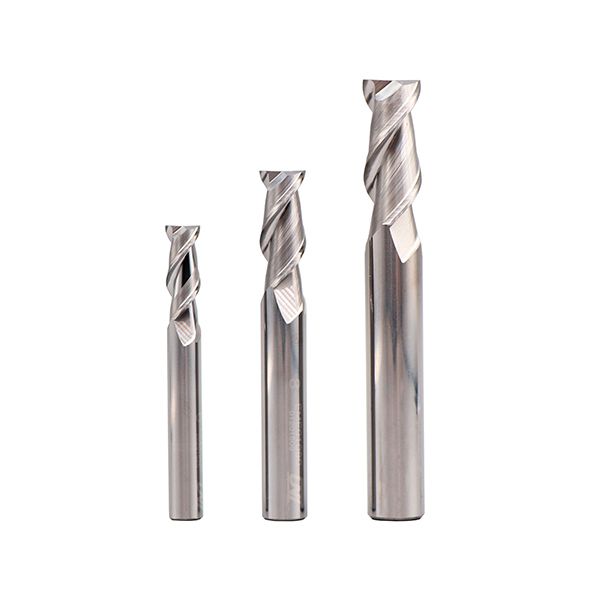

EME01 Carbide, 2 Flute Square End Mills
- Designed to machine aluminum alloy, copper alloy, graphite, resin and non-ferrous material
- Features excellent surface finishes, superior chips ejection and long tool life
- High-quality aluminum milling cutters are available with TiN, TiCN & TiAIN coating upon request
- Center & slotting cutting

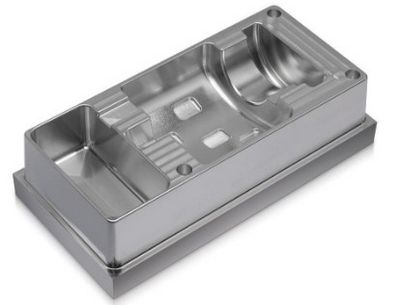

Application
Product Specifications
| Coating | Non-Coated or TiN, TiCN & TiAIN | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide 2 Flute End Mill, 45° Helix, Regular Length – Slotting (UNT-EME01)

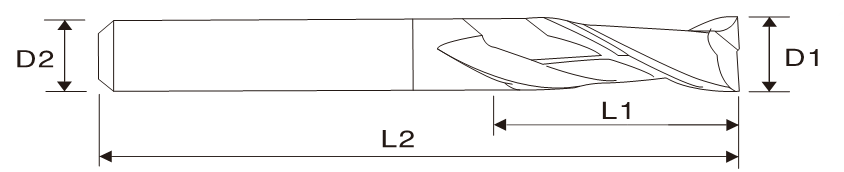

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EME01005 | 0.5 | 4 | 1 | 50 | 2 |
| EME01006 | 0.6 | 4 | 1.2 | 50 | 2 |
| EME01008 | 0.8 | 4 | 1.6 | 50 | 2 |
| EME01010 | 1.0 | 4 | 3 | 50 | 2 |
| EME01015 | 1.5 | 4 | 4 | 50 | 2 |
| EME01020 | 2.0 | 4 | 6 | 50 | 2 |
| EME01025 | 2.5 | 4 | 6 | 50 | 2 |
| EME01030 | 3.0 | 4 | 8 | 50 | 2 |
| EME01040 | 4.0 | 4 | 11 | 50 | 2 |
| EME01050 | 5.0 | 6 | 13 | 50 | 2 |
| EME01060 | 6.0 | 6 | 16 | 50 | 2 |
| EME01070 | 7.0 | 8 | 20 | 60 | 2 |
| EME01080 | 8.0 | 8 | 20 | 60 | 2 |
| EME01090 | 9.0 | 10 | 25 | 75 | 2 |
| EME01100 | 10.0 | 10 | 25 | 75 | 2 |
| EME01120 | 12.0 | 12 | 30 | 75 | 2 |
| EME01140 | 14.0 | 14 | 40 | 100 | 2 |
| EME01160 | 16.0 | 16 | 40 | 100 | 2 |
| EME01200 | 20.0 | 20 | 40 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
