EMB17 Carbide End Mill HRC65 Naco-Coated Milling Cutter, 45°Spiral / Regular Model EMB
Product Specifications
| Coating | Naco-Coated | HRC | HRC50/65° |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |

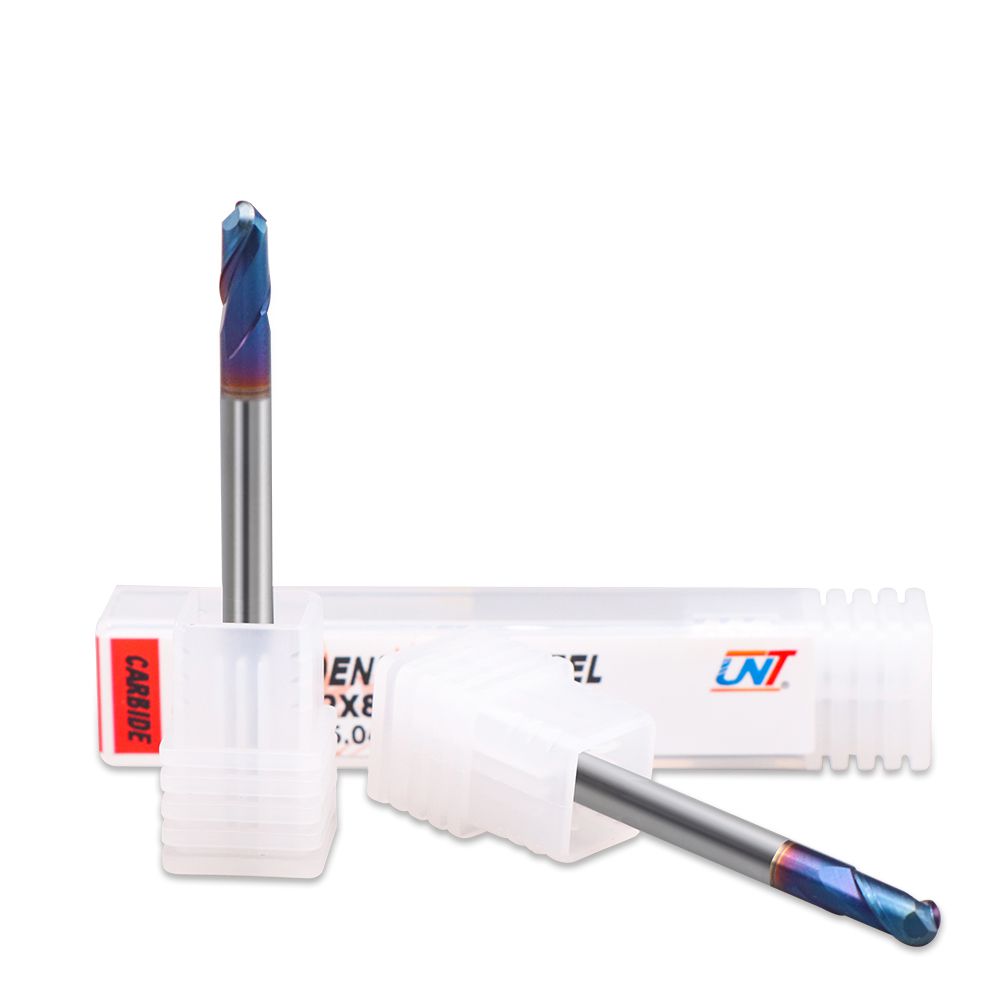

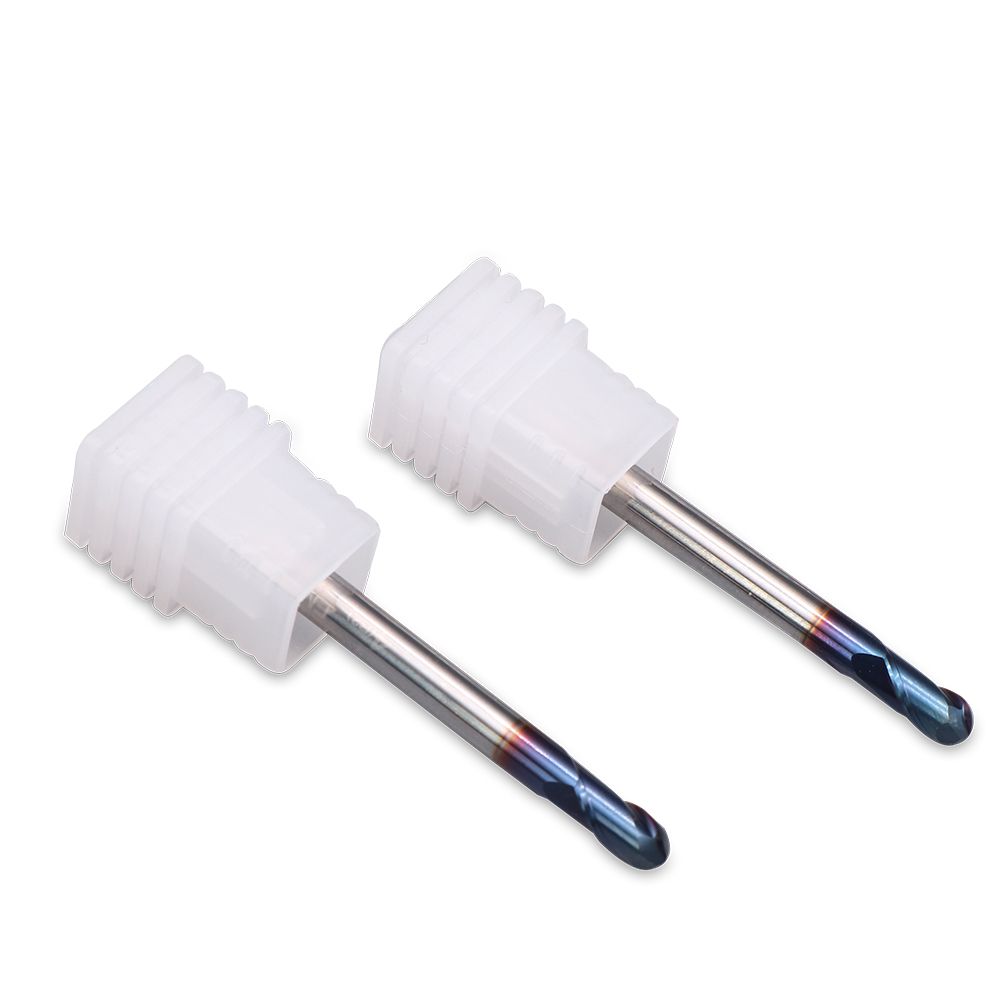

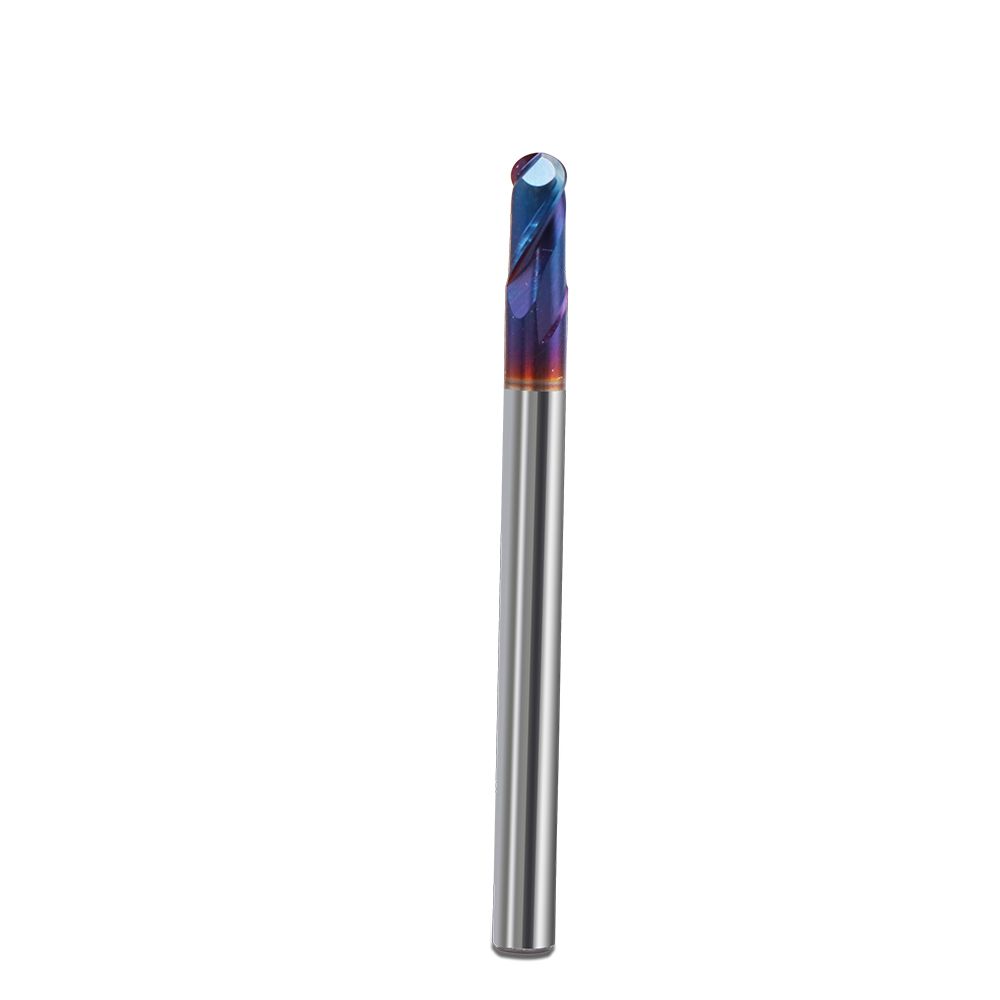

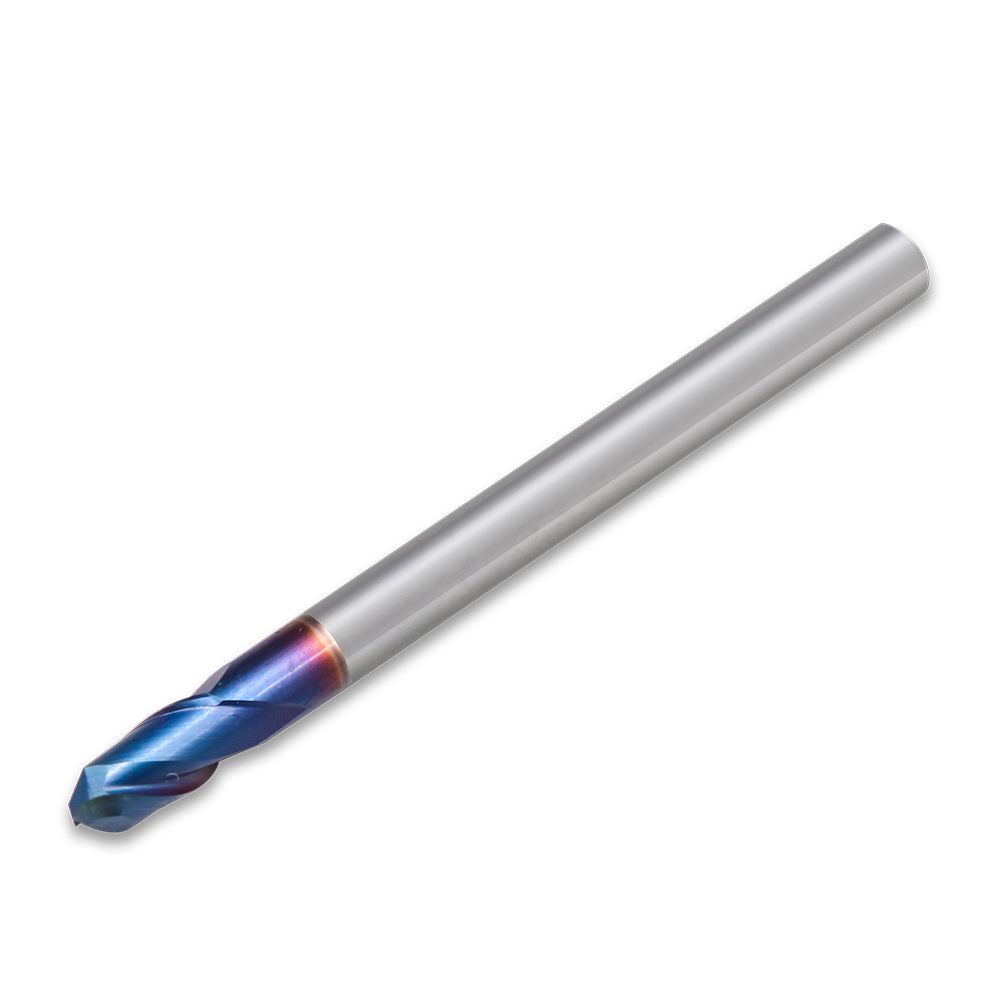

Carbide Milling Cutter HRC65 Blue NACO Coated CNC Tool, Ball End (UNT-EMB17)

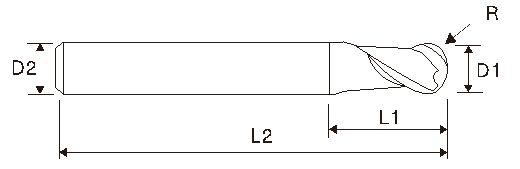

| UNT EDP # Click to Order | Radius of Ball R |
Mill Dia D1 |
Shank Dia D2 |
Flute length L1 |
O.A.L L2 |
Flutes |
| EMB170034 | R0.15 | 0.3 | 4 | 0.6 | 50 | 2 |
| EMB170044 | R0.2 | 0.4 | 4 | 0.8 | 50 | 2 |
| EMB170054 | R0.25 | 0.5 | 4 | 1 | 50 | 2 |
| EMB170064 | R0.3 | 0.6 | 4 | 1.2 | 50 | 2 |
| EMB170074 | R0.35 | 0.7 | 4 | 1.4 | 50 | 2 |
| EMB170084 | R0.4 | 0.8 | 4 | 1.6 | 50 | 2 |
| EMB170094 | R0.45 | 0.9 | 4 | 1.8 | 50 | 2 |
| EMB170104 | R0.5 | 1.0 | 4 | 2 | 50 | 2 |
| EMB170154 | R0.75 | 1.5 | 4 | 3 | 50 | 2 |
| EMB170204 | R1.0 | 2.0 | 4 | 4 | 50 | 2 |
| EMB170254 | R1.25 | 2.5 | 4 | 5 | 50 | 2 |
| EMB170304 | R1.5 | 3.0 | 4 | 6 | 50 | 2 |
| EMB170303 | R1.5 | 3.0 | 3 | 6 | 50 | 2 |
| EMB170404 | R2.0 | 4.0 | 6 | 8 | 50 | 2 |
| EMB170106 | R0.5 | 1.0 | 6 | 2 | 50 | 2 |
| EMB170156 | R0.75 | 1.5 | 6 | 3 | 50 | 2 |
| EMB170206 | R1.0 | 2.0 | 6 | 4 | 50 | 2 |
| EMB170256 | R1.25 | 2.5 | 6 | 5 | 50 | 2 |
| EMB170306 | R1.5 | 3.0 | 6 | 6 | 50 | 2 |
| EMB170406 | R2.0 | 4.0 | 6 | 8 | 50 | 2 |
| EMB170500 | R2.5 | 5.0 | 6 | 10 | 50 | 2 |
| EMB170600 | R3.0 | 6.0 | 6 | 12 | 50 | 2 |
| EMB170700 | R3.5 | 7.0 | 8 | 14 | 60 | 2 |
| EMB170800 | R4.0 | 8.0 | 8 | 16 | 60 | 2 |
| EMB171000 | R5.0 | 10.0 | 10 | 20 | 75 | 2 |
| EMB171200 | R6.0 | 12.0 | 12 | 24 | 75 | 2 |
| EMB171600 | R8.0 | 16.0 | 16 | 32 | 100 | 2 |
| EMB172000 | R10.0 | 20.0 | 20 | 40 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
