EMT10 2 Flute Carbide End Mill for Aluminum
- Features excellent surface finishes, superior chips ejection and long tool life
- High-quality aluminum milling cutters are available with TiN, TiCN & TiAIN coating upon request
- Center & slotting cutting

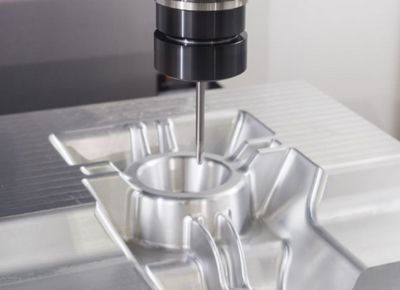

Application
Product Specifications
| Coating | Uncoated /DLC | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide 2 Flute End Mill for Aluminum (UNT-EMT10) - Economical Style

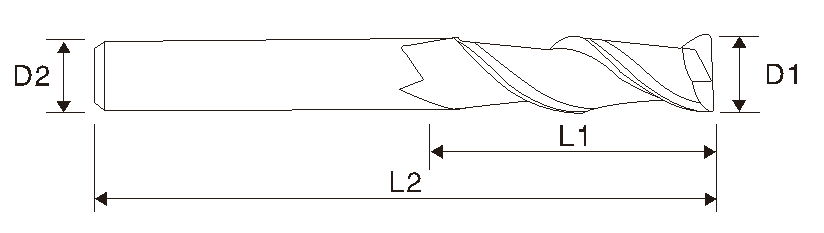

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMT10010 | 1.0 | 4 | 3 | 50 | 2 |
| EMT10015 | 1.5 | 4 | 4 | 50 | 2 |
| EMT10020 | 2.0 | 4 | 6 | 50 | 2 |
| EMT10025 | 2.5 | 4 | 6 | 50 | 2 |
| EMT10030 | 3.0 | 4 | 8 | 50 | 2 |
| EMT10040 | 4.0 | 4 | 11 | 50 | 2 |
| EMT10050 | 5.0 | 6 | 13 | 50 | 2 |
| EMT10060 | 6.0 | 6 | 16 | 50 | 2 |
| EMT10070 | 7.0 | 8 | 20 | 60 | 2 |
| EMT10080 | 8.0 | 8 | 20 | 60 | 2 |
| EMT10090 | 9.0 | 10 | 25 | 75 | 2 |
| EMT10100 | 10.0 | 10 | 25 | 75 | 2 |
| EMT10120 | 12.0 | 12 | 30 | 75 | 2 |
| EMT10140 | 14.0 | 14 | 40 | 100 | 2 |
| EMT10160 | 16.0 | 16 | 40 | 100 | 2 |
| EMT10200 | 20.0 | 20 | 40 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
