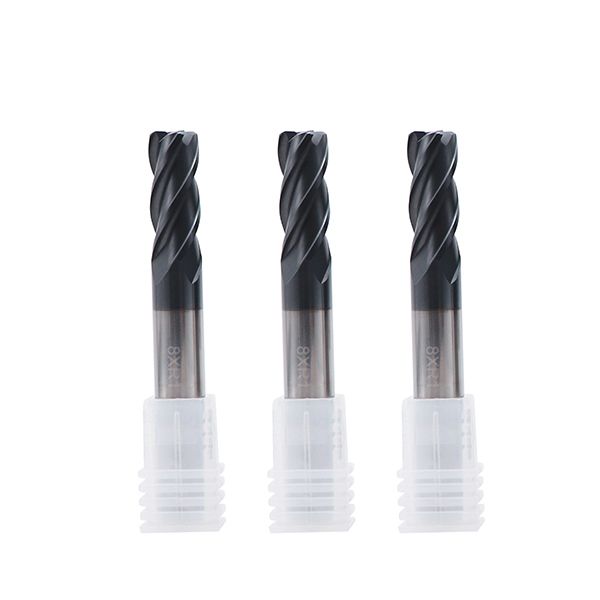

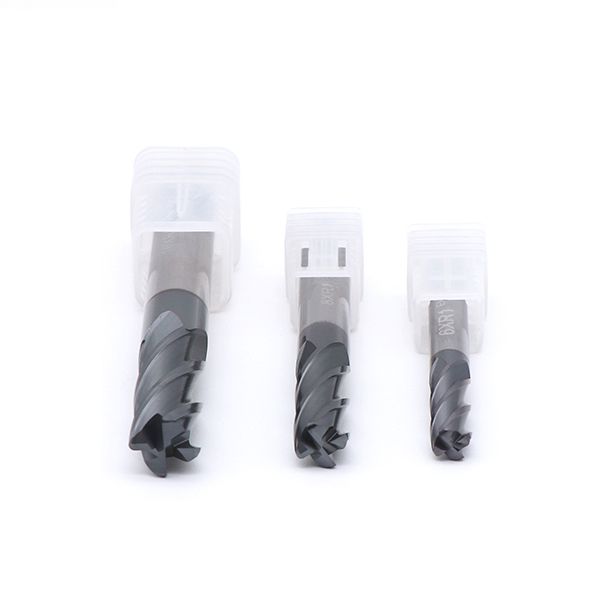

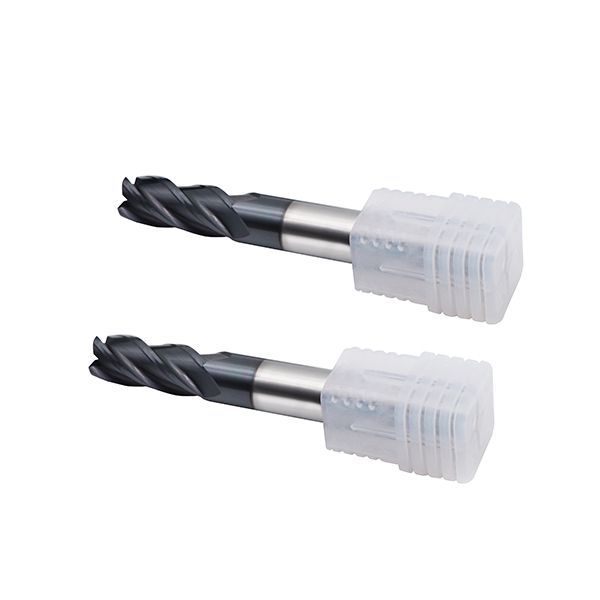

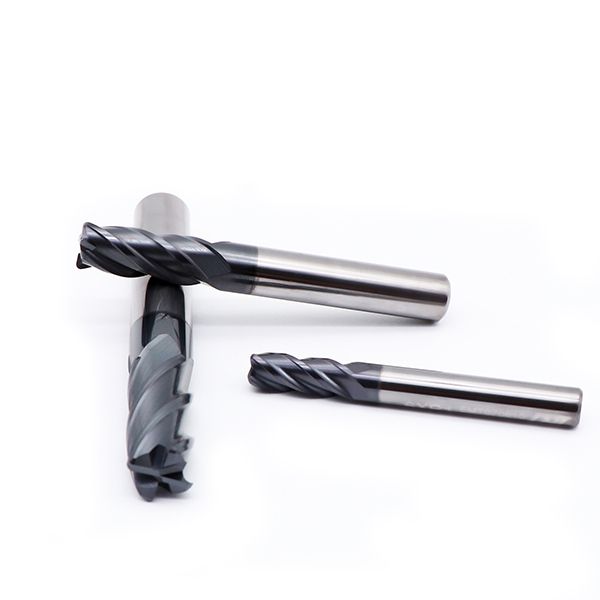

EMT08 4 Flute Carbide Corner Radius End Mill, Long Length
- Designed for low hardness materials (under HRc45) such as alloy steel, inconel, tools steel, carbon steel, prehardened steel, stainless steel, titanium alloy
- High speed cutting and finish milling with high feed rate
- 4 flute allows for better surface finish on the workpieces

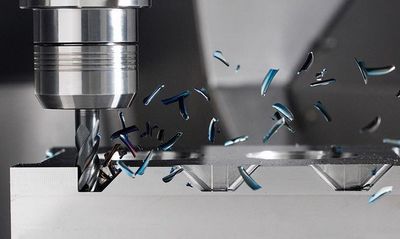

- Used for profile milling and slotting
Application
Product Specifications
| Coating | AITiN /TiALN /TiSiN | HRC | HRC35/45° |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Solid Carbide 4 Flute, Corner Radius End Mill (UNT-EMT08) - Long Length

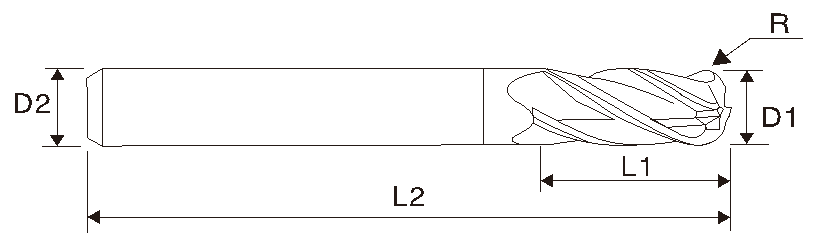

| UNT EDP # Click to Order | Corner Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMT0804075 | R0.5 | 4 | 4 | 11 | 75 | 4 |
| EMT0804100 | R0.5 | 4 | 4 | 11 | 100 | 4 |
| EMT0806075 | R0.5 | 6 | 6 | 16 | 75 | 4 |
| EMT080605 | R0.5 | 6 | 6 | 16 | 100 | 4 |
| EMT080610 | R1.0 | 6 | 6 | 16 | 100 | 4 |
| EMT080615 | R1.5 | 6 | 6 | 16 | 100 | 4 |
| EMT080620 | R2.0 | 6 | 6 | 16 | 100 | 4 |
| EMT0808051 | R0.5 | 8 | 8 | 20 | 75 | 4 |
| EMT080505 | R0.5 | 8 | 8 | 20 | 100 | 4 |
| EMT080810 | R01.0 | 8 | 8 | 20 | 100 | 4 |
| EMT080815 | R1.5 | 8 | 8 | 20 | 100 | 4 |
| EMT080820 | R2.0 | 8 | 8 | 20 | 100 | 4 |
| EMT081005 | R0.5 | 10 | 10 | 25 | 100 | 4 |
| EMT081010 | R1.0 | 10 | 10 | 25 | 100 | 4 |
| EMT081015 | R1.5 | 10 | 10 | 25 | 100 | 4 |
| EMT081020 | R2.0 | 10 | 10 | 25 | 100 | 4 |
| EMT081230 | R3.0 | 10 | 10 | 25 | 100 | 4 |
| EMT081205 | R0.5 | 12 | 12 | 30 | 100 | 4 |
| EMT081210 | R1.0 | 12 | 12 | 30 | 100 | 4 |
| EMT081215 | R1.5 | 12 | 12 | 30 | 100 | 4 |
| EMT081220 | R2.0 | 12 | 12 | 30 | 100 | 4 |
| EMT081230 | R3.0 | 12 | 12 | 30 | 100 | 4 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
