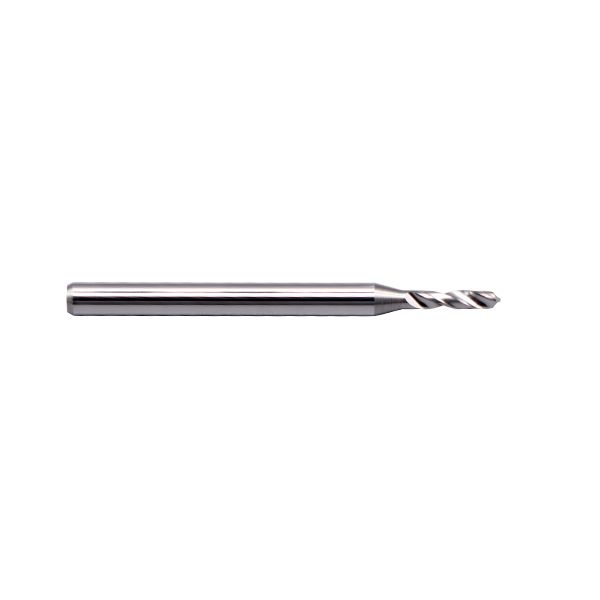

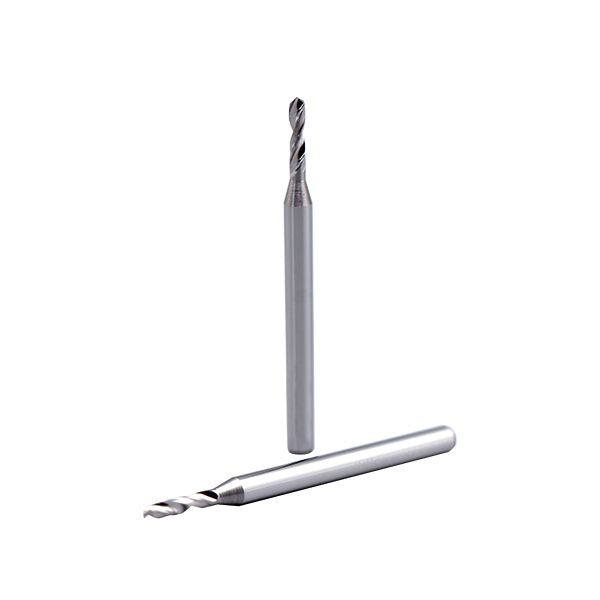

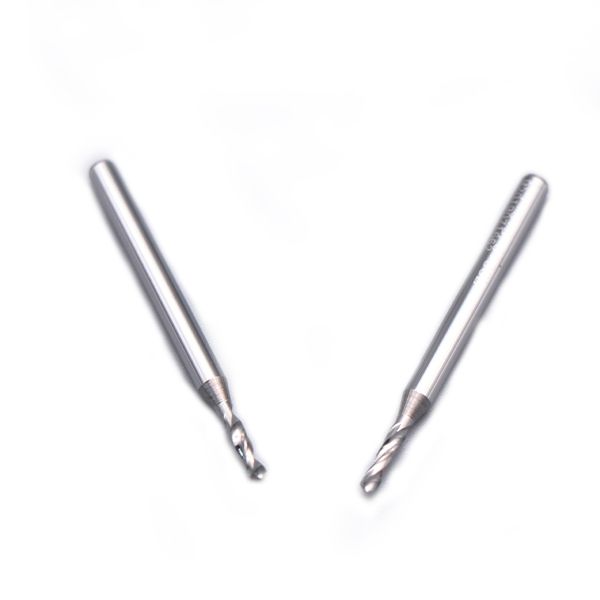

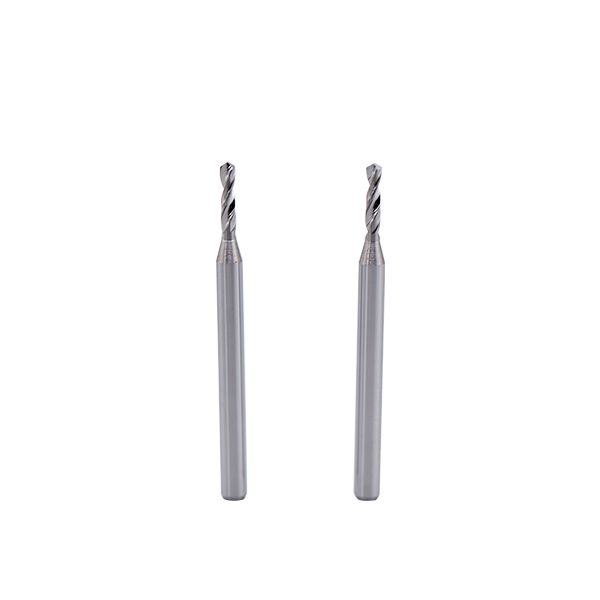

Solid Carbide Drill Bits 3.0mm/3.175mm

Solid Carbide Drill Bits 3.0mm/3.175mm, EMH16, EMH17

Inquiry

Work on aluminum, brass, bronze, fiberglass, hardened steel, iron, nickel, plastic, stainless steel, titanium, tool steel, etc.
Ideally suit for drilling through all hard metals
Ensure a steady hand when using these drills, ideally used at high speed in a pillar drill
EMH16 and EMH17 available respectively for center cutting and left hand cutting

Application

Unit: mm

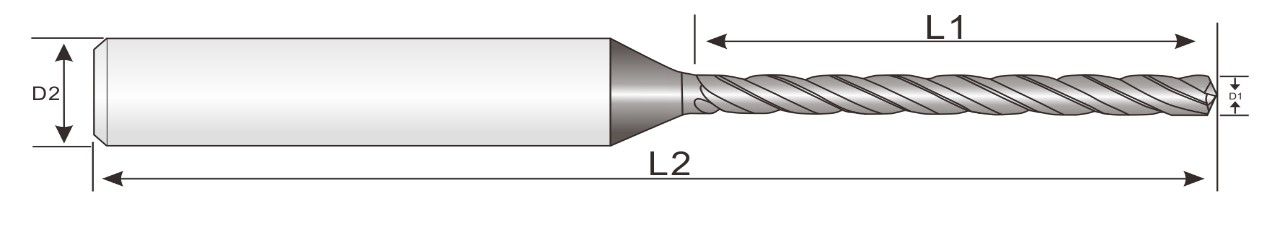

UNT EDP # Left hand Click to Order	Mill Dia. D1	Flute Length L1	O.A.L. L2	Flutes
EMH170050	0.5	3	38	2
EMH170060	0.6	4	38	2
EMH170070	0.7	4	38	2
EMH170080	0.8	4	38	2
EMH170085	0.85	5	38	2
EMH170090	0.9	5	38	2
EMH170095	0.95	5	38	2
EMH170100	1	6	38	2
EMH170105	1.05	7	38	2
EMH170115	1.15	7	38	2
EMH170120	1.2	8	38	2
EMH170125	1.25	8	38	2
EMH170130	1.3	8	38	2
EMH170135	1.35	8	38	2
EMH170140	1.4	9	38	2
EMH170145	1.45	9	38	2
EMH170150	1.5	9	38	2
EMH170155	1.55	10	38	2
EMH170160	1.6	10	38	2
EMH170165	1.65	10	38	2
EMH170170	1.7	10	38	2
EMH170175	1.75	11	38	2
EMH170180	1.8	11	38	2
EMH170185	1.85	11	38	2
EMH170190	1.9	11	38	2
EMH170195	1.95	12	38	2
EMH170200	2	12	38	2
EMH170205	2.05	12	38	2
EMH170210	2.1	12	38	2
EMH170215	2.15	13	38	2
EMH170220	2.2	13	38	2
EMH170225	2.25	13	38	2
EMH170230	2.3	13	38	2
EMH170235	2.35	14	38	2
EMH170240	2.4	14	38	2
EMH170245	2.45	14	38	2
EMH170250	2.5	14	38	2
EMH170255	2.55	14	38	2
EMH170260	2.6	14	38	2
EMH170265	2.65	16	38	2
EMH170270	2.7	16	38	2
EMH170275	2.75	16	38	2
EMH170280	2.8	16	38	2
EMH170285	2.85	16	38	2
EMH170290	2.9	16	38	2
EMH170295	2.95	16	38	2
EMH170300	3	16	38	2

• Drill bits with non-standard sizes or specifications not listed above can be customized according to customer needs.
