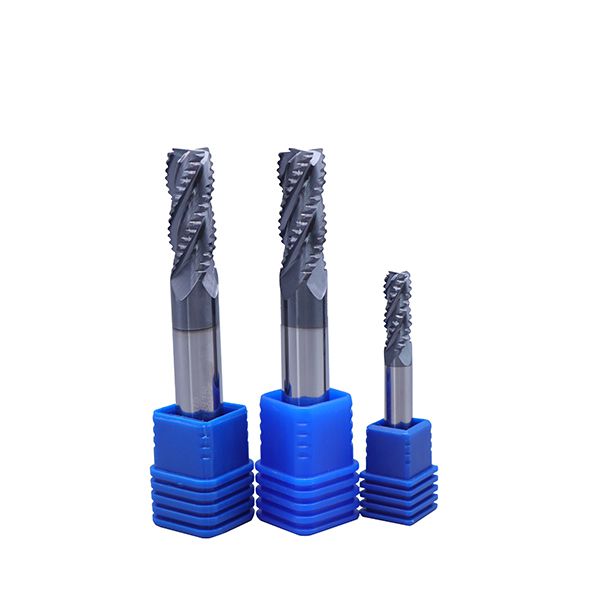

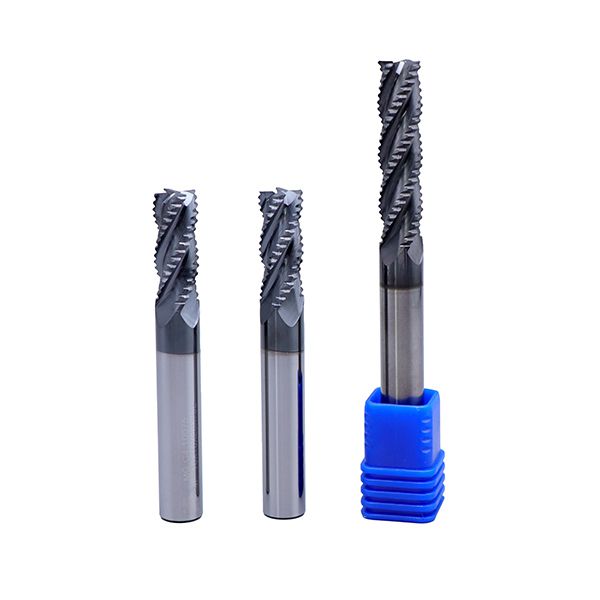

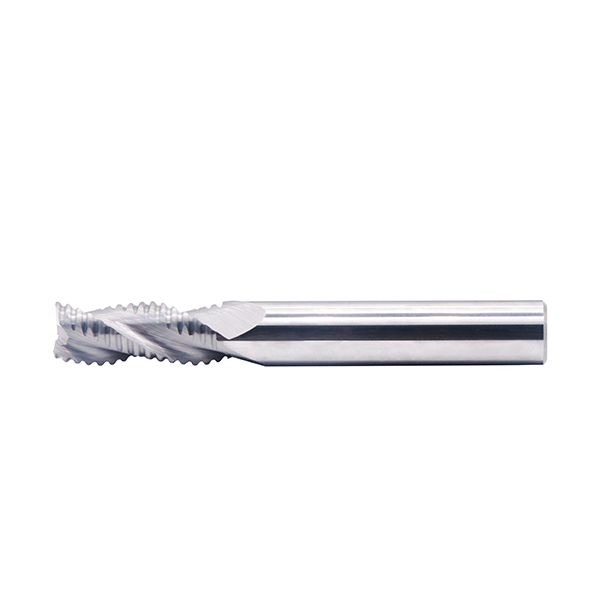

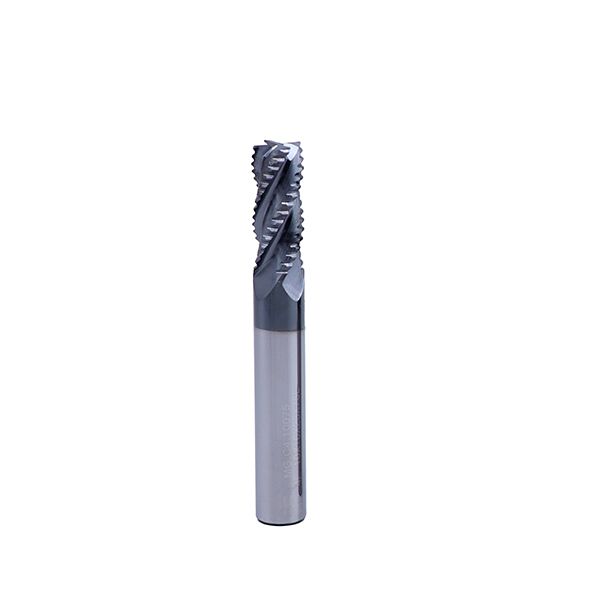

EMA17 Multi Flute Roughing End Mill
- Specially designed to cut prehardened steel, carbon steel, alloy steel up to HRC56
- Special tool geometry for high feed rate and heavy cutting
- Strong end tooth design for plunge and pocket milling
- For dry and wet milling
- Fast chip ejection

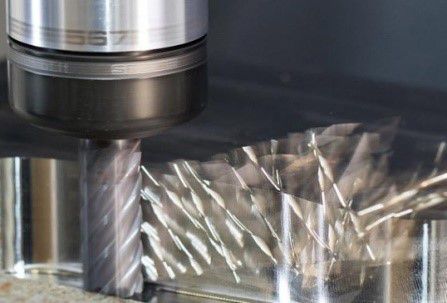

Application
Product Specifications
| Coating | AITiN /TiALN /TiAISiN AITiSiN |
HRC | HRC40/46/56/65 |
| Helix Angle | 35/36/37 | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, Multi Flute Roughing Tools, Short Length (EMA17）

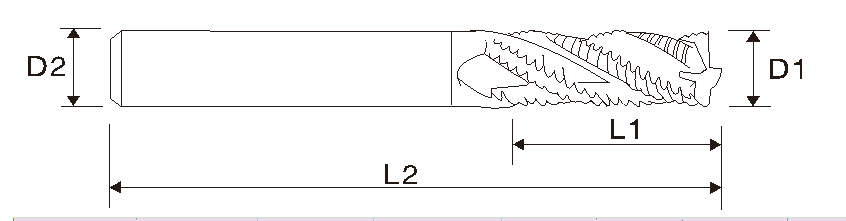

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes | ALTiN/TiN Coated |
Non-Coated |
| EMA17050050 | 5.0 | 6 | 13 | 50 | 4F/6F | ** | * |
| EMA17060050 | 6.0 | 6 | 16 | 50 | 4F/6F | ** | * |
| EMA17080060 | 8.0 | 8 | 20 | 60 | 4F/6F | ** | * |
| EMA17100075 | 10.0 | 10 | 25 | 75 | 4F/6F | ** | * |
| EMA17120075 | 12.0 | 12 | 30 | 75 | 4F/6F | ** | * |
| EMA17140100 | 14.0 | 14 | 40 | 100 | 4F/6F | ** | * |
| EMA17160100 | 16.0 | 16 | 40 | 100 | 4F/6F | ** | * |
| EMA17180100 | 18.0 | 18 | 40 | 100 | 4F/6F | ** | * |
| EMA17200100 | 20.0 | 20 | 40 | 100 | 4F/6F | ** | * |
| EMA17060100 | 6.0 | 6 | 30 | 100 | 4F/6F | ** | * |
| EMA17080100 | 8.0 | 8 | 35 | 100 | 4F/6F | ** | * |
| EMA17100100 | 10.0 | 10 | 40 | 100 | 4F/6F | ** | * |
| EMA17120120 | 12.0 | 12 | 45 | 100 | 4F/6F | ** | * |
| EMA17160160 | 16.0 | 16 | 60 | 150 | 4F/6F | ** | * |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
