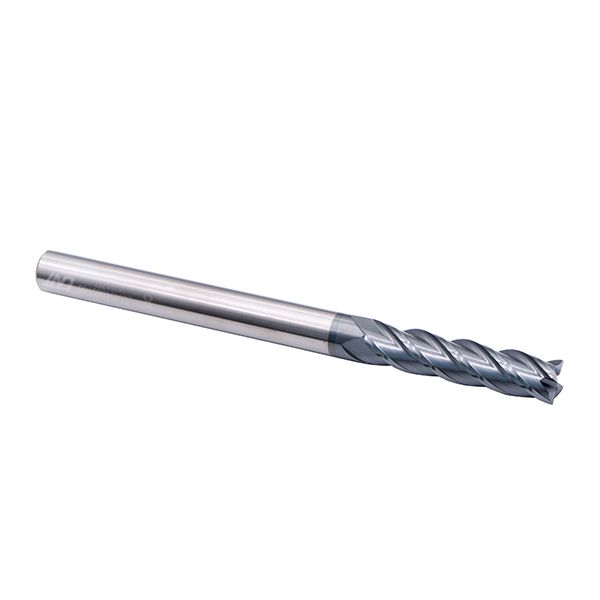

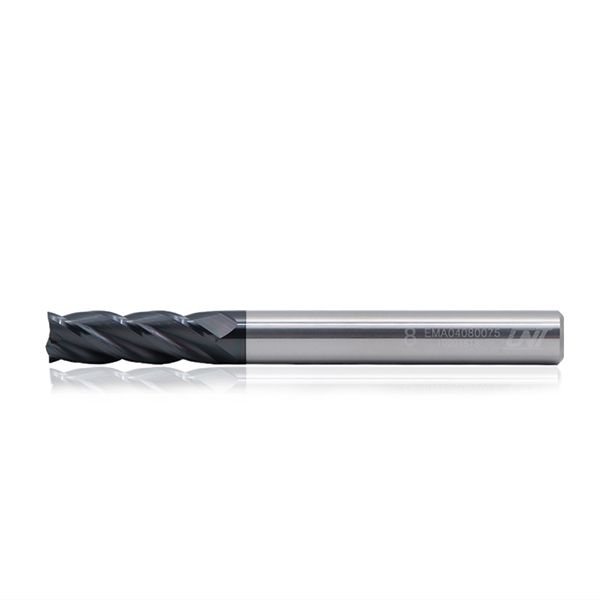

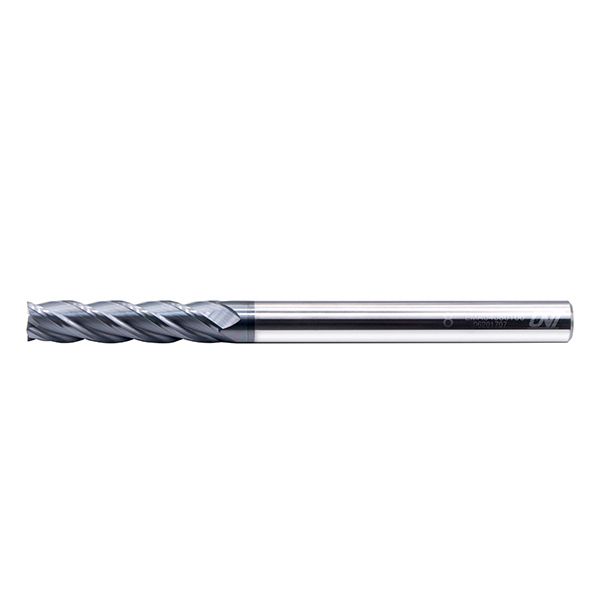

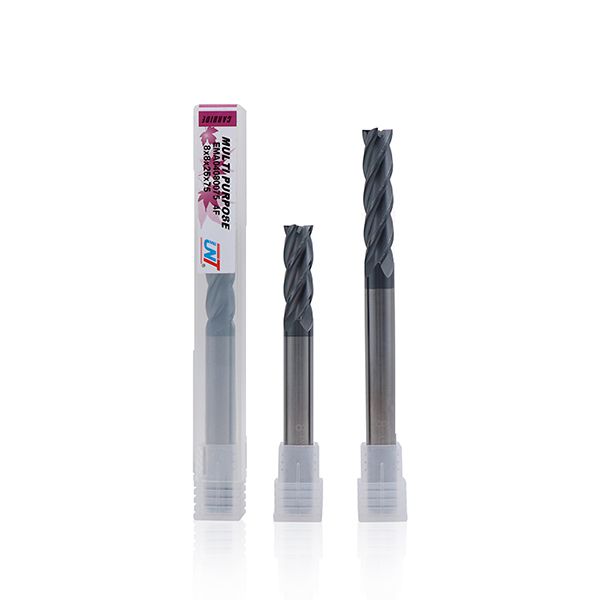

EMA04 4 Flute Square End Mill, Long Length
- Specially designed to cut prehardened steel, carbon steel, alloy steel up to HRC56
- Also suitable for machining stainless steel, titanium, inconel, and other high temperature alloys
- 4D flute, variable helix design (Approx. 37°) for improved slotting and roughing
- Oerlikon Balzers coating offers superior hardness and heat resistance
- Specialized flute shape for improved chip evacuation and maximum rigidity

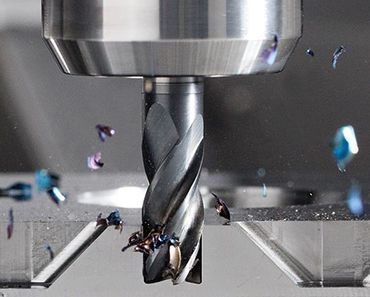

Application
Product Specifications
| Coating | AITiN /TiALN /TiAISiN AITiSiN |
HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, Square 4 Flutes End Mill, Long Length (UNT-EMA04)

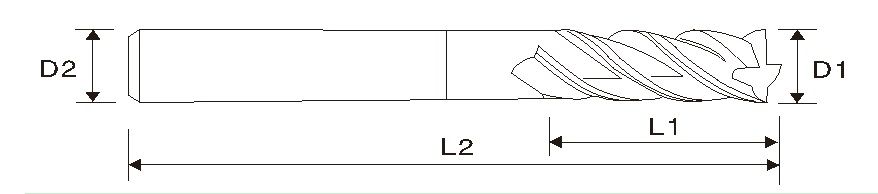

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMA04010075 | 1.0 | 4 | 5 | 75 | 4 |
| EMA04015075 | 1.5 | 4 | 6 | 75 | 4 |
| EMA04020075 | 2.0 | 4 | 8 | 75 | 4 |
| EMA04025075 | 2.5 | 4 | 8 | 75 | 4 |
| EMA04033075 | 3.0 | 3 | 8 | 75 | 4 |
| EMA04030075 | 3.0 | 4 | 10 | 75 | 4 |
| EMA04040075 | 4.0 | 4 | 12 | 100 | 4 |
| EMA04040100 | 4.0 | 4 | 12 | 75 | 4 |
| EMA04100756 | 1.0 | 6 | 5 | 75 | 4 |
| EMA04150756 | 1.5 | 6 | 6 | 75 | 4 |
| EMA04200756 | 2.0 | 6 | 8 | 75 | 4 |
| EMA04250756 | 2.5 | 6 | 8 | 75 | 4 |
| EMA04300756 | 3.0 | 6 | 10 | 75 | 4 |
| EMA04400756 | 4.0 | 6 | 12 | 75 | 4 |
| EMA04050100 | 5.0 | 6 | 16 | 100 | 4 |
| EMA04060075 | 6.0 | 6 | 25 | 75 | 4 |
| EMA04060100 | 6.0 | 6 | 30 | 100 | 4 |
| EMA04080075 | 8.0 | 8 | 25 | 75 | 4 |
| EMA04080100 | 8.0 | 8 | 35 | 100 | 4 |
| EMA04100100 | 10.0 | 10 | 40 | 100 | 4 |
| EMA04120100 | 12.0 | 12 | 45 | 100 | 4 |
| EMA04060150 | 6.0 | 6 | 35 | 150 | 4 |
| EMA04080150 | 8.0 | 8 | 40 | 150 | 4 |
| EMA04100150 | 10.0 | 10 | 50 | 150 | 4 |
| EMA04120150 | 12.0 | 12 | 50 | 150 | 4 |
| EMA04160150 | 16.0 | 16 | 70 | 150 | 4 |
| EMA04200150 | 20.0 | 20 | 70 | 150 | 4 |
