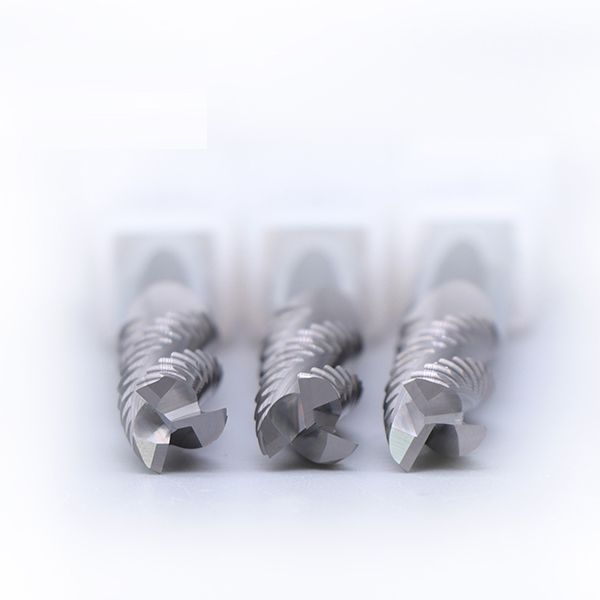

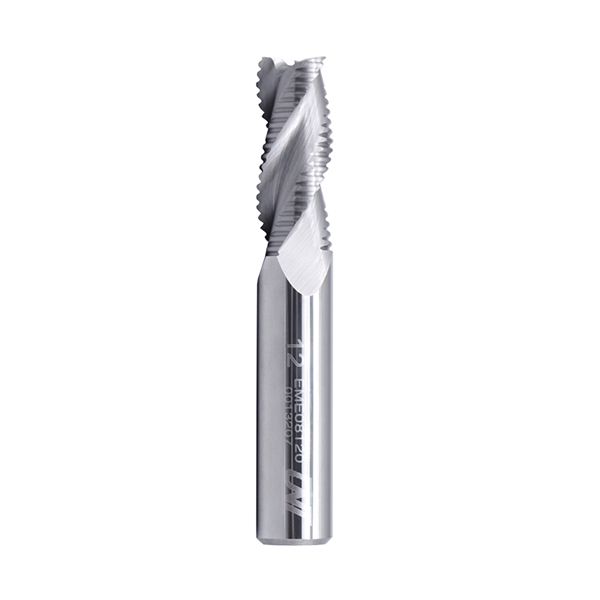

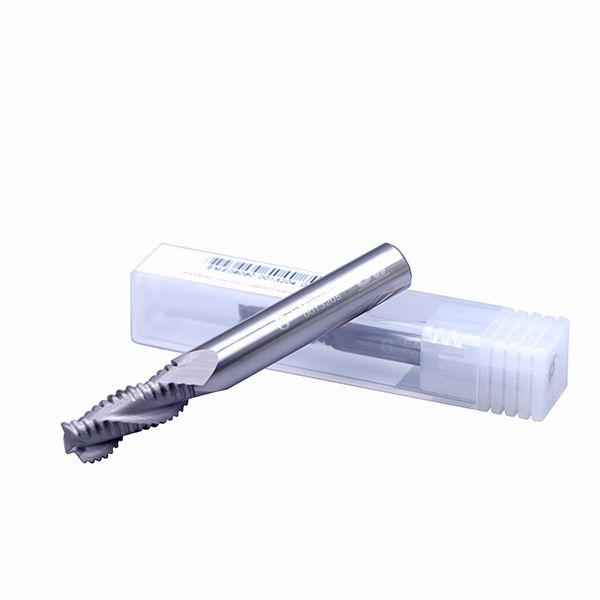

EME08 Carbide, 3 Flute Aluminum Rough End Mills
- High performance in machining aluminum alloy, copper alloy, graphite, resin and non-ferrous material
- 3 Flute roughing tooth profile to reduce cutting forces
- Special tool geometry for high feed rate and heavy cutting
- Rougher cutting

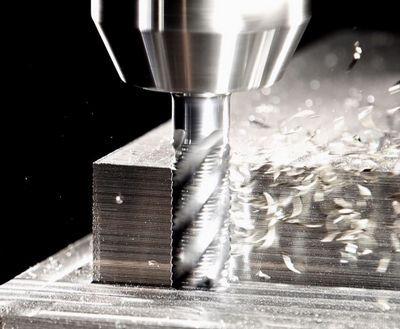

Application
Product Specifications
| Coating | Non-Coated or TiN, TiCN & TiAIN | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Solid Carbide End Mill for Aluminum, 3 Flute, Rougher Tools (UNT-EME08)

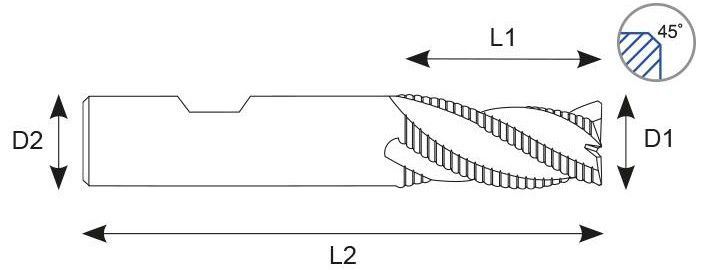

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EME0805050 | 5.0 | 6 | 13 | 50 | 3 |
| EME0806050 | 6.0 | 6 | 16 | 50 | 3 |
| EME0808060 | 8.0 | 8 | 20 | 60 | 3 |
| EME0810075 | 10.0 | 10 | 25 | 75 | 3 |
| EME0812075 | 12.0 | 12 | 30 | 75 | 3 |
| EME0814100 | 14.0 | 14 | 40 | 100 | 3 |
| EME0816100 | 16.0 | 16 | 40 | 100 | 3 |
| EME0820100 | 20.0 | 20 | 40 | 100 | 3 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
