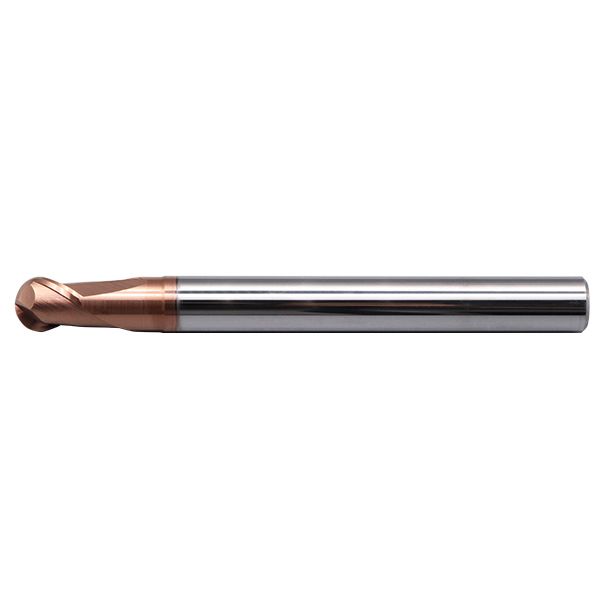

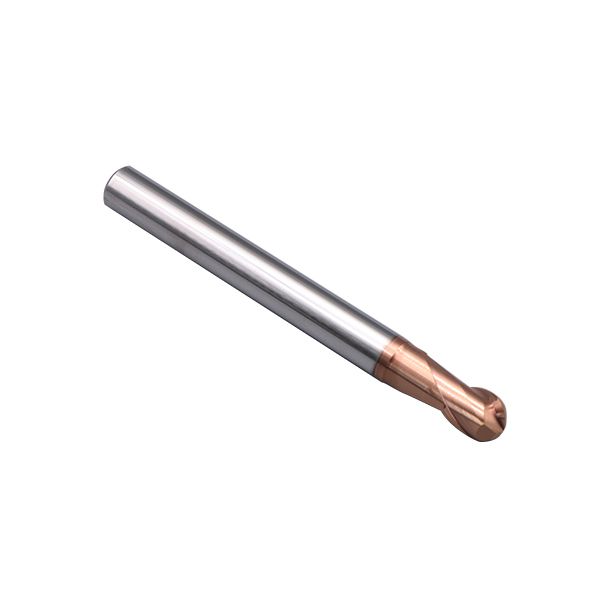

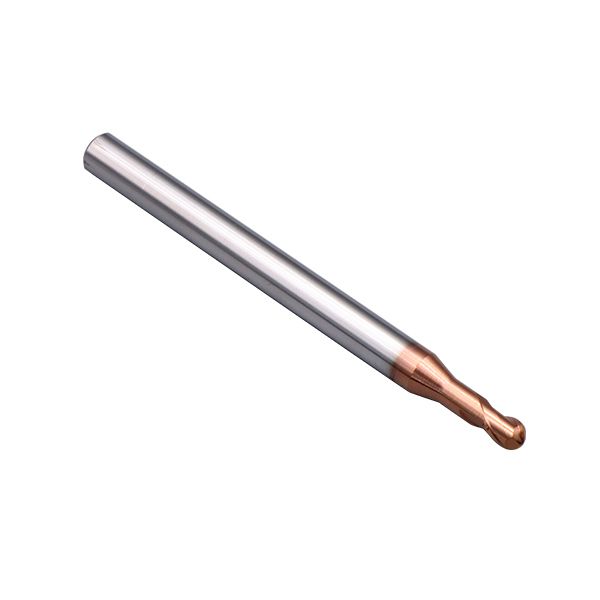

EMC06 X5070 Carbide Ball End Mill, Long Length
- Designed to machine tool steel, alloy steel, mold steel and other materials with hardness up to HRC70
- Oerlikon Balzers coating offers superior hardness and heat resistance
- Cutter Dia. down to 0.01mm
- Chamfer design for easy installation
- Used for profile milling and slotting
- Suitable for use in copying machines

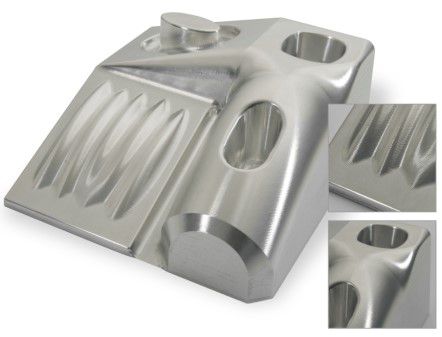

Application
Product Specifications
| Coating | AITISIN | HRC | HRC50/65/70 |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
X5070 Carbide Ball End Mills for High Hardened Steel, Long Length（UNT-EMC06）

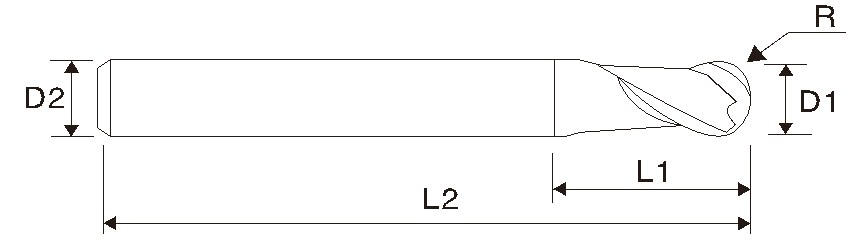

| UNT EDP # Click to Order | Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
Effective Length L3 |
O.A.L. L2 |
Flutes |
| EMC06010075 | R0.5 | 1.0 | 4 | 1.5 | 3 | 75 | 2 |
| EMC06015075 | R0.75 | 1.5 | 4 | 2 | 4 | 75 | 2 |
| EMC06020075 | R1.0 | 2.0 | 4 | 2.5 | 6 | 75 | 2 |
| EMC06030075 | R1.5 | 3.0 | 4 | 4 | 9 | 75 | 2 |
| EMC06040075 | R2.0 | 4.0 | 4 | 5 | 12 | 75 | 2 |
| EMC060100756 | R0.5 | 1.0 | 6 | 1.5 | 3 | 75 | 2 |
| EMC060150756 | R0.75 | 1.5 | 6 | 2 | 4 | 75 | 2 |
| EMC060200756 | R1.0 | 2.0 | 6 | 2.5 | 6 | 75 | 2 |
| EMC060300756 | R1.5 | 3.0 | 6 | 4 | 9 | 75 | 2 |
| EMC060400756 | R2.0 | 4.0 | 6 | 5 | 12 | 75 | 2 |
| EMC06050075 | R2.5 | 5.0 | 6 | 6 | 15 | 75 | 2 |
| EMC06060075 | R3.0 | 6.0 | 6 | 7 | 15 | 75 | 2 |
| EMC06060100 | R3.0 | 6.0 | 6 | 7 | 18 | 100 | 2 |
| EMC06080075 | R4.0 | 8.0 | 8 | 9 | 20 | 75 | 2 |
| EMC06080100 | R4.0 | 8.0 | 8 | 9 | 24 | 100 | 2 |
| EMC06100100 | R5.0 | 10.0 | 10 | 11 | 25 | 100 | 2 |
| EMC06120100 | R6.0 | 12.0 | 12 | 14 | 30 | 100 | 2 |
| EMC06080150 | R4.0 | 8.0 | 8 | 9 | 24 | 150 | 2 |
| EMC06100150 | R5.0 | 10.0 | 10 | 11 | 30 | 150 | 2 |
| EMC06120150 | R6.0 | 12.0 | 12 | 14 | 36 | 150 | 2 |
| EMC06160150 | R8.0 | 16.0 | 16 | 18 | 48 | 150 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
