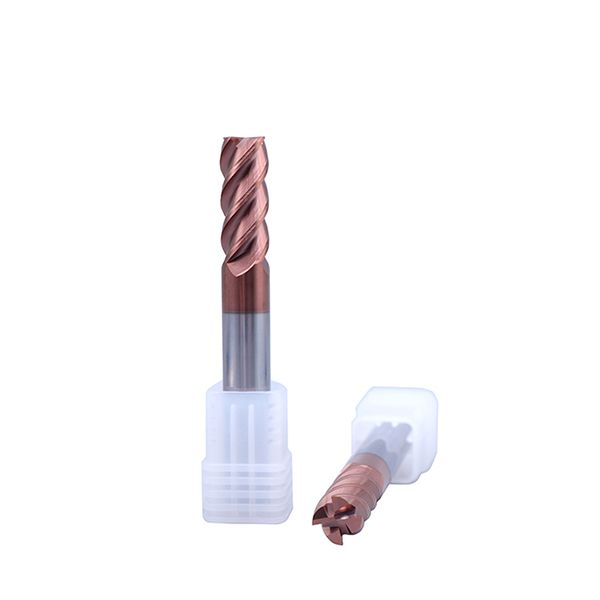

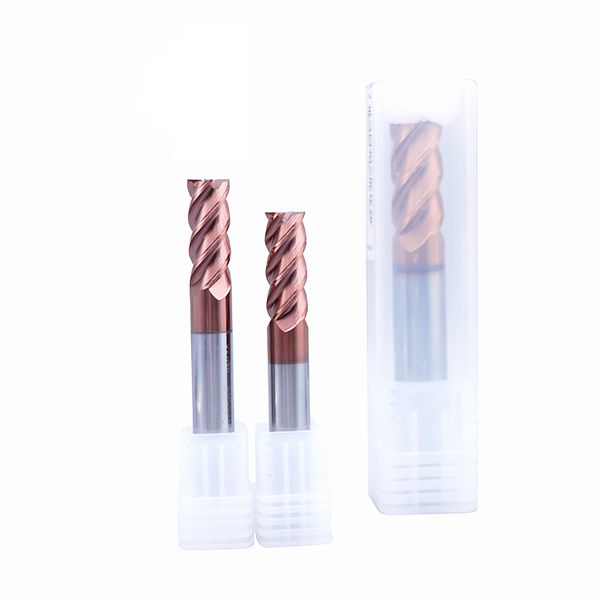

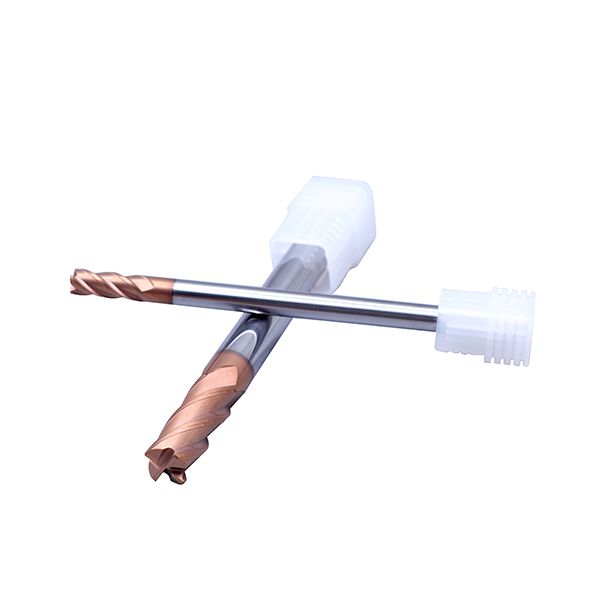

EMB10 4 Flute Corner Radius End Mill, Long Length
Product Specifications
| Coating | AITiN | HRC | HRC50/65 |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
HRC65 Carbide 4 Flute Radius End Mills, Long Length (UNT-EMB10)

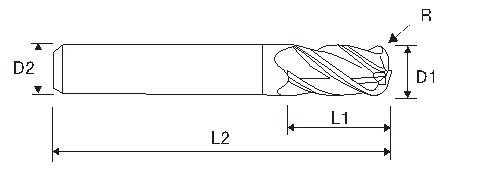

| UNT EDP # Click to Order | Corner Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMB100605 | R0.5 | 6.0 | 6 | 16 | 100 | 4 |
| EMB100610 | R1.0 | 6.0 | 6 | 16 | 100 | 4 |
| EMB100615 | R1.5 | 6.0 | 6 | 16 | 100 | 4 |
| EMB100620 | R2.0 | 6.0 | 6 | 16 | 100 | 4 |
| EMB108005 | R0.5 | 8.0 | 8 | 20 | 100 | 4 |
| EMB108010 | R1.0 | 8.0 | 8 | 20 | 100 | 4 |
| EMB108015 | R1.5 | 8.0 | 8 | 20 | 100 | 4 |
| EMB108020 | R2.0 | 8.0 | 8 | 20 | 100 | 4 |
| EMB101005 | R0.5 | 10.0 | 10 | 25 | 100 | 4 |
| EMB101010 | R1.0 | 10.0 | 10 | 25 | 100 | 4 |
| EMB101015 | R1.5 | 10.0 | 10 | 25 | 100 | 4 |
| EMB101020 | R2.0 | 10.0 | 10 | 25 | 100 | 4 |
| EMB101030 | R3.0 | 10.0 | 10 | 25 | 100 | 4 |
| EMB101205 | R0.5 | 12.0 | 12 | 30 | 100 | 4 |
| EMB101210 | R1.0 | 12.0 | 12 | 30 | 100 | 4 |
| EMB101215 | R1.5 | 12.0 | 12 | 30 | 100 | 4 |
| EMB101220 | R2.0 | 12.0 | 12 | 30 | 100 | 4 |
| EMB101230 | R3.0 | 12.0 | 12 | 30 | 100 | 4 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
