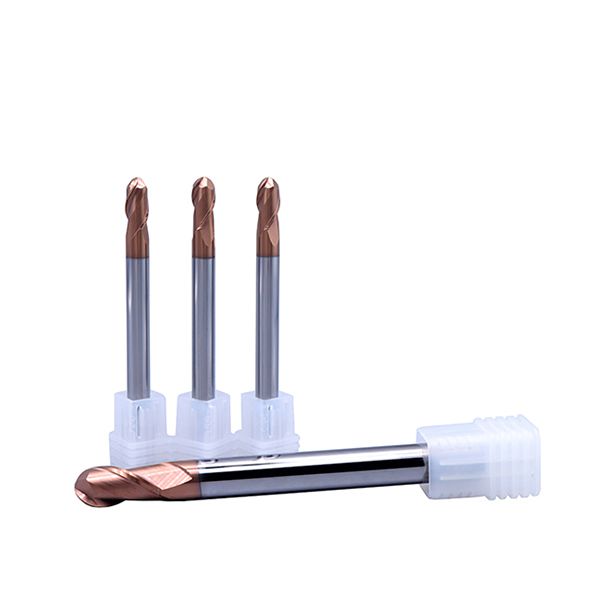

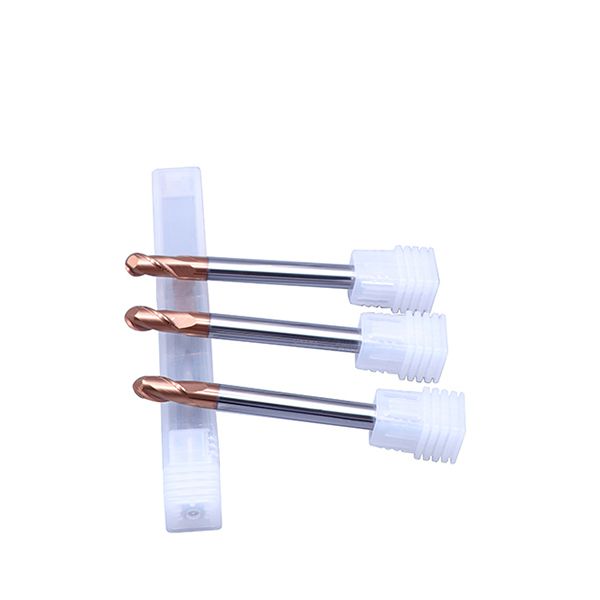

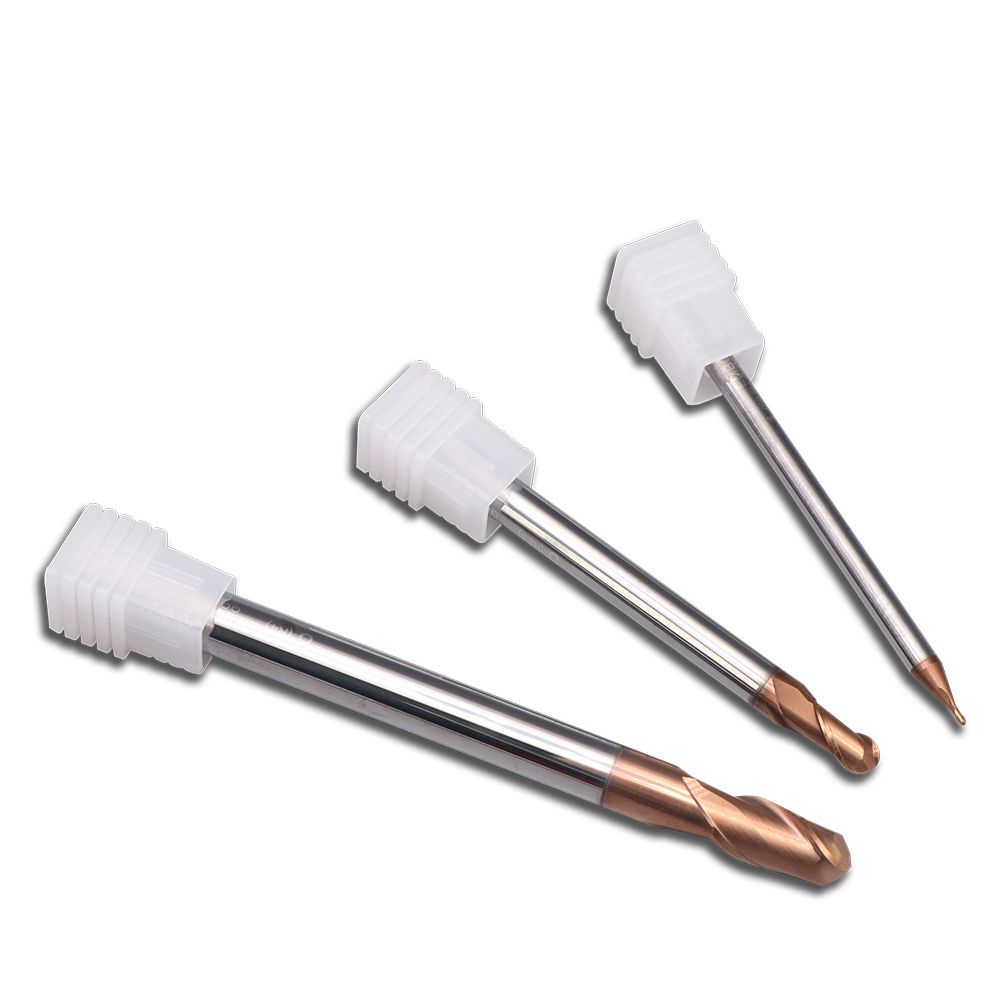

EMB06 Carbide Ball End Mill, Long Length
Product Specifications
| Coating | AITiN | HRC | HRC50/65 |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
HRC65 Carbide Ball End Mills, Long Length (UNT-EMB06)

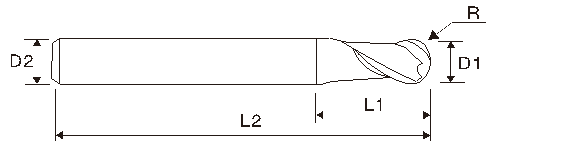

| UNT EDP # Click to Order | Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMB06010075 | R0.5 | 1.0 | 4 | 2 | 75 | 2 |
| EMB06015075 | R0.75 | 1.5 | 4 | 3 | 75 | 2 |
| EMB06020075 | R1.0 | 2.0 | 4 | 4 | 75 | 2 |
| EMB06030075 | R1.5 | 3.0 | 4 | 6 | 75 | 2 |
| EMB06040075 | R2.0 | 4.0 | 4 | 8 | 100 | 2 |
| EMB06040100 | R2.0 | 4.0 | 4 | 8 | 75 | 2 |
| EMB060100756 | R0.5 | 1.0 | 6 | 2 | 75 | 2 |
| EMB060150756 | R0.75 | 1.5 | 6 | 3 | 75 | 2 |
| EMB060200756 | R1.0 | 2.0 | 6 | 4 | 75 | 2 |
| EMB060300756 | R1.5 | 3.0 | 6 | 6 | 75 | 2 |
| EMB060400756 | R2.0 | 4.0 | 6 | 8 | 75 | 2 |
| EMB060401006 | R2.0 | 4.0 | 6 | 8 | 100 | 2 |
| EMB06050100 | R2.5 | 5.0 | 6 | 10 | 100 | 2 |
| EMB06060075 | R3.0 | 6.0 | 6 | 12 | 75 | 2 |
| EMB06060100 | R3.0 | 6.0 | 6 | 12 | 100 | 2 |
| EMB06080100 | R4.0 | 8.0 | 8 | 16 | 100 | 2 |
| EMB06100100 | R5.0 | 10.0 | 10 | 20 | 100 | 2 |
| EMB06120100 | R6.0 | 12.0 | 12 | 24 | 100 | 2 |
| EMB06060150 | R3.0 | 6.0 | 6 | 12 | 150 | 2 |
| EMB06080150 | R4.0 | 8.0 | 8 | 16 | 150 | 2 |
| EMB06100150 | R4.0 | 10.0 | 10 | 20 | 150 | 2 |
| EMB06120150 | R6.0 | 12.0 | 12 | 24 | 150 | 2 |
| EMB06160150 | R8.0 | 16.0 | 16 | 32 | 150 | 2 |
| EMB06200150 | R10.0 | 20.0 | 20 | 40 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
