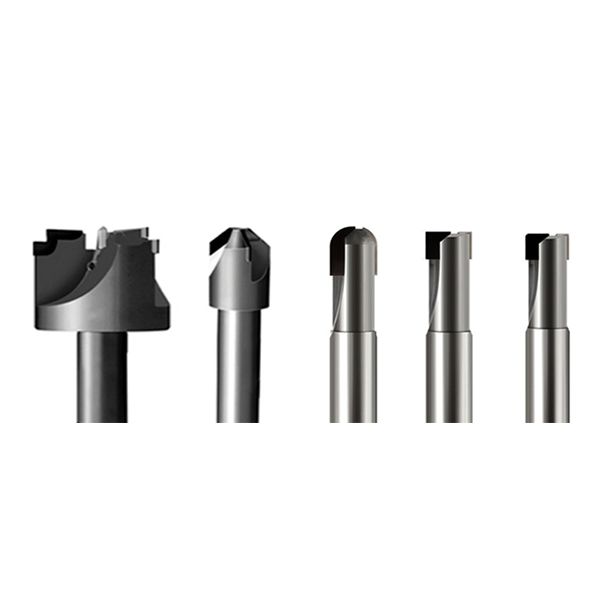

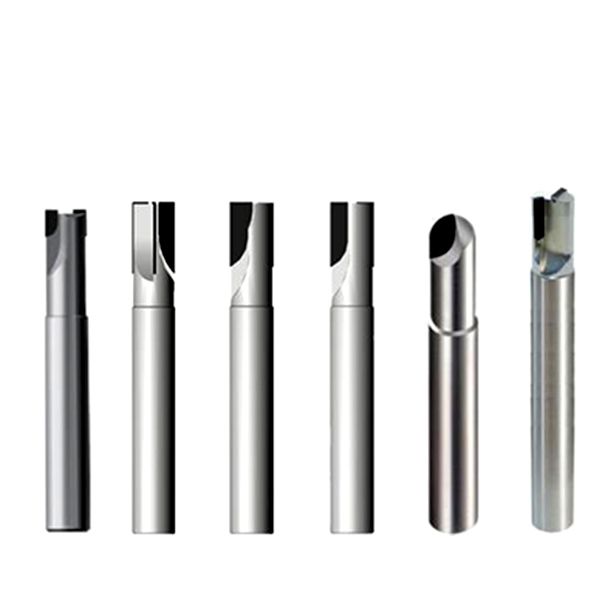

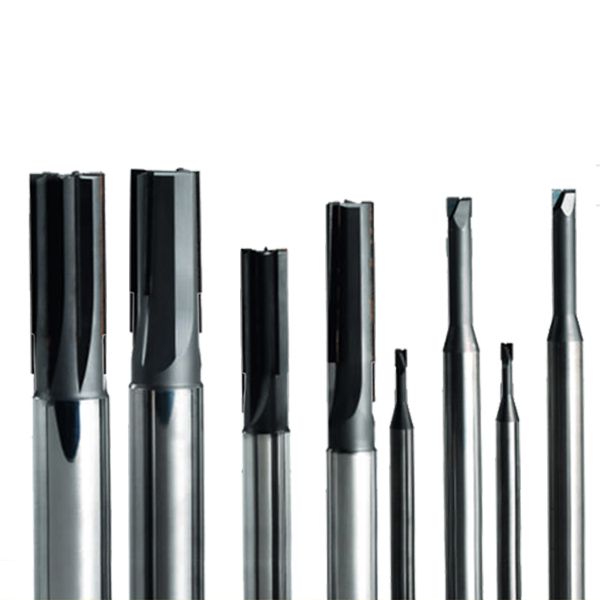

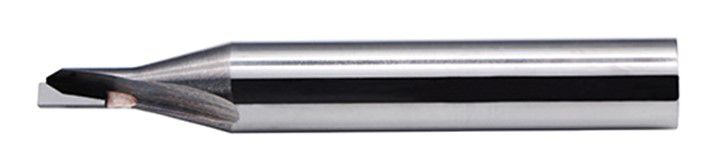

PCD Milling Cutter
- PCD milling cutters have a diamond coating with a hardness comparable to that of natural diamond
- Designed with extreme hardness for long life (10-50x) in graphite, composites & high silicon aluminum, plastic, wood; processed with the thickest diamond specially for graphite, carbon fibre and fibre glass
Product Specifications
| Coating | Diamond | Thickness | 0-5mm |
| Helix Angle | 35°/36°/37° | Finishing | Polished |
| Size | Multi sizes | Shape | Square |
Diamond Coated PCD Milling Tools, 2 Flute/4 Flute
| UNT EDP # Click to Order | Material Code |
Mill Dia. |
O.A.L. |
Flutes |
| D1 | L2 | |||
| |
D2H4-D4L8-F1 | 4 | 50 | Single Flute |
| |
D3H6-D4L10-F1 | 6 | 50 | Single Flute |
| |
D3H6-D4L10-F2 | 6 | 50 | Double Flute |
| |
D4H6-D4L14-F1 | 6 | 60 | Single Flute |
| |
D4H6-D414-F2 | 6 | 50 | Double Flute |
| |
D6H6-D6L20-F1 | 6 | 75 | Single Flute |
| |
D6H6-D6L20-F2 | 6 | 75 | Double Flute |
| |
D8H6-D8L32-F1 | 6 | 100 | Single Flute |
| |
D8H6-D8L32-F2 | 6 | 100 | Double Flute |
| |
D10H6-D10L40-F1 | 6 | 100 | Single Flute |
| |
D10H6-D10L40-F2 | 6 | 100 | Double Flute |
| |
D12H6-D12L50-F1 | 6 | 100 | Single Flute |
| |
D12H6-D12L50-F2 | 6 | 100 | Double Flute |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
