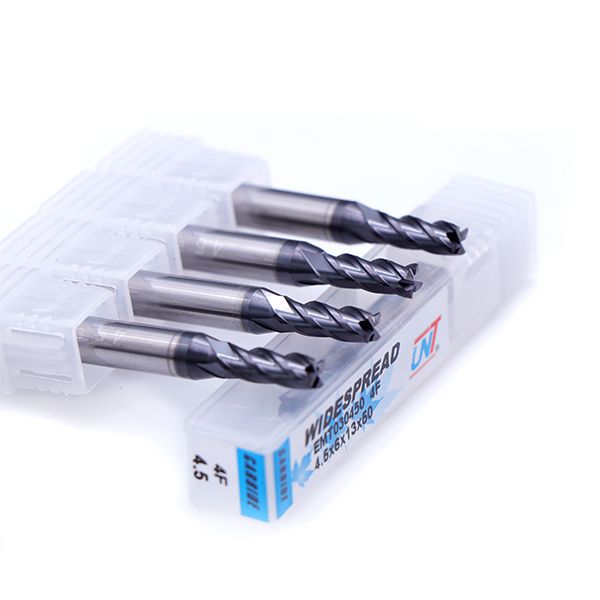

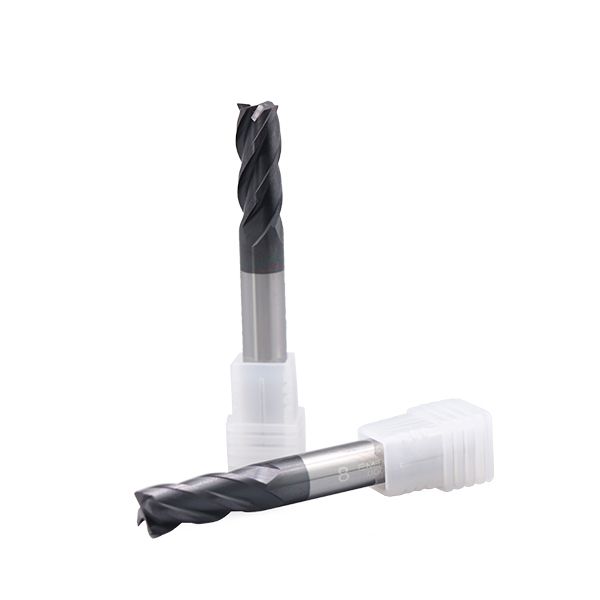

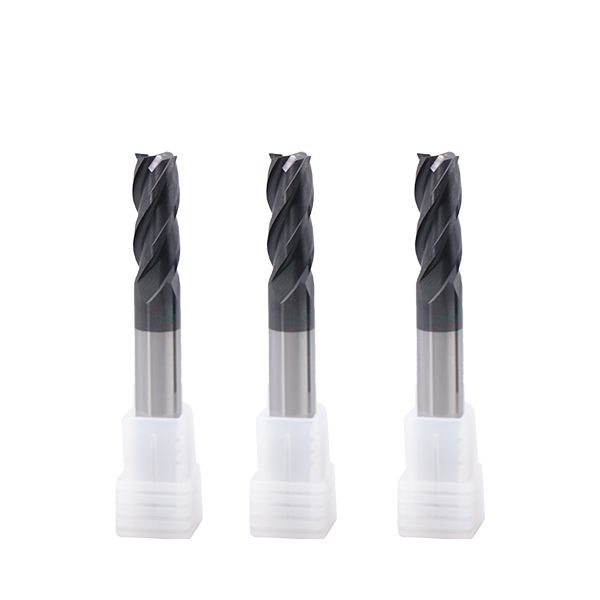

EMT03 4 Flute Carbide Square End Mill
- Designed for low hardness materials (under HRc45) such as alloy steel, inconel, tools steel, carbon steel, prehardened steel, stainless steel, titanium alloy
- Provides excellent surface finishes on the workpieces
- 4 Flutes square end mill with high rigidity is widely used in shallow slotting, profile milling, and finishing

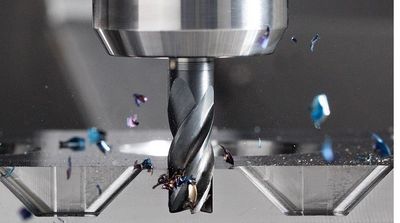

Application
Product Specifications
| Coating | AITiN /TiALN /TiSiN | HRC | HRC35/45 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide Square 4 Flutes (UNT-EMT03）- Universal and Economical Style

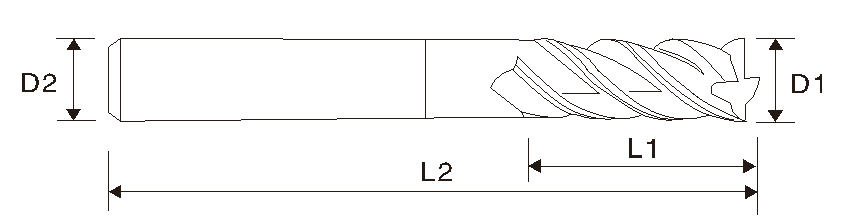

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| MET030103 | 1.0 | 3 | 3 | 50 | 4 |
| EMT030153 | 1.5 | 3 | 4 | 50 | 4 |
| EMT030203 | 2.0 | 3 | 6 | 50 | 4 |
| EMT030253 | 2.5 | 3 | 6 | 50 | 4 |
| EMT030303 | 3.0 | 3 | 8 | 50 | 4 |
| EMT030104 | 1.0 | 4 | 3 | 50 | 4 |
| EMT030114 | 1.1 | 4 | 4 | 50 | 4 |
| EMT030124 | 1.2 | 4 | 4 | 50 | 4 |
| EMT030134 | 1.3 | 4 | 4 | 50 | 4 |
| EMT030144 | 1.4 | 4 | 4 | 50 | 4 |
| EMT030154 | 1.5 | 4 | 6 | 50 | 4 |
| EMT030164 | 1.6 | 4 | 6 | 50 | 4 |
| EMT030174 | 1.7 | 4 | 6 | 50 | 4 |
| EMT030184 | 1.8 | 4 | 6 | 50 | 4 |
| EMT030194 | 1.9 | 4 | 6 | 50 | 4 |
| EMT030204 | 2.0 | 4 | 6 | 50 | 4 |
| EMT030254 | 2.5 | 4 | 6 | 50 | 4 |
| EMT030304 | 3.0 | 4 | 6 | 50 | 4 |
| EMT030354 | 3.5 | 4 | 6 | 50 | 4 |
| EMT030404 | 4.0 | 4 | 6 | 50 | 4 |
| EMT030106 | 1.0 | 6 | 6 | 50 | 4 |
| EMT030156 | 1.5 | 6 | 6 | 50 | 4 |
| EMT030206 | 2.0 | 6 | 6 | 50 | 4 |
| EMT030216 | 2.1 | 6 | 6 | 50 | 4 |
| EMT030226 | 2.2 | 6 | 6 | 50 | 4 |
| EMT030236 | 2.3 | 6 | 6 | 50 | 4 |
| EMT030246 | 2.4 | 6 | 6 | 50 | 4 |
| EMT030256 | 2.5 | 6 | 6 | 50 | 4 |
| EMT030266 | 2.6 | 6 | 8 | 50 | 4 |
| EMT030276 | 2.7 | 6 | 8 | 50 | 4 |
| EMT030286 | 2.8 | 6 | 8 | 50 | 4 |
| EMT030296 | 2.9 | 6 | 8 | 50 | 4 |
| EMT030306 | 3.0 | 6 | 8 | 50 | 4 |
| EMT030326 | 3.2 | 6 | 10 | 50 | 4 |
| EMT030356 | 3.5 | 6 | 10 | 50 | 4 |
| EMT030406 | 4.0 | 6 | 11 | 50 | 4 |
| EMT030456 | 4.5 | 6 | 13 | 50 | 4 |
| EMT030486 | 4.8 | 6 | 13 | 50 | 4 |
| EMT030506 | 5.0 | 6 | 13 | 50 | 4 |
| EMT030556 | 5.5 | 6 | 16 | 50 | 4 |
| EMT030606 | 6.0 | 6 | 20 | 50 | 4 |
| EMT030658 | 6.5 | 8 | 20 | 60 | 4 |
| EMT030708 | 7.0 | 8 | 20 | 60 | 4 |
| EMT030758 | 7.5 | 8 | 20 | 60 | 4 |
| EMT030808 | 8.0 | 8 | 20 | 60 | 4 |
| EMT030858 | 8.5 | 10 | 25 | 75 | 4 |
| EMT030908 | 9.0 | 10 | 25 | 75 | 4 |
| EMT030958 | 9.5 | 10 | 25 | 75 | 4 |
| EMT030108 | 10.0 | 10 | 25 | 75 | 4 |
| EMT030118 | 11.0 | 12 | 30 | 75 | 4 |
| EMT030128 | 12.0 | 12 | 30 | 75 | 4 |
| EMT030148 | 14.0 | 14 | 40 | 100 | 4 |
| EMT030168 | 16.0 | 16 | 40 | 100 | 4 |
| EMT030188 | 18.0 | 18 | 40 | 100 | 4 |
| EMT030208 | 20.0 | 20 | 40 | 100 | 4 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
