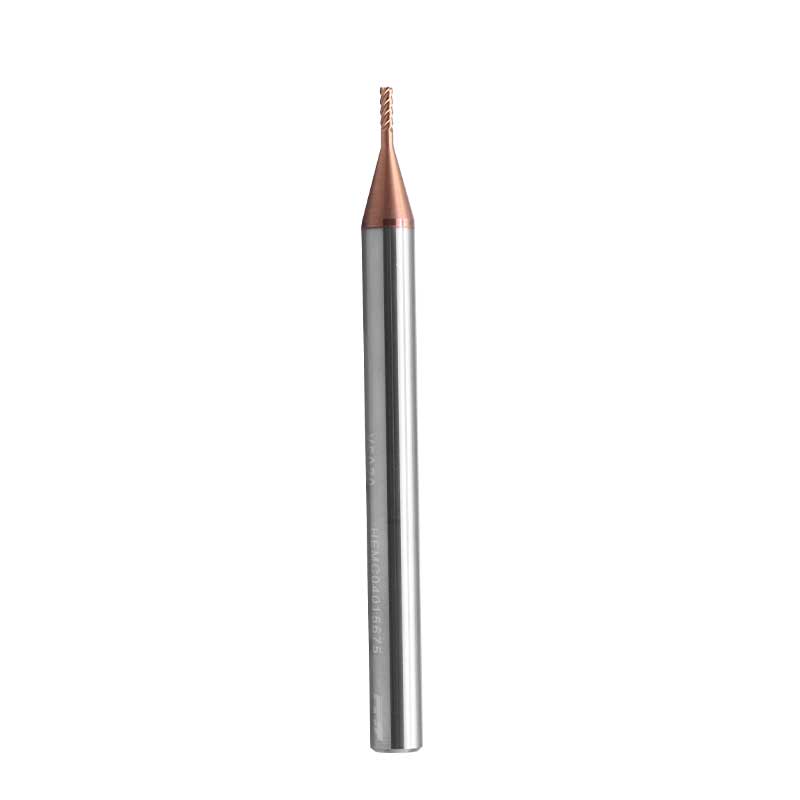

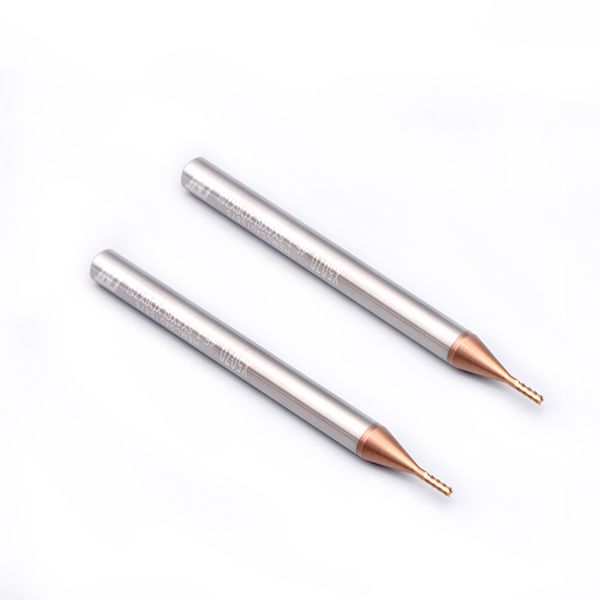

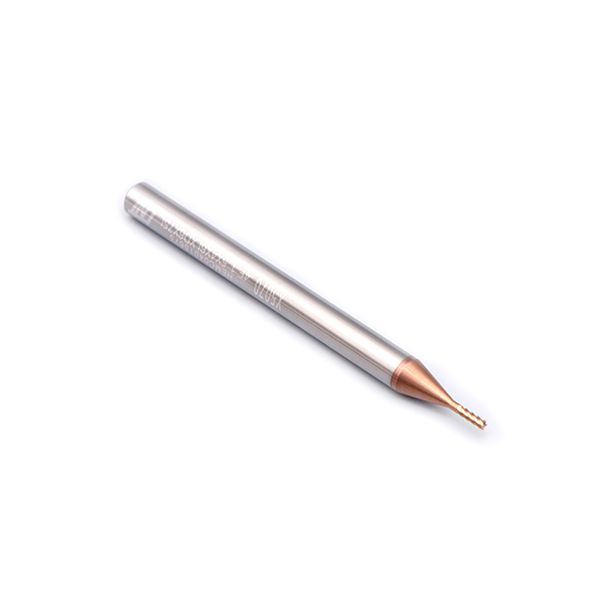

Coating | AITISIN | HRC | HRC50/65/70 |
Helix Angle | 45° | Shank | Cylindrical H6 |
Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |

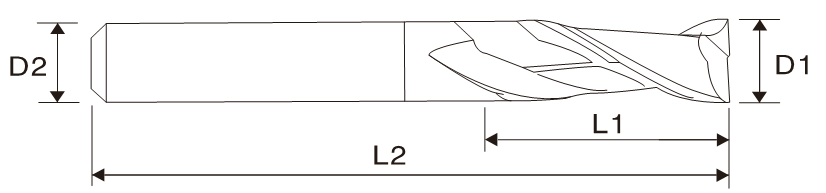

UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
Effective Length L3 |
O.A.L. L2 |
Flutes |
EMC010024 | 0.2 | 4 | 0.4 | 0.4 | 50 | 2 |
EMC010034 | 0.3 | 4 | 0.6 | 0.6 | 50 | 2 |
EMC010044 | 0.4 | 4 | 0.8 | 0.8 | 50 | 2 |
EMC010054 | 0.5 | 4 | 1 | 1 | 50 | 2 |
EMC010064 | 0.6 | 4 | 1.2 | 1.2 | 50 | 2 |
EMC010074 | 0.7 | 4 | 1.4 | 1.4 | 50 | 2 |
EMC010084 | 0.8 | 4 | 1.6 | 1.6 | 50 | 2 |
EMC010094 | 0.9 | 4 | 1.8 | 1.8 | 50 | 2 |
EMC010104 | 1.0 | 4 | 2 | 3 | 50 | 2 |
EMC010154 | 1.5 | 4 | 3 | 4 | 50 | 2 |
EMC010204 | 2.0 | 4 | 4 | 6 | 50 | 2 |
EMC010254 | 2.5 | 4 | 5 | 6 | 50 | 2 |
EMC010304 | 3.0 | 4 | 6 | 8 | 50 | 2 |
EMC010354 | 3.5 | 4 | 7 | 10 | 50 | 2 |
EMC010404 | 4.0 | 4 | 8 | 11 | 50 | 2 |
EMC010106 | 1.0 | 6 | 2 | 3 | 60 | 2 |
EMC010156 | 1.5 | 6 | 3 | 4 | 60 | 2 |
EMC010206 | 2.0 | 6 | 4 | 6 | 60 | 2 |
EMC010256 | 2.5 | 6 | 5 | 6 | 60 | 2 |
EMC010306 | 3.0 | 6 | 6 | 9 | 60 | 2 |
EMC010356 | 3.5 | 6 | 7 | 10 | 60 | 2 |
EMC010406 | 4.0 | 6 | 8 | 12 | 60 | 2 |
EMC010450 | 4.5 | 6 | 9 | 13 | 60 | 2 |
EMC010500 | 5.0 | 6 | 10 | 13 | 60 | 2 |
EMC010550 | 5.5 | 6 | 11 | 16 | 60 | 2 |
EMC010600 | 6.0 | 6 | 12 | 16 | 60 | 2 |
EMC010650 | 6.5 | 8 | 14 | 20 | 60 | 2 |
EMC010700 | 7.0 | 8 | 14 | 20 | 60 | 2 |
EMC010750 | 7.5 | 8 | 15 | 20 | 60 | 2 |
EMC010800 | 8.0 | 8 | 16 | 20 | 60 | 2 |
EMC010850 | 8.5 | 10 | 17 | 25 | 75 | 2 |
EMC010900 | 9.0 | 10 | 18 | 25 | 75 | 2 |
EMC010950 | 9.5 | 10 | 19 | 25 | 75 | 2 |
EMC011000 | 10.0 | 10 | 20 | 25 | 75 | 2 |
EMC011050 | 10.5 | 12 | 21 | 30 | 75 | 2 |
EMC011100 | 11.0 | 12 | 22 | 30 | 75 | 2 |
EMC011200 | 12.0 | 12 | 24 | 30 | 75 | 2 |
EMC011600 | 16.0 | 16 | 32 | 40 | 100 | 2 |
EMC011800 | 18.0 | 18 | 36 | 40 | 100 | 2 |
EMC012000 | 20.0 | 20 | 40 | 45 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
