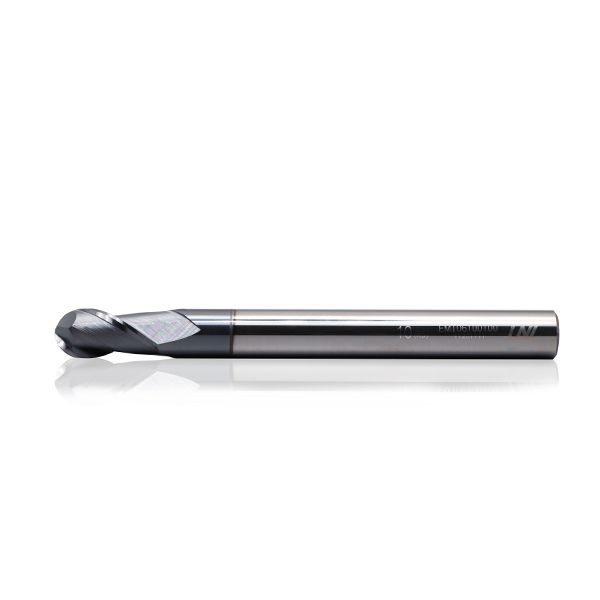

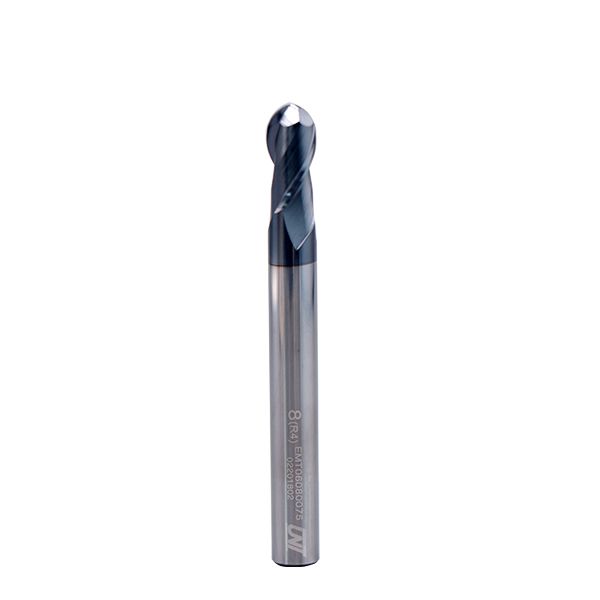

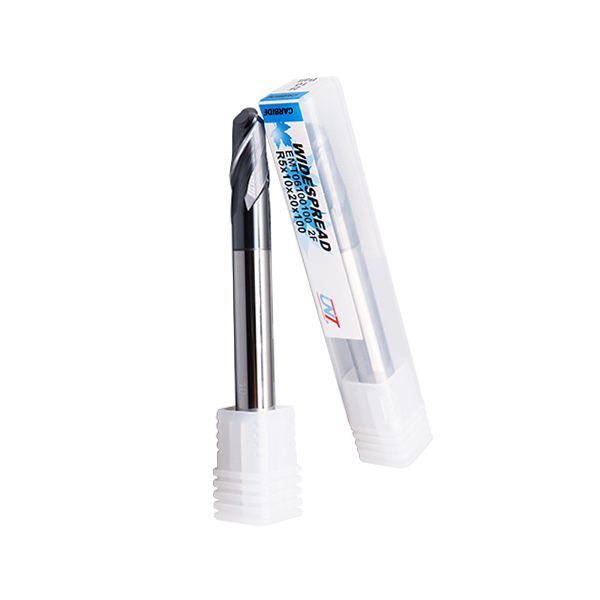

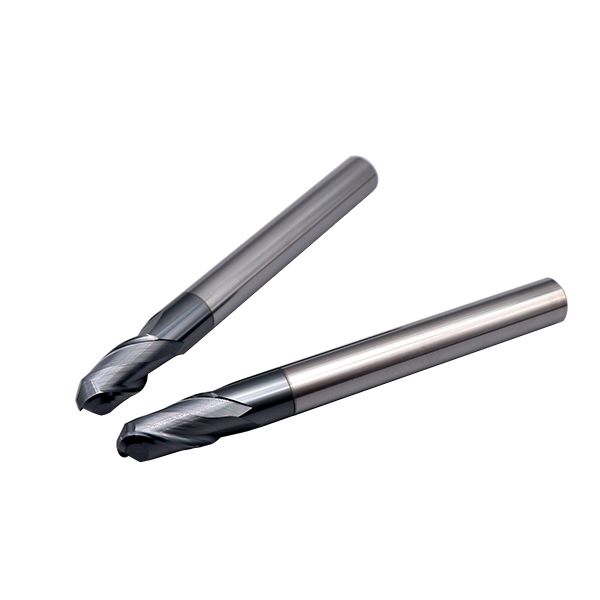

EMT06 2 Flute Carbide Ball Nose End Mill, Long Length
- Designed for low hardness materials (under HRc45) such as alloy steel, inconel, tools steel, carbon steel, prehardened steel, stainless steel, titanium alloy
- 4D flute, variable helix design (Approx, 37°) for improved slotting and roughing.
- Cutter Dia. down to 0.01mm
- Used for profile milling and slotting
- Chamfer design for easy installation

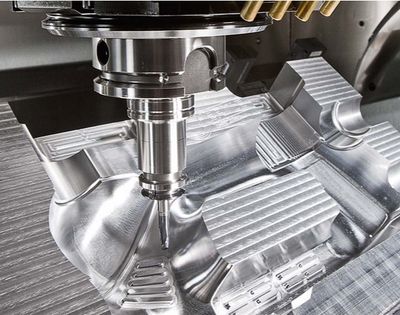

Application
Product Specifications
| Coating | AITiN /TiALN /TiSiN | HRC | HRC35/45 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, 2 Flute Ball Nose End Mill - Long Length, for Copy Milling (UNT-EMT06)

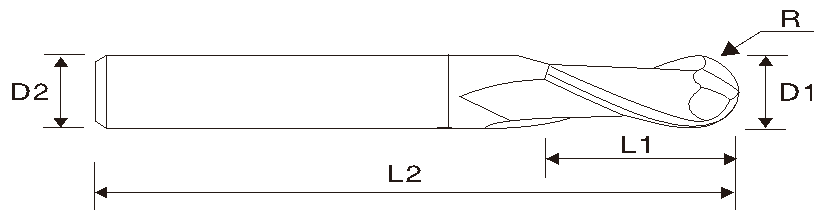

| UNT EDP # Click to Order | Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMT06010075 | 1.0 | R0.5 | 4 | 2 | 75 | 2 |
| EMT06015075 | 1.5 | R0.75 | 4 | 3 | 75 | 2 |
| EMT06020075 | 2.0 | R1.0 | 4 | 4 | 75 | 2 |
| EMT06030075 | 3.0 | R1.5 | 4 | 6 | 75 | 2 |
| EMT06040075 | 4.0 | R2.0 | 4 | 8 | 75 | 2 |
| EMT06040100 | 4.0 | R2.0 | 4 | 8 | 100 | 2 |
| EMT060100756 | 1.0 | R0.5 | 6 | 2 | 75 | 2 |
| EMT060150756 | 1.5 | R0.75 | 6 | 3 | 75 | 2 |
| EMT060200756 | 2.0 | R1.0 | 6 | 4 | 75 | 2 |
| EMT060300756 | 3.0 | R1.5 | 6 | 6 | 75 | 2 |
| EMT060400756 | 4.0 | R2.0 | 6 | 8 | 75 | 2 |
| EMT06050075 | 5.0 | R2.5 | 6 | 10 | 75 | 2 |
| EMT06050100 | 5.0 | R2.5 | 6 | 10 | 100 | 2 |
| EMT06060075 | 6.0 | R3.0 | 6 | 12 | 75 | 2 |
| EMT06060100 | 6.0 | R3.0 | 6 | 12 | 100 | 2 |
| EMT06080075 | 8.0 | R4.0 | 8 | 16 | 75 | 2 |
| EMT06080100 | 8.0 | R4.0 | 8 | 16 | 100 | 2 |
| EMT06100100 | 10.0 | R5.0 | 10 | 20 | 100 | 2 |
| EMT06120100 | 12.0 | R6.0 | 12 | 24 | 100 | 2 |
| EMT06060150 | 6.0 | R3.0 | 6 | 12 | 150 | 2 |
| EMT06080150 | 8.0 | R4.0 | 8 | 16 | 150 | 2 |
| EMT06100150 | 10.0 | R5.0 | 10 | 20 | 150 | 2 |
| EMT06120150 | 12.0 | R6.0 | 12 | 24 | 150 | 2 |
| EMT06160150 | 16.0 | R8.0 | 16 | 32 | 150 | 2 |
| EMT06200150 | 20.0 | R10.0 | 20 | 40 | 150 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
