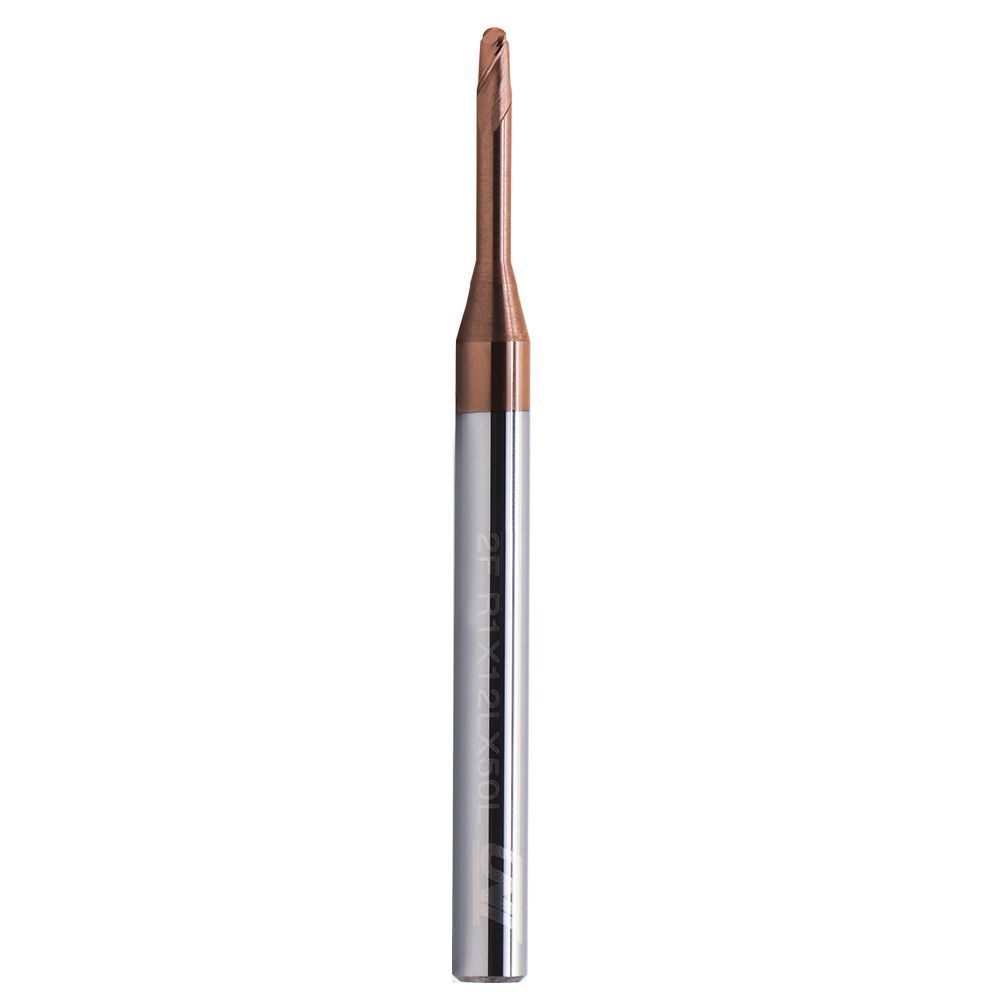

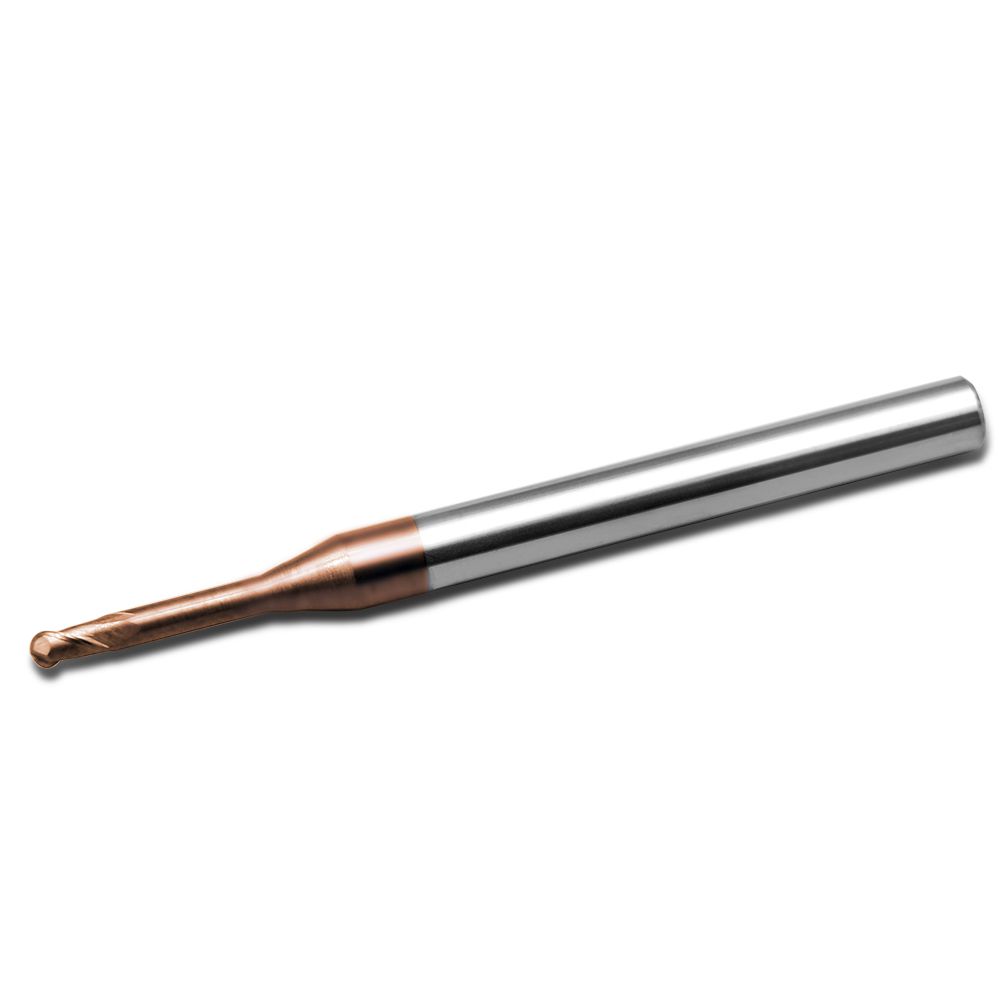

EMC12 X5070 2 Flute Micro Ball End Mill
- Provides excellent performance when cutting tool steels, alloy steels with hardness up to HRc70
- Used for machining molds & dies
- Super micro end mills are available with diameters ranging from 0.02~2.9mm Radius
- 2 flute long neck design for machining deep cavity, deep slotting and deep pocketing

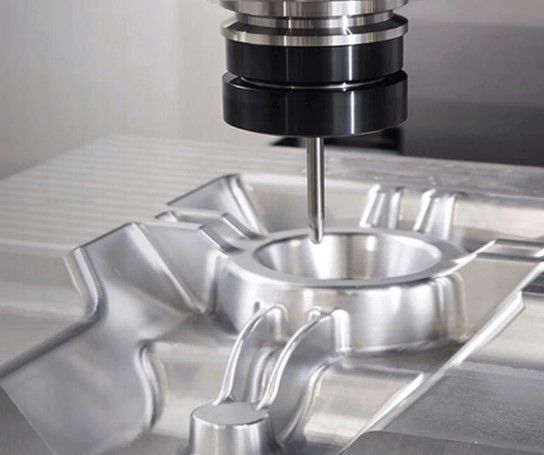

Application
Product Specifications
| Coating | AITISIN | HRC | HRC50/65/70 |
| Helix Angle | 30°/35° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
X5070 Carbide Ball End Mill, 2 Flute, Long Length - for RIB Processing（UNT-EMC12）

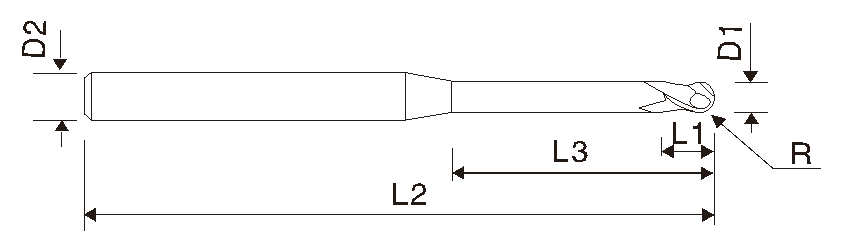

| UNT EDP # Click to Order | Radius R |
Effective Length L3 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMC120402 | R0.2 | 2 | 4 | 0.5 | 50 | 2 |
| EMC120404 | R0.2 | 4 | 4 | 0.5 | 50 | 2 |
| EMC120502 | R0.25 | 2 | 4 | 0.6 | 50 | 2 |
| EMC120504 | R0.25 | 4 | 4 | 0.6 | 50 | 2 |
| EMC120506 | R0.25 | 6 | 4 | 0.6 | 50 | 2 |
| EMC120602 | R0.3 | 2 | 4 | 0.7 | 50 | 2 |
| EMC120604 | R0.3 | 4 | 4 | 0.7 | 50 | 2 |
| EMC120606 | R0.3 | 6 | 4 | 0.7 | 50 | 2 |
| EMC120608 | R0.3 | 8 | 4 | 0.7 | 50 | 2 |
| EMC120802 | R0.4 | 2 | 4 | 1 | 50 | 2 |
| EMC120804 | R0.4 | 4 | 4 | 1 | 50 | 2 |
| EMC120806 | R0.4 | 6 | 4 | 1 | 50 | 2 |
| EMC120808 | R0.4 | 8 | 4 | 1 | 50 | 2 |
| EMC120810 | R0.4 | 10 | 4 | 1 | 50 | 2 |
| EMC121006 | R0.5 | 6 | 4 | 1.5 | 50 | 2 |
| EMC121008 | R0.5 | 8 | 4 | 1.5 | 50 | 2 |
| EMC121010 | R0.5 | 10 | 4 | 1.5 | 50 | 2 |
| EMC121012 | R0.5 | 12 | 4 | 1.5 | 50 | 2 |
| EMC121014 | R0.5 | 14 | 4 | 1.5 | 60 | 2 |
| EMC121016 | R0.5 | 16 | 4 | 1.5 | 60 | 2 |
| EMC121018 | R0.5 | 18 | 4 | 1.5 | 60 | 2 |
| EMC121020 | R0.5 | 20 | 4 | 1.5 | 60 | 2 |
| EMC121506 | R0.75 | 6 | 4 | 2 | 50 | 2 |
| EMC121508 | R0.75 | 8 | 4 | 2 | 50 | 2 |
| EMC121510 | R0.75 | 10 | 4 | 2 | 50 | 2 |
| EMC121512 | R0.75 | 12 | 4 | 2 | 50 | 2 |
| EMC121514 | R0.75 | 14 | 4 | 2 | 60 | 2 |
| EMC121516 | R0.75 | 16 | 4 | 2 | 60 | 2 |
| EMC121518 | R0.75 | 18 | 4 | 2 | 60 | 2 |
| EMC121520 | R0.75 | 20 | 4 | 2 | 60 | 2 |
| EMC122006 | R1.0 | 6 | 4 | 2.5 | 50 | 2 |
| EMC122008 | R1.0 | 8 | 4 | 2.5 | 50 | 2 |
| EMC122010 | R1.0 | 10 | 4 | 2.5 | 50 | 2 |
| EMC122012 | R1.0 | 12 | 4 | 2.5 | 50 | 2 |
| EMC122014 | R1.0 | 14 | 4 | 2.5 | 60 | 2 |
| EMC122016 | R1.0 | 16 | 4 | 2.5 | 60 | 2 |
| EMC122018 | R1.0 | 18 | 4 | 2.5 | 60 | 2 |
| EMC122020 | R1.0 | 20 | 4 | 2.5 | 60 | 2 |
| EMC123008 | R1.5 | 8 | 6 | 4 | 60 | 2 |
| EMC123010 | R1.5 | 10 | 6 | 4 | 60 | 2 |
| EMC123012 | R1.5 | 12 | 6 | 4 | 60 | 2 |
| EMC123014 | R1.5 | 14 | 6 | 4 | 60 | 2 |
| EMC123016 | R1.5 | 16 | 6 | 4 | 60 | 2 |
| EMC123018 | R1.5 | 18 | 6 | 4 | 60 | 2 |
| EMC123020 | R1.5 | 20 | 6 | 4 | 60 | 2 |
| EMC124012 | R2.0 | 12 | 6 | 5 | 60 | 2 |
| EMC124014 | R2.0 | 14 | 6 | 5 | 60 | 2 |
| EMC124016 | R2.0 | 16 | 6 | 5 | 60 | 2 |
| EMC124018 | R2.0 | 18 | 6 | 5 | 60 | 2 |
| EMC124020 | R2.0 | 20 | 6 | 5 | 60 | 2 |
| EMC124025 | R2.0 | 25 | 6 | 5 | 60 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
