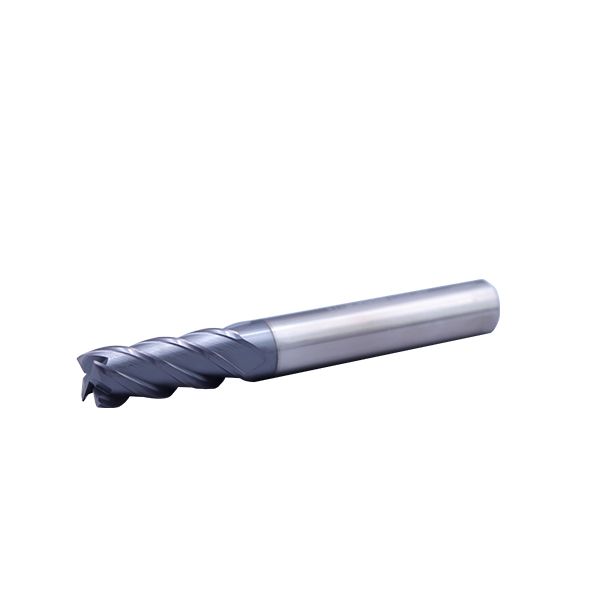

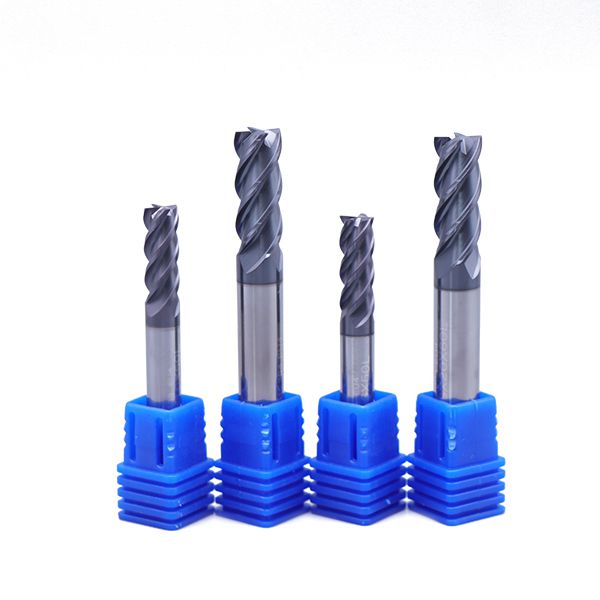

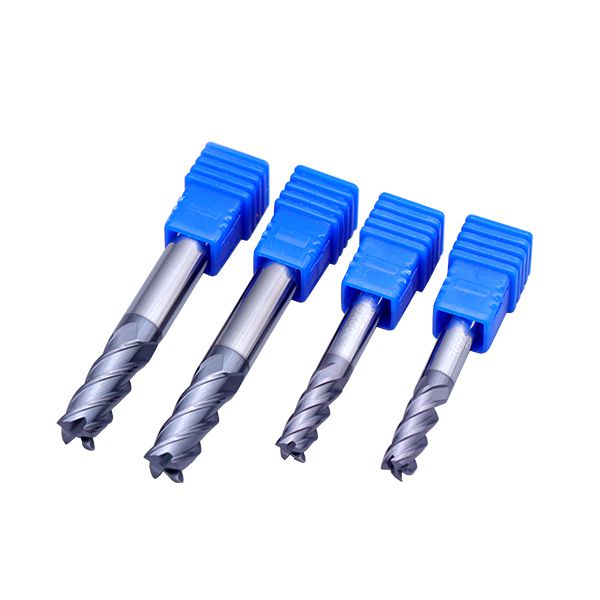

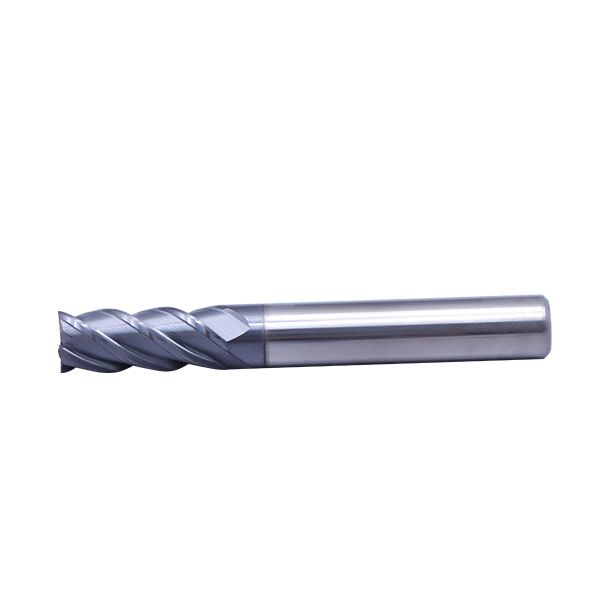

EMT11 4 Flute Carbide Square End Mill for Stainless Steel
- Designed for low hardness materials (under HRc40) including stainless steel, alloy steel, carbon steel, prehardened steel
- 4D flute, variable helix design (Approx. 37°) for improved slotting and roughing

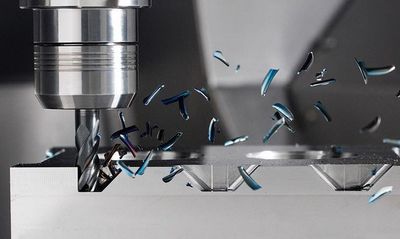

Application
Product Specifications
| Coating | AITiN /TiALN /TiSiN | Work Material | Stainless Steels and others |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, Square 4 Flutes End Mill for Stainless Steel (UNT-EMT11）- Economical Style

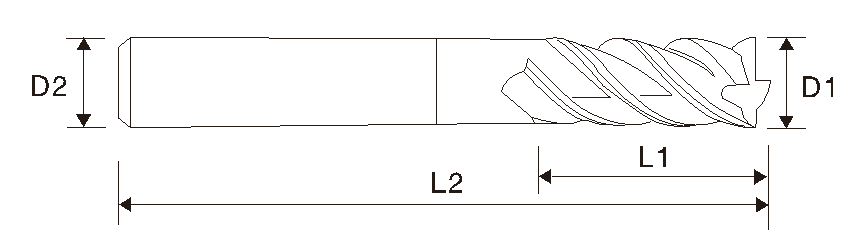

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMT110104 | 1.0 | 4 | 3 | 50 | 4 |
| EMT110154 | 1.5 | 4 | 4 | 50 | 4 |
| EMT110204 | 2.0 | 4 | 6 | 50 | 4 |
| EMT110254 | 2.5 | 4 | 6 | 50 | 4 |
| EMT110304 | 3.0 | 4 | 8 | 50 | 4 |
| EMT110354 | 3.5 | 4 | 10 | 50 | 4 |
| EMT110404 | 4.0 | 4 | 11 | 50 | 4 |
| EMT110106 | 1.0 | 6 | 3 | 50 | 4 |
| EMT110156 | 1.5 | 6 | 4 | 50 | 4 |
| EMT110206 | 2.0 | 6 | 6 | 50 | 4 |
| EMT110256 | 2.5 | 6 | 6 | 50 | 4 |
| EMT110306 | 3.0 | 6 | 8 | 50 | 4 |
| EMT110356 | 3.5 | 6 | 10 | 50 | 4 |
| EMT110406 | 4.0 | 6 | 11 | 50 | 4 |
| EMT110450 | 4.5 | 6 | 13 | 50 | 4 |
| EMT110500 | 5.0 | 6 | 13 | 50 | 4 |
| EMT110550 | 5.5 | 6 | 16 | 50 | 4 |
| EMT110600 | 6.0 | 6 | 16 | 50 | 4 |
| EMT110650 | 6.5 | 8 | 20 | 60 | 4 |
| EMT110700 | 7.0 | 8 | 20 | 60 | 4 |
| EMT110750 | 7.5 | 8 | 20 | 60 | 4 |
| EMT110800 | 8.0 | 8 | 20 | 60 | 4 |
| EMT110850 | 8.5 | 10 | 25 | 75 | 4 |
| EMT110900 | 9.0 | 10 | 25 | 75 | 4 |
| EMT110950 | 9.5 | 10 | 25 | 75 | 4 |
| EMT111000 | 10.0 | 10 | 25 | 75 | 4 |
| EMT111050 | 10.5 | 12 | 30 | 75 | 4 |
| EMT111100 | 11.0 | 12 | 30 | 75 | 4 |
| EMT111200 | 12.0 | 12 | 30 | 75 | 4 |
| EMT111400 | 14.0 | 14 | 30 | 90 | 4 |
| EMT111600 | 16.0 | 16 | 40 | 100 | 4 |
| EMT112000 | 20.0 | 20 | 40 | 100 | 4 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
