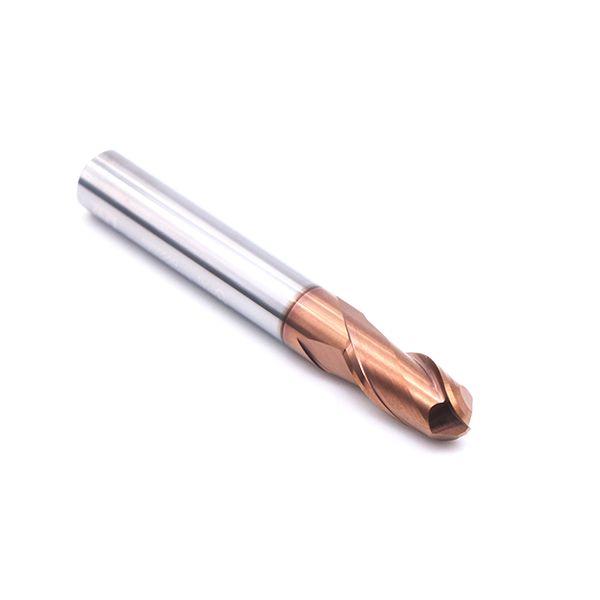

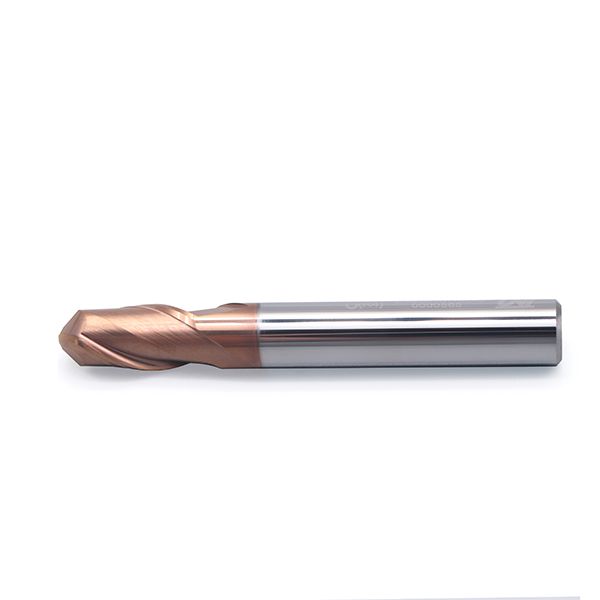

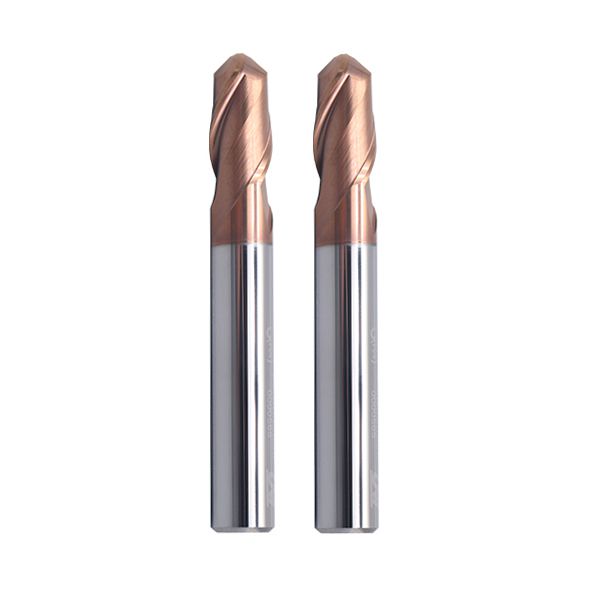

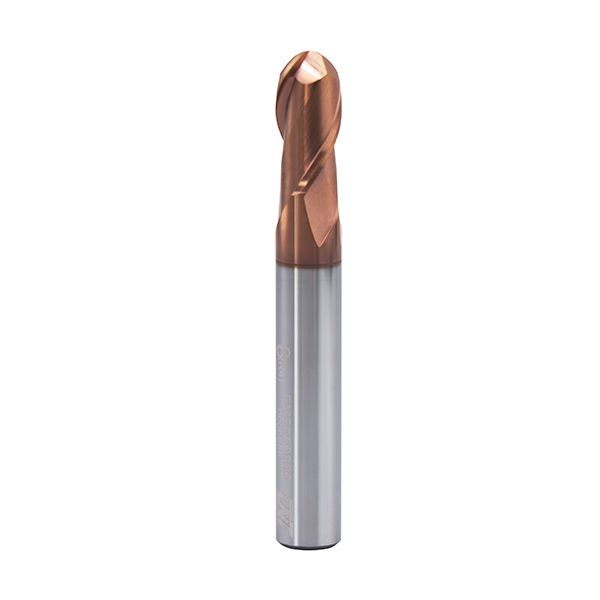

EMB05 Carbide Ball End Mill for High Hardness Steel-HRC65
Product Specifications
| Coating | AITiN | HRC | HRC50/65 |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
HRC65 Carbide Ball End Mills for High Hardened Steel (UNT-EMB05)

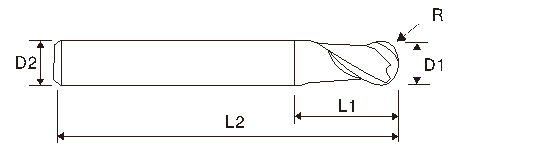

| UNT EDP # Click to Order | Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMB050034 | R0.15 | 0.3 | 4 | 0.6 | 50 | 2 |
| EMB050044 | R0.2 | 0.4 | 4 | 0.8 | 50 | 2 |
| EMB050054 | R0.25 | 0.5 | 4 | 1 | 50 | 2 |
| EMB050064 | R0.3 | 0.6 | 4 | 1.2 | 50 | 2 |
| EMB050074 | R0.35 | 0.7 | 4 | 1.4 | 50 | 2 |
| EMB050084 | R0.4 | 0.8 | 4 | 1.6 | 50 | 2 |
| EMB050094 | R0.45 | 0.9 | 4 | 1.8 | 50 | 2 |
| EMB050104 | R0.5 | 1.0 | 4 | 2 | 50 | 2 |
| EMB050154 | R0.75 | 1.5 | 4 | 3 | 50 | 2 |
| EMB050204 | R1.0 | 2.0 | 4 | 4 | 50 | 2 |
| EMB050254 | R1.25 | 2.5 | 4 | 5 | 50 | 2 |
| EMB050304 | R1.5 | 3.0 | 4 | 6 | 50 | 2 |
| EMB050303 | R1.5 | 3.0 | 3 | 6 | 50 | 2 |
| EMB050404 | R2.0 | 4.0 | 6 | 8 | 50 | 2 |
| EMB050106 | R0.5 | 1.0 | 6 | 2 | 50 | 2 |
| EMB050156 | R0.75 | 1.5 | 6 | 3 | 50 | 2 |
| EMB050206 | R1.0 | 2.0 | 6 | 4 | 50 | 2 |
| EMB050256 | R1.25 | 2.5 | 6 | 5 | 50 | 2 |
| EMB050306 | R1.5 | 3.0 | 6 | 6 | 50 | 2 |
| EMB050406 | R2.0 | 4.0 | 6 | 8 | 50 | 2 |
| EMB050500 | R2.5 | 5.0 | 6 | 10 | 50 | 2 |
| EMB050600 | R3.0 | 6.0 | 6 | 12 | 50 | 2 |
| EMB050700 | R3.5 | 7.0 | 8 | 14 | 60 | 2 |
| EMB050800 | R4.0 | 8.0 | 8 | 16 | 60 | 2 |
| EMB051000 | R5.0 | 10.0 | 10 | 20 | 75 | 2 |
| EMB051200 | R6.0 | 12.0 | 12 | 24 | 75 | 2 |
| EMB051600 | R8.0 | 16.0 | 16 | 32 | 100 | 2 |
| EMB052000 | R10.0 | 20.0 | 20 | 40 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
