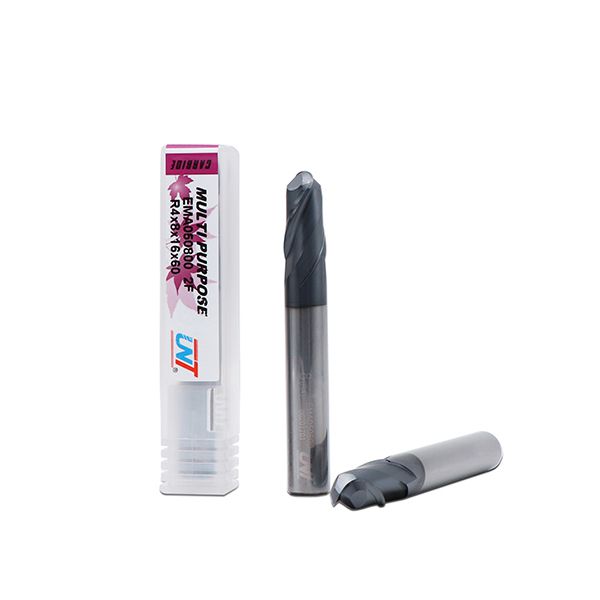

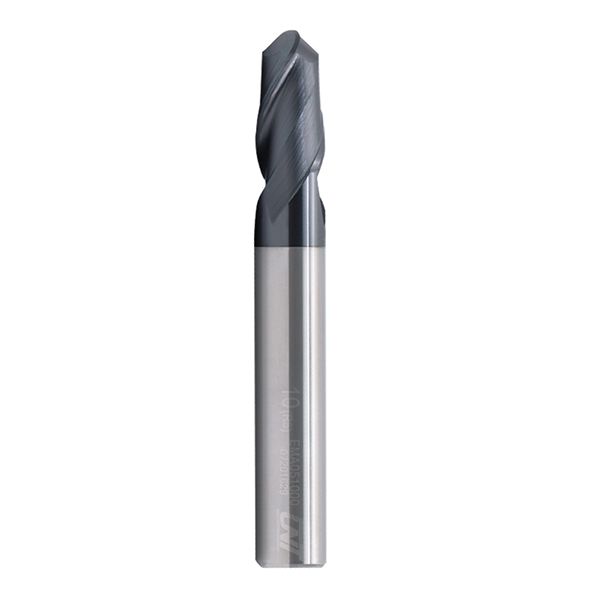

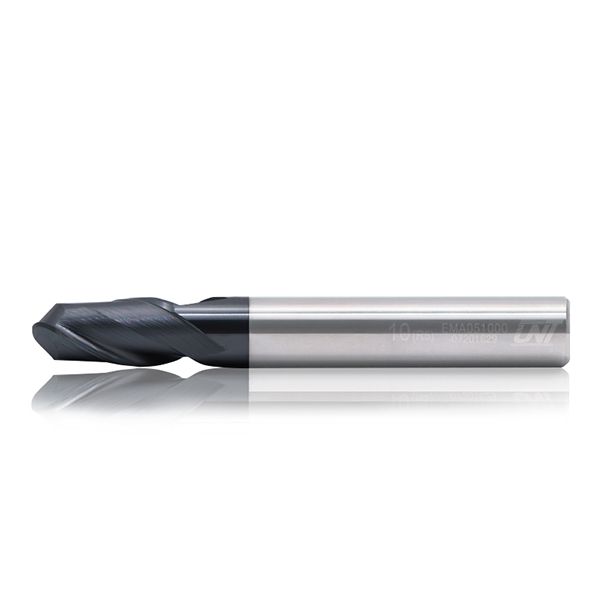

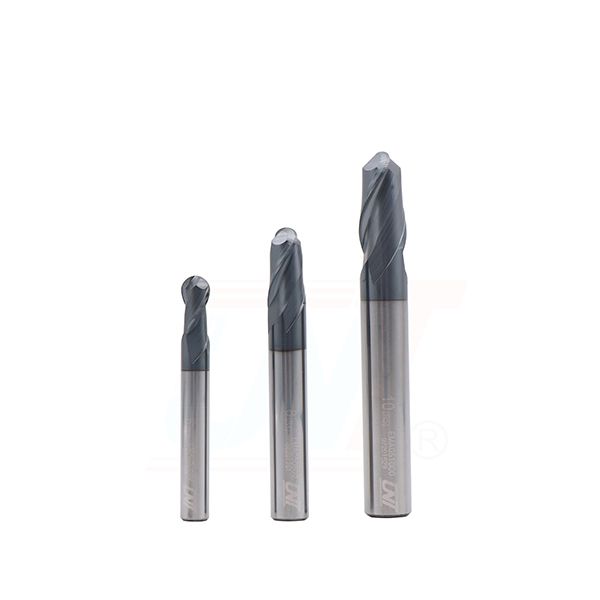

EMA05 2 Flute Ball Nose End Mill, 37°Helix, Regular Length
- Specially designed to cut prehardened steel, carbon steel, alloy steel up to HRC56
- Also suitable for machining stainless steel, titanium, inconel, and other high temperature alloys
- 4D flute, variable helix design (Approx. 37°) for improved slotting and roughing
- Oerlikon Balzers coating offers superior hardness and high performance
- Cutter Dia. down to 0.01mm
- Used for profile milling and slotting
- Chamfer design for easy installation

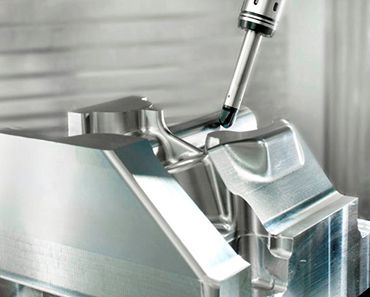

Application
Product Specifications
| Coating | AITiN /TiALN /TiAISiN AITiSiN |
HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, 2 Flute Ball Nose End Mill - Regular Length, for Copy Milling (UNT-EMA05)

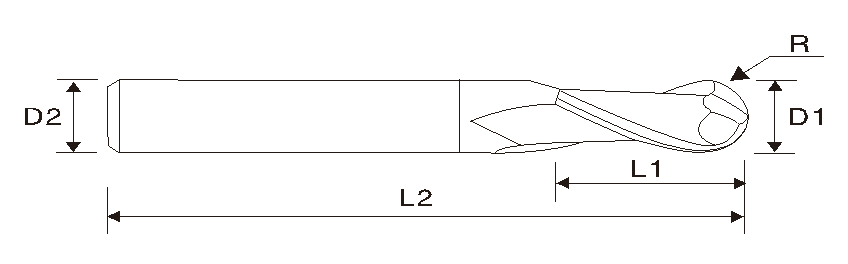

| UNT EDP # Click to Order | Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMA050103 | R0.5 | 1.0 | 3 | 2 | 50 | 2 |
| EMA050153 | R0.75 | 1.5 | 3 | 3 | 50 | 2 |
| EMA050203 | R1.0 | 2.0 | 3 | 4 | 50 | 2 |
| EMA050303 | R1.5 | 3.0 | 3 | 6 | 50 | 2 |
| EMA050104 | R0.5 | 1.0 | 4 | 2 | 50 | 2 |
| EMA050154 | R0.75 | 1.5 | 4 | 3 | 50 | 2 |
| EMA050204 | R1.0 | 2.0 | 4 | 4 | 50 | 2 |
| EMA050254 | R1.25 | 2.5 | 4 | 5 | 50 | 2 |
| EMA050304 | R1.5 | 3.0 | 4 | 6 | 50 | 2 |
| EMA050404 | R2.0 | 4.0 | 4 | 8 | 50 | 2 |
| EMA050106 | R0.5 | 1.0 | 6 | 2 | 50 | 2 |
| EMA050156 | R0.75 | 1.5 | 6 | 3 | 50 | 2 |
| EMA050206 | R1.0 | 2.0 | 6 | 4 | 50 | 2 |
| EMA050256 | R1.25 | 2.5 | 6 | 5 | 50 | 2 |
| EMA050306 | R1.5 | 3.0 | 6 | 6 | 50 | 2 |
| EMA050406 | R2.0 | 4.0 | 6 | 8 | 50 | 2 |
| EMA050500 | R2.5 | 5.0 | 6 | 10 | 50 | 2 |
| EMA050600 | R3.0 | 6.0 | 6 | 12 | 50 | 2 |
| EMA050700 | R3.5 | 7.0 | 8 | 14 | 60 | 2 |
| EMA050800 | R4.0 | 8.0 | 8 | 16 | 60 | 2 |
| EMA051000 | R5.0 | 10.0 | 10 | 20 | 75 | 2 |
| EMA051200 | R6.0 | 12.0 | 12 | 24 | 75 | 2 |
| EMA051600 | R8.0 | 16.0 | 16 | 32 | 100 | 2 |
| EMA052000 | R10.0 | 20.0 | 20 | 40 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
