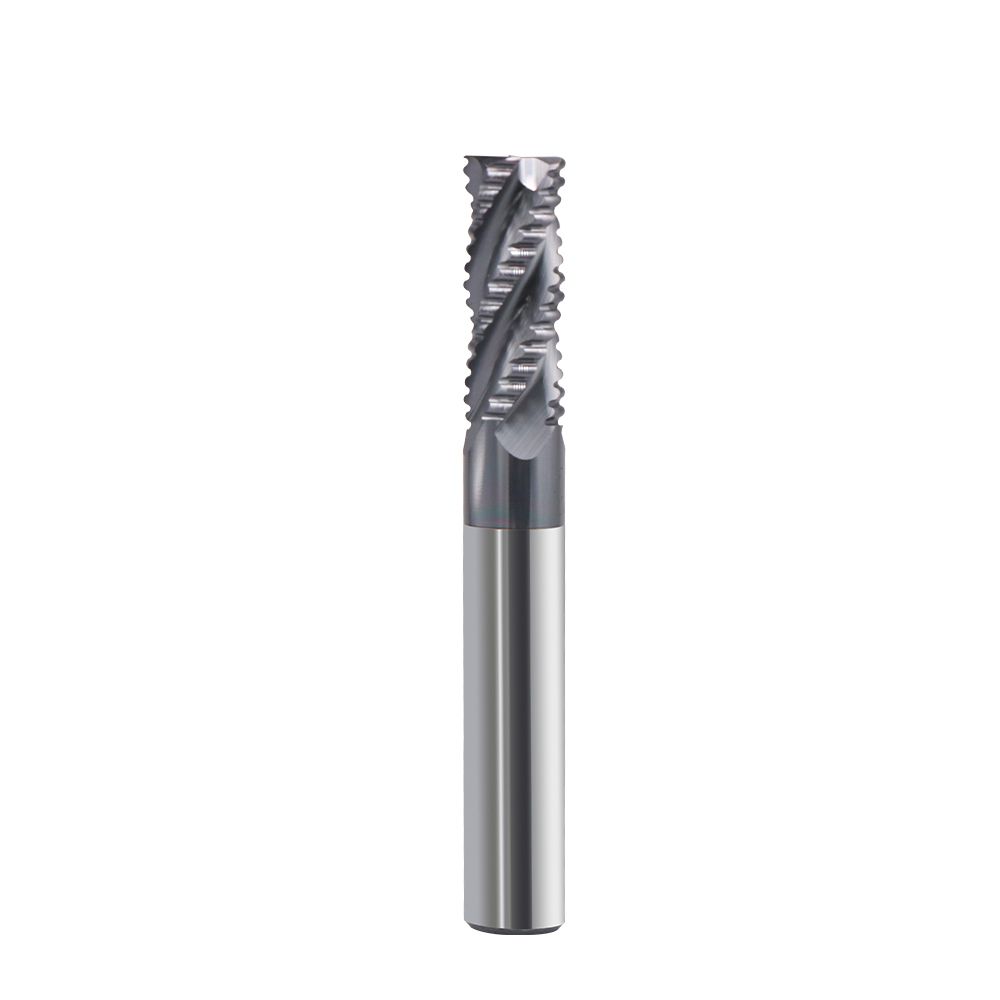

EMT16 Carbide, Roughing Spiral Bit with Up Cut Carbide
- Designed to Cutting Prehardened steel, carbon steel, alloy steels of molds and dies, up to HRc45 and machine parts.
- Special tool geometry for high feed rate and heavy cutting.
- Strong end tooth design for the plunge and pocket milling.
- For dry and wet milling.
- Fast chip ejection.
Product Specifications
| Coating | Uncoated /DLC | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 35/36/37 | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, Multi Flute Roughing tools (EMT16)

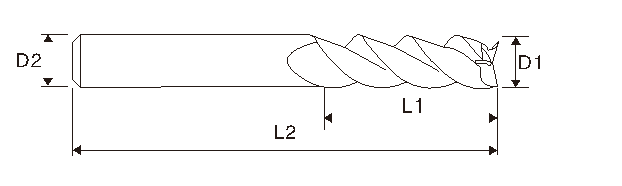

| UNT EDP # Click to Order | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMT16040 | 4.0 | 4 | 11 | 50 | 4F |
| EMT160406 | 4.0 | 6 | 11 | 50 | 4F |
| EMT16050 | 5.0 | 6 | 13 | 50 | 4F |
| EMT16060 | 6.0 | 6 | 16 | 50 | 4F |
| EMT16060100 | 6.0 | 6 | 30 | 100 | 4F |
| EMT16080 | 8.0 | 8 | 20 | 60 | 4F |
| EMT16080100 | 8.0 | 8 | 35 | 100 | 4F |
| EMT16100 | 10.0 | 10 | 25 | 75 | 4F |
| EMT16100100 | 10.0 | 10 | 40 | 100 | 4F |
| EMT16120 | 12.0 | 12 | 30 | 75 | 4F |
| EMT16120100 | 12.0 | 13 | 45 | 100 | 4F |
| EMT16160 | 16.0 | 16 | 40 | 100 | 4F |
| EMT16160150 | 16.0 | 16 | 60 | 150 | 4F |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
