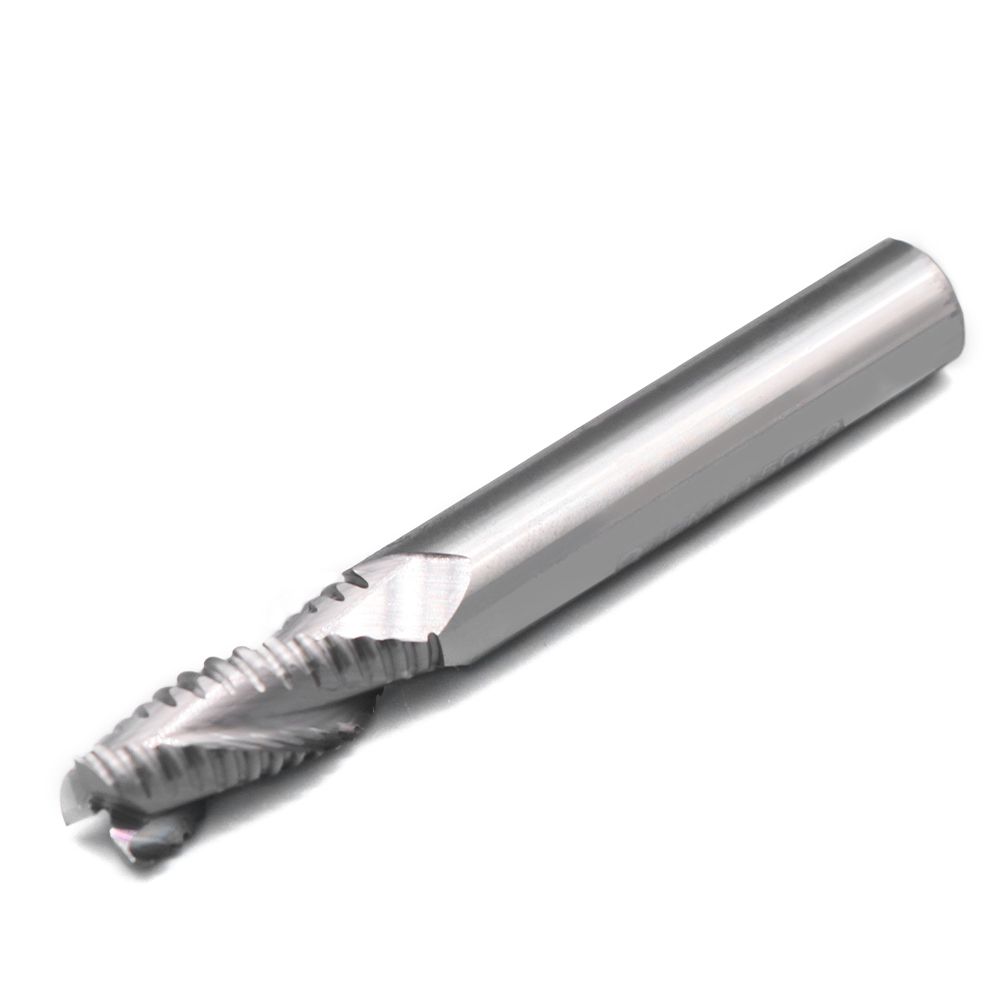

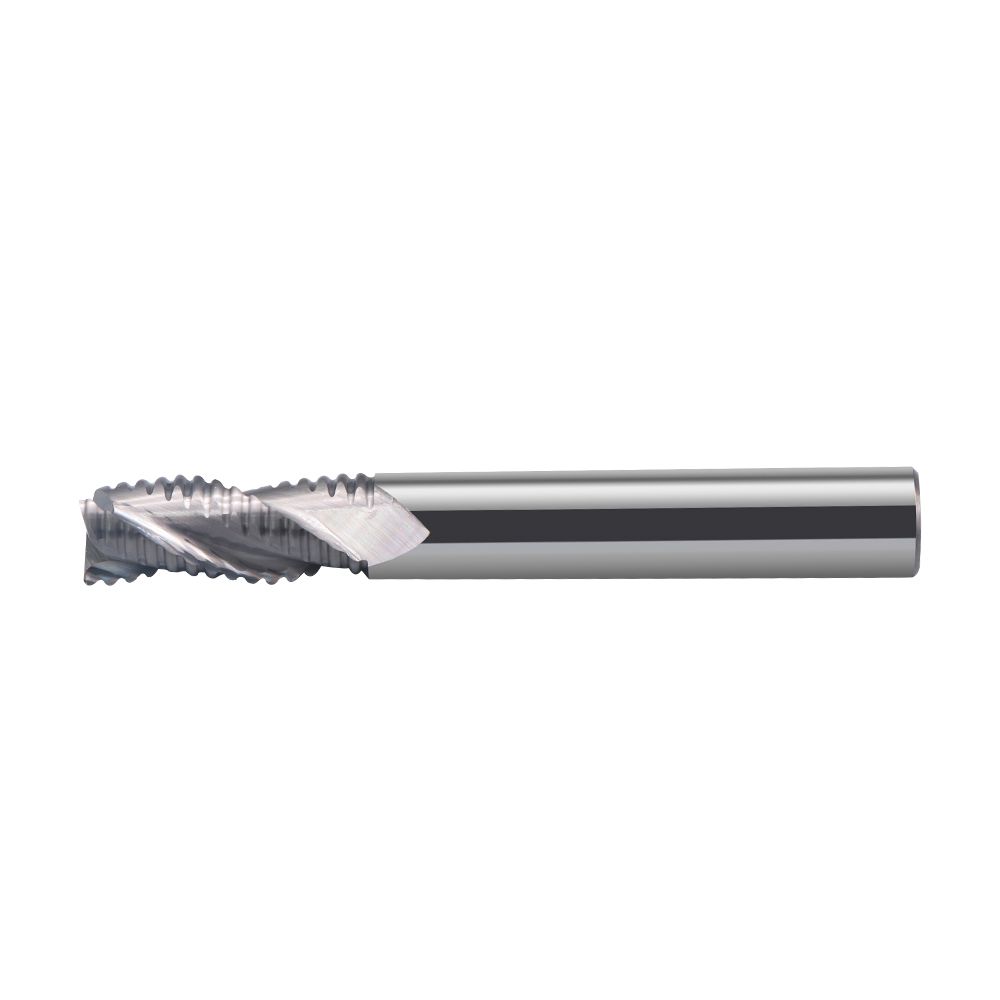

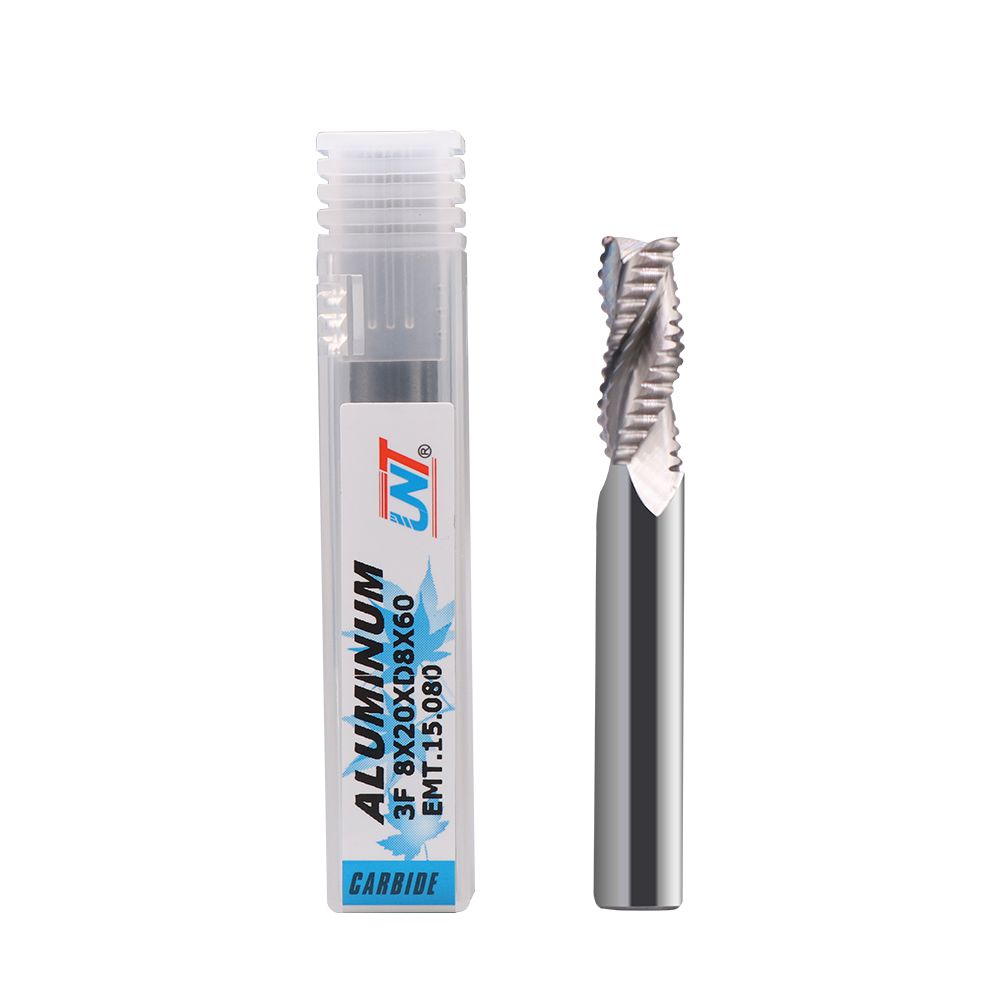

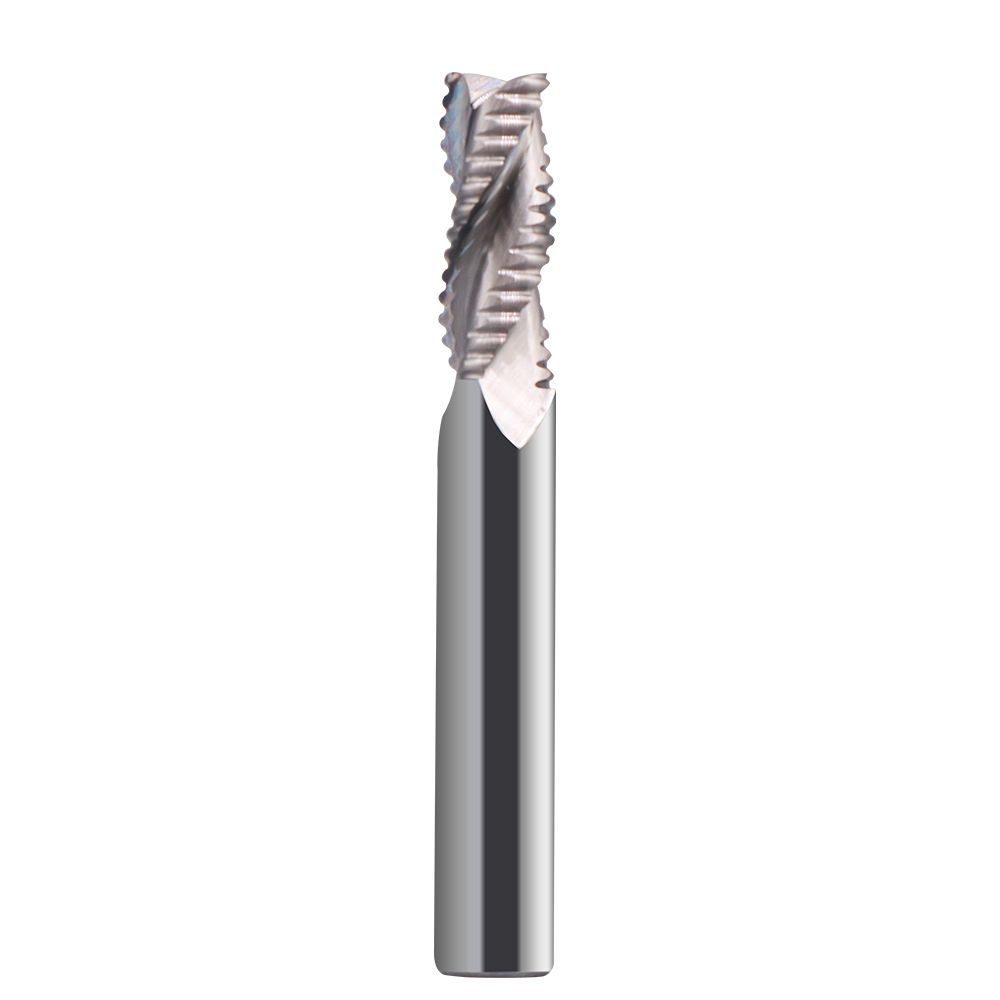

EMT15 Carbide, 3 Flutes/3 Alu Power Rougher Tools
- High performance in machine Aluminum Alloy / Copper Alloy / Graphite / Resin and non-Ferrous Material.
- 3 Flute Roughing tooth profile to reduce cutting forces.
- Special tool geometry for high feed rate and heavy cutting.
- Rougher Cutting
Product Specifications
| Coating | Non-Coated or TiN, TiCN & TiAIN | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide for Aluminum, 3 Flute Roughing End Mills (UNT-EMT15)
| UNT EDP # Click to Order | Mill Dia D1 |
Shank Dia D2 |
Flute length L1 |
O.A.L L2 |
Flutes |
| EMT15030 | 3.0 | 4 | 8 | 50 | 3 |
| EMT15030075 | 3.0 | 6 | 10 | 75 | 3 |
| EMT150306 | 3.0 | 6 | 8 | 50 | 3 |
| EMT15040 | 4.0 | 4 | 11 | 50 | 3 |
| EMT15040100 | 4.0 | 6 | 12 | 100 | 3 |
| EMT150406 | 4.0 | 6 | 11 | 50 | 3 |
| EMT15050 | 5.0 | 6 | 13 | 50 | 3 |
| EMT15050100 | 5.0 | 6 | 16 | 100 | 3 |
| EMT15060 | 6.0 | 6 | 16 | 50 | 3 |
| EMT15060100 | 6.0 | 6 | 30 | 100 | 3 |
| EMT15080 | 8.0 | 6 | 20 | 60 | 3 |
| EMT15080100 | 8.0 | 6 | 35 | 100 | 3 |
| EMT15100 | 10.0 | 10 | 25 | 75 | 3 |
| EMT15100100 | 10.0 | 10 | 40 | 100 | 3 |
| EMT15120 | 12.0 | 12 | 30 | 75 | 3 |
| EMT15120100 | 12.0 | 12 | 45 | 100 | 3 |
| EMT15140 | 14.0 | 14 | 40 | 100 | 3 |
| EMT15160 | 16.0 | 16 | 40 | 100 | 3 |
| EMT15160150 | 16.0 | 16 | 60 | 150 | 3 |
| EMT15200 | 20.0 | 20 | 40 | 100 | 3 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
