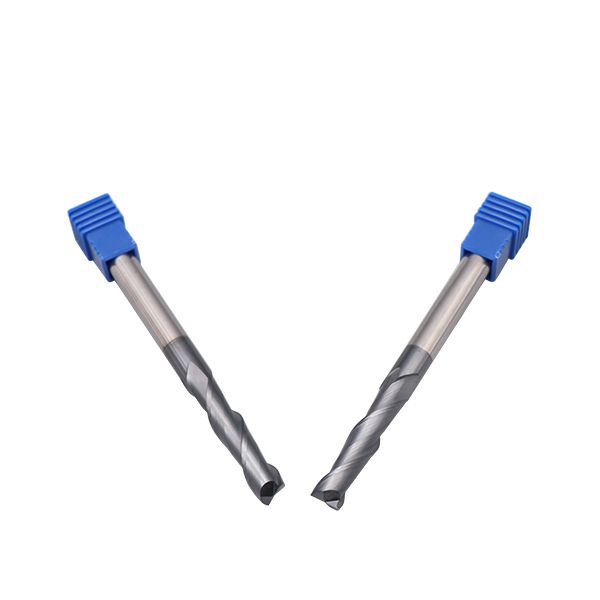

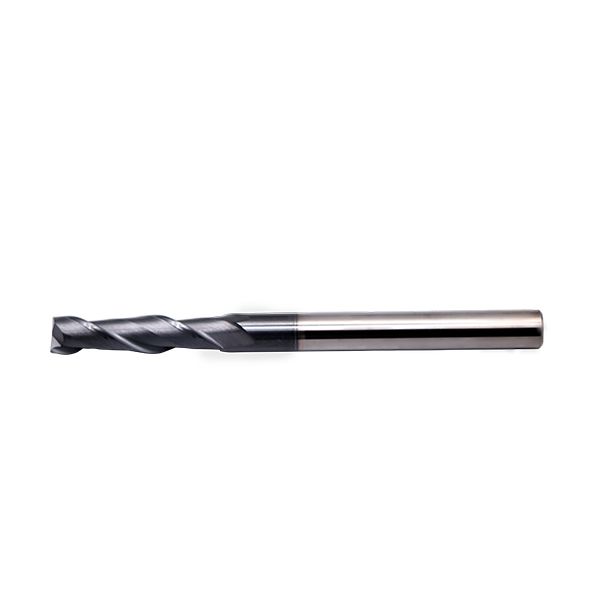

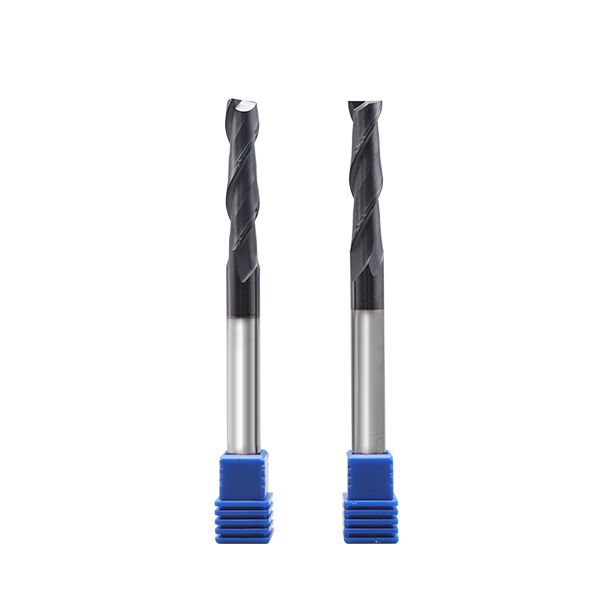

EMT02 2 Flute Carbide Router Bit, Long Length
- Designed for low hardness materials (under HRc45) such as alloy steel, inconel, tools steel, carbon steel, prehardened steel, stainless steel, titanium alloy
- Provides excellent surface finishes on the workpieces
- Center & slotting cutting
Application
Product Specifications
| Coating | AITiN /TiALN /TiSiN | HRC | HRC35/45 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, HRC45 Router bits, 2 Flutes（UNT-EMT02）

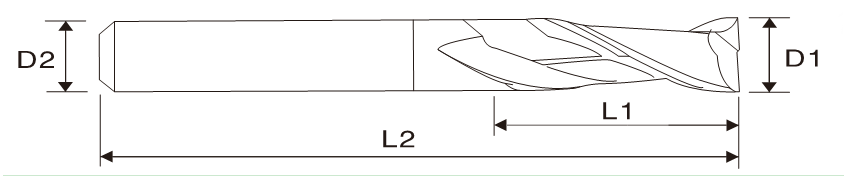

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMT02010075 | 1.0 | 4 | 5 | 75 | 2 |
| EMT02015075 | 1.5 | 4 | 6 | 75 | 2 |
| EMT02020075 | 2.0 | 4 | 8 | 75 | 2 |
| EMT02025075 | 2.5 | 4 | 8 | 75 | 2 |
| EMT02030075 | 3.0 | 4 | 10 | 75 | 2 |
| EMT02040075 | 4.0 | 4 | 12 | 75 | 2 |
| EMT02040100 | 4.0 | 4 | 12 | 100 | 2 |
| EMT020100756 | 1.0 | 6 | 5 | 75 | 2 |
| EMT020150756 | 1.5 | 6 | 6 | 75 | 2 |
| EMT020200756 | 2.0 | 6 | 8 | 75 | 2 |
| EMT020250756 | 2.5 | 6 | 8 | 75 | 2 |
| EMT020300756 | 3.0 | 6 | 10 | 75 | 2 |
| EMT020400756 | 4.0 | 6 | 12 | 75 | 2 |
| EMT02050075 | 5.0 | 6 | 16 | 75 | 2 |
| EMT02060075 | 6.0 | 6 | 25 | 75 | 2 |
| EMT02060100 | 6.0 | 6 | 30 | 100 | 2 |
| EMT02080100 | 8.0 | 8 | 35 | 100 | 2 |
| EMT02100100 | 10.0 | 10 | 40 | 100 | 2 |
| EMT02120100 | 12.0 | 12 | 45 | 100 | 2 |
| EMT02060150 | 6.0 | 6 | 35 | 150 | 2 |
| EMT02080150 | 8.0 | 8 | 35 | 150 | 2 |
| EMT02100150 | 10.0 | 10 | 40 | 150 | 2 |
| EMT02120150 | 12.0 | 12 | 45 | 150 | 2 |
| EMT02160150 | 16.0 | 16 | 60 | 150 | 2 |
| EMT0220050 | 20.0 | 20 | 70 | 150 | 2 |
• Router bits with non-standard sizes or specifications not listed above can be customized according to customer needs.
