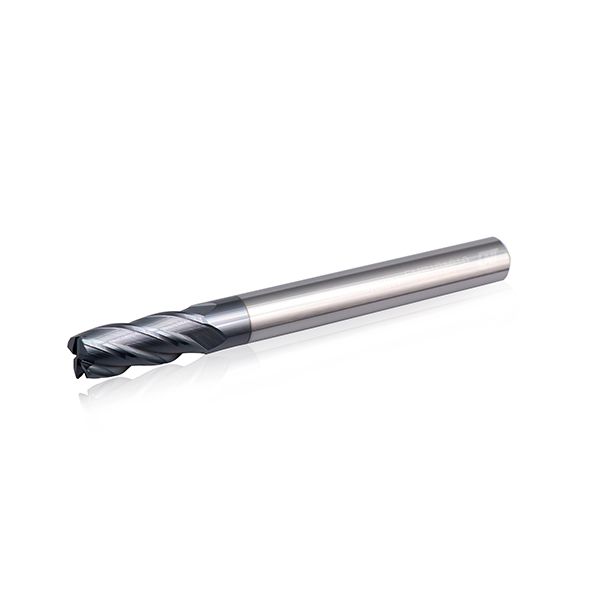

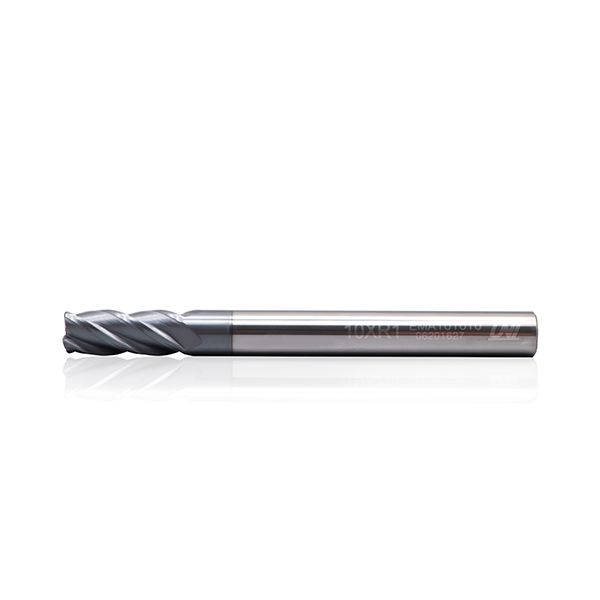

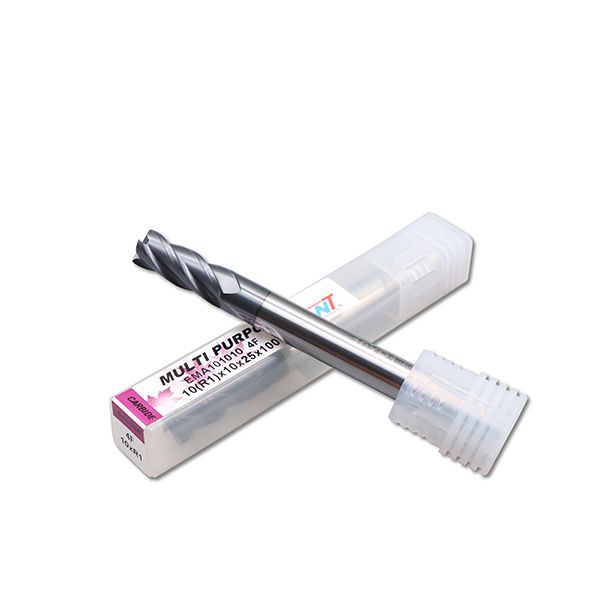

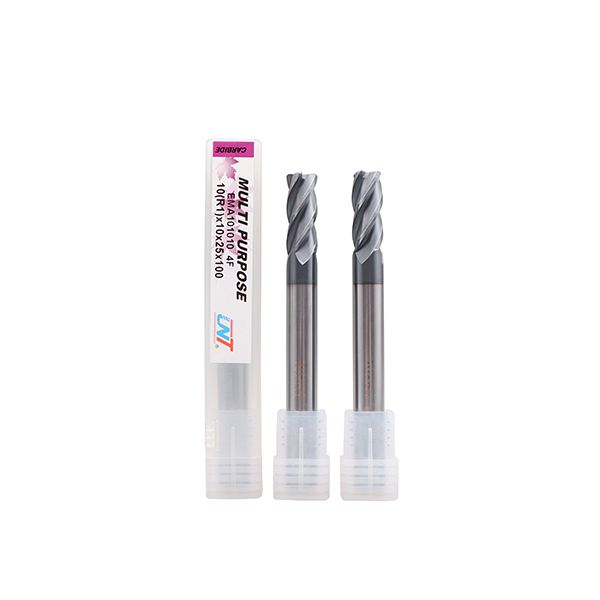

EMA10 4 Flute Corner Radius End Mill, Long Length
- Special 4~6 flutes design provides small chip loads, higher metal removal rates and better surface finish on the workpieces
- Results in excellent performance when cutting prehardened steels up to HRc56
- Used for machining molds & dies
- Fit for milling from roughing to finishing at one time, with reduced tool changing times
- Oerlikon Balzers coating and tool geometry provide outstanding cutting ability and wear resistance

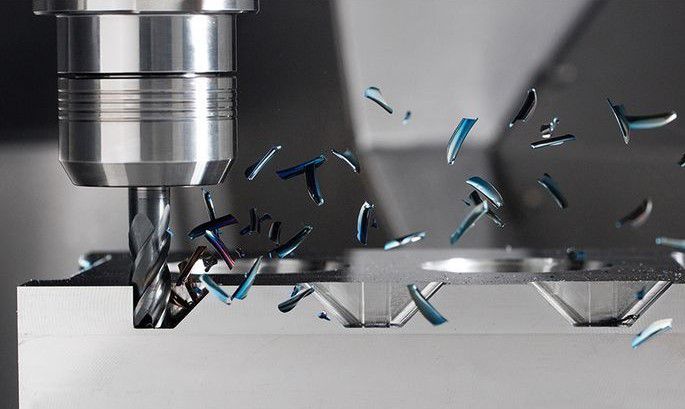

Application
Product Specifications
| Coating | AITiN /TiALN /TiAISiN AITiSiN |
HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide End Mill, 4 Flutes, Corner Radius, Long Length（EMA10)

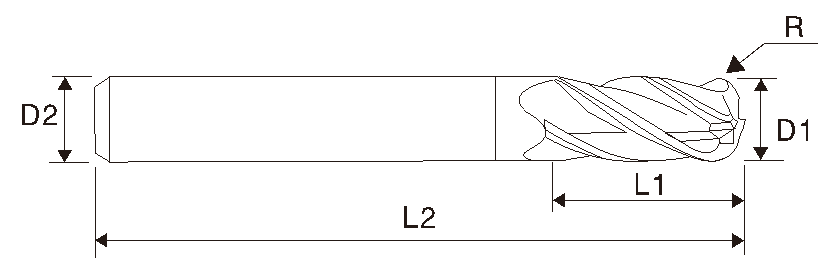

| UNT EDP # Click to Order | Corner Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMA1004075 | R0.5 | 4.0 | 4 | 11 | 75 | 4 |
| EMA1004100 | R0.5 | 4.0 | 4 | 11 | 100 | 4 |
| EMA1006075 | R0.5 | 6.0 | 6 | 16 | 75 | 4 |
| EMA100605 | R0.5 | 6.0 | 6 | 16 | 100 | 4 |
| EMA100610 | R1.0 | 6.0 | 6 | 16 | 100 | 4 |
| EMA100615 | R1.5 | 6.0 | 6 | 16 | 100 | 4 |
| EMA100620 | R2.0 | 6.0 | 6 | 16 | 100 | 4 |
| EMA1008051 | R0.5 | 8.0 | 8 | 20 | 75 | 4 |
| EMA100805 | R0.5 | 8.0 | 8 | 20 | 100 | 4 |
| EMA100810 | R1.0 | 8.0 | 8 | 20 | 100 | 4 |
| EMA100815 | R1.5 | 8.0 | 8 | 20 | 100 | 4 |
| EMA100820 | R2.0 | 8.0 | 8 | 20 | 100 | 4 |
| EMA101005 | R0.5 | 10.0 | 10 | 25 | 100 | 4 |
| EMA101010 | R1.0 | 10.0 | 10 | 25 | 100 | 4 |
| EMA101015 | R1.5 | 10.0 | 10 | 25 | 100 | 4 |
| EMA101020 | R2.0 | 10.0 | 10 | 25 | 100 | 4 |
| EMA101030 | R3.0 | 10.0 | 10 | 25 | 100 | 4 |
| EMA101205 | R0.5 | 12.0 | 12 | 30 | 100 | 4 |
| EMA101210 | R1.0 | 12.0 | 12 | 30 | 100 | 4 |
| EMA101215 | R1.5 | 12.0 | 12 | 30 | 100 | 4 |
| EMA101220 | R2.0 | 12.0 | 12 | 30 | 100 | 4 |
| EMA101230 | R3.0 | 12.0 | 12 | 30 | 100 | 4 |
| EMA101605 | R0.5 | 16.0 | 16 | 40 | 100 | 4 |
| EMA101610 | R1.0 | 16.0 | 16 | 40 | 100 | 4 |
| EMA101615 | R1.5 | 16.0 | 16 | 40 | 100 | 4 |
| EMA101620 | R2.0 | 16.0 | 16 | 40 | 100 | 4 |
| EMA101630 | R3.0 | 16.0 | 16 | 40 | 100 | 4 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
