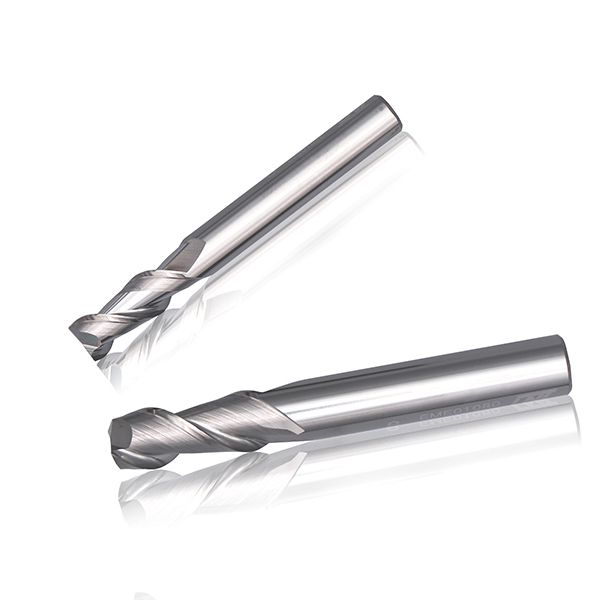

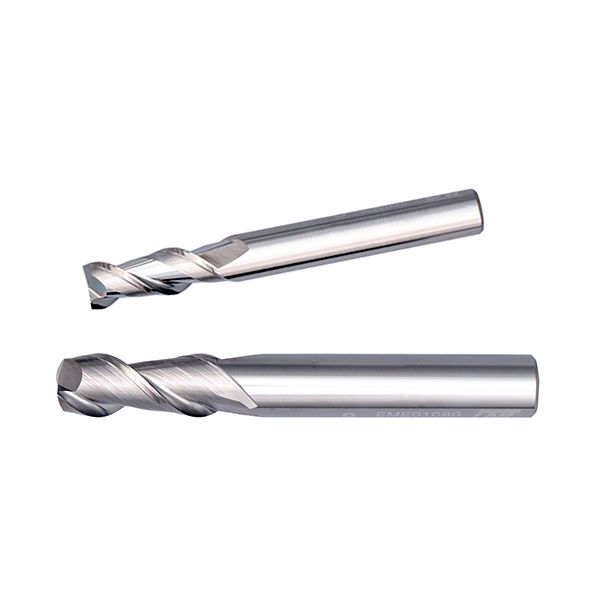

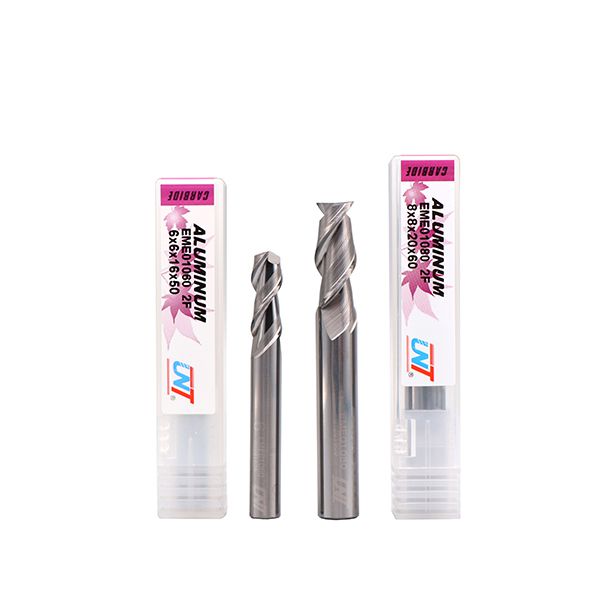

EME02 Carbide, 2 Flute Square End Mills with Long Neck
- Designed to machine aluminum alloy, copper alloy, graphite, resin and non-ferrous material
- Features excellent surface finishes, superior chips ejection and long tool life
- High-quality aluminum milling cutters are available with TiN, TiCN & TiAIN coating upon request
- Center & slotting cutting

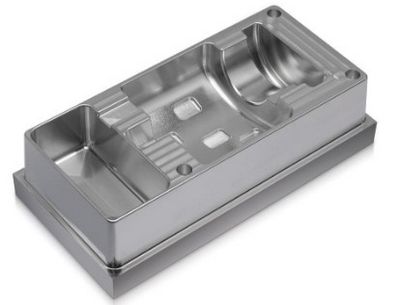

Application
Product Specifications
| Coating | Non-Coated or TiN, TiCN & TiAIN | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide 2 Flute End Mill, 45° Helix, Long Length – Slotting (UNT-EME02)

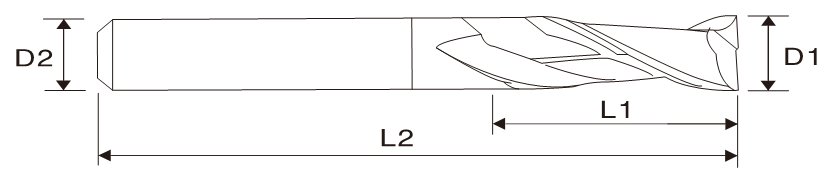

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EME02010075 | 1.0 | 4 | 5 | 75 | 2 |
| EME02015075 | 1.5 | 4 | 6 | 75 | 2 |
| EME02020075 | 2.0 | 4 | 8 | 75 | 2 |
| EME02025075 | 2.5 | 4 | 8 | 75 | 2 |
| EME02030075 | 3.0 | 4 | 10 | 75 | 2 |
| EME02040075 | 4.0 | 4 | 12 | 75 | 2 |
| EME02050075 | 5.0 | 6 | 16 | 75 | 2 |
| EME02060075 | 6.0 | 6 | 25 | 75 | 2 |
| EME02060100 | 6.0 | 6 | 30 | 100 | 2 |
| EME02080100 | 8.0 | 8 | 35 | 100 | 2 |
| EME02100100 | 10.0 | 10 | 40 | 100 | 2 |
| EME02120100 | 12.0 | 12 | 45 | 100 | 2 |
| EME02160150 | 16.0 | 16 | 70 | 100 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
