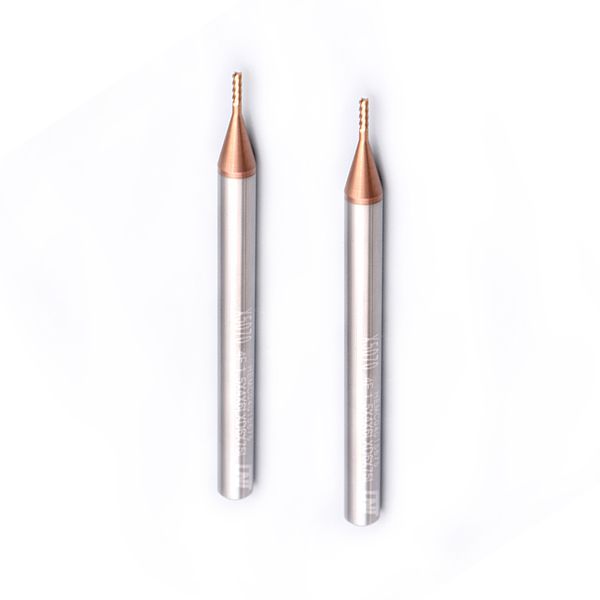

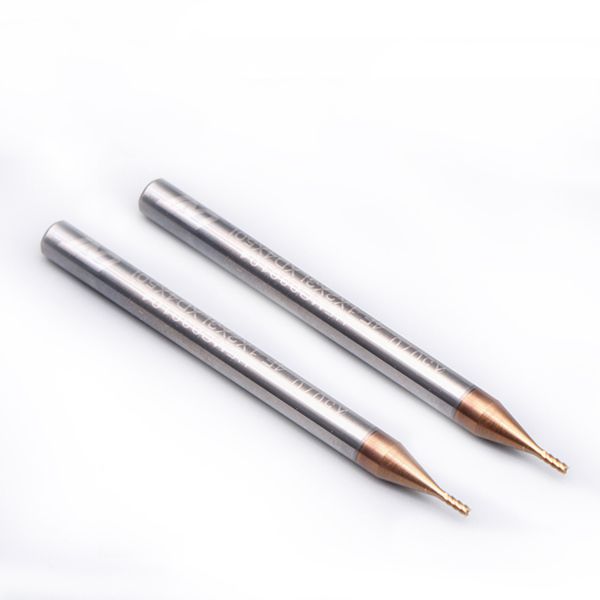

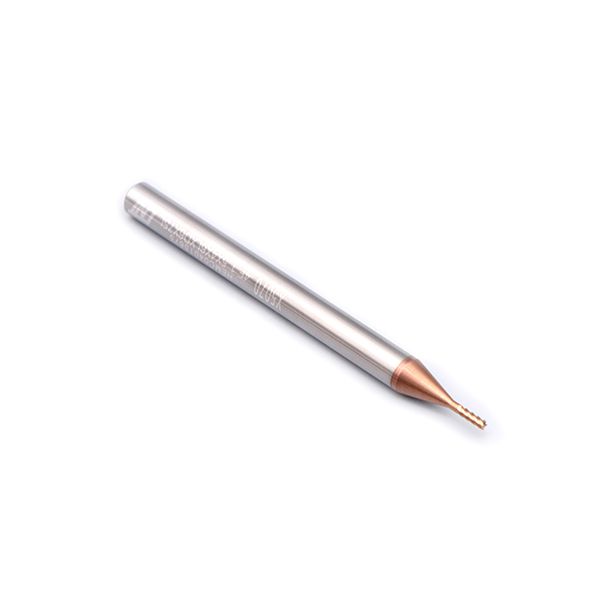

EMC02 X5070 Carbide 2 Flute End Mill for High Hardened Steels
- Designed to machine tool steel, alloy steel, mold steel and other materials with hardness up to HRC70
- Oerlikon Balzers coating offers superior hardness and heat resistance
- Increased feed rates

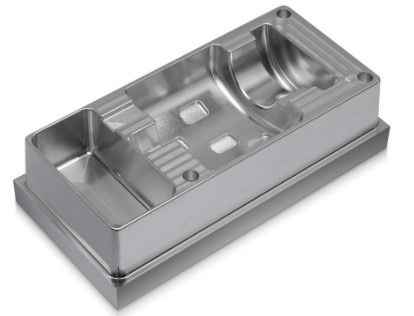

Application
Product Specifications
| Coating | AITISIN | HRC | HRC50/65/70 |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
X5070 Carbide Square End Mills, 2 Flutes （UNT-EMC02）

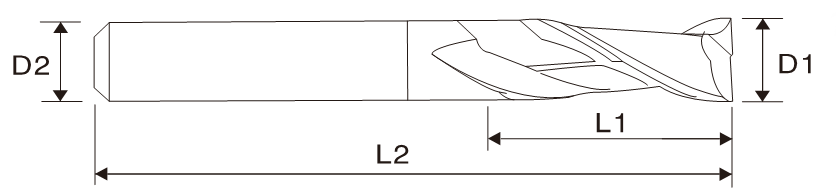

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
Effective Length L3 |
O.A.L. L2 |
Flutes |
| EMC02010075 | 1.0 | 4 | 2.5 | 4 | 75 | 2 |
| EMC02015075 | 1.5 | 4 | 4 | 6 | 75 | 2 |
| EMC02020075 | 2.0 | 4 | 5 | 8 | 75 | 2 |
| EMC02025075 | 2.5 | 4 | 6 | 10 | 75 | 2 |
| EMC02030075 | 3.0 | 4 | 8 | 12 | 75 | 2 |
| EMC02040075 | 4.0 | 4 | 10 | 16 | 75 | 2 |
| EMC020100756 | 1.0 | 6 | 2.5 | 4 | 75 | 2 |
| EMC020150756 | 1.5 | 6 | 4 | 6 | 75 | 2 |
| EMC020200756 | 2.0 | 6 | 5 | 8 | 75 | 2 |
| EMC020250756 | 2.5 | 6 | 6 | 10 | 75 | 2 |
| EMC020300756 | 3.0 | 6 | 8 | 12 | 75 | 2 |
| EMC020400756 | 4.0 | 6 | 10 | 16 | 75 | 2 |
| EMC02050075 | 5.0 | 6 | 13 | 20 | 75 | 2 |
| EMC02060075 | 6.0 | 6 | 15 | 20 | 75 | 2 |
| EMC02060100 | 6.0 | 6 | 15 | 24 | 100 | 2 |
| EMC02080075 | 8.0 | 8 | 20 | 24 | 75 | 2 |
| EMC02080100 | 8.0 | 8 | 20 | 32 | 100 | 2 |
| EMC02100100 | 10.0 | 10 | 25 | 40 | 100 | 2 |
| EMC02120100 | 12.0 | 12 | 30 | 45 | 100 | 2 |
| EMC02080150 | 8.0 | 8 | 24 | 36 | 150 | 2 |
| EMC02100150 | 10.0 | 10 | 30 | 45 | 150 | 2 |
| EMC02120150 | 12.0 | 12 | 36 | 50 | 150 | 2 |
| EMC02160150 | 16.0 | 16 | 48 | 60 | 150 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
