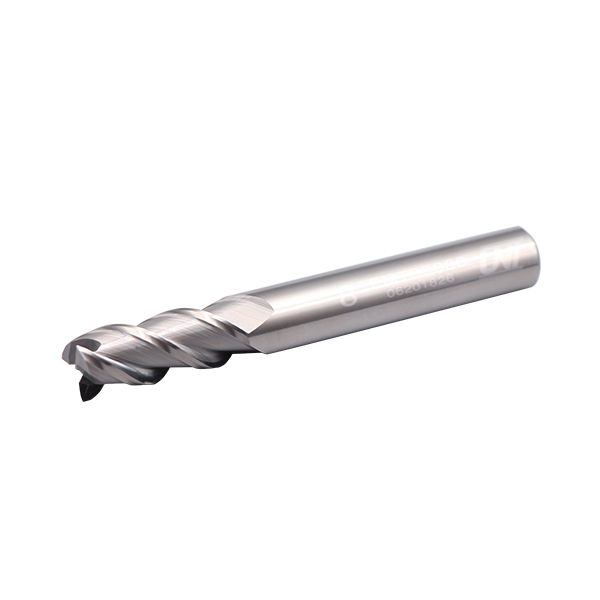

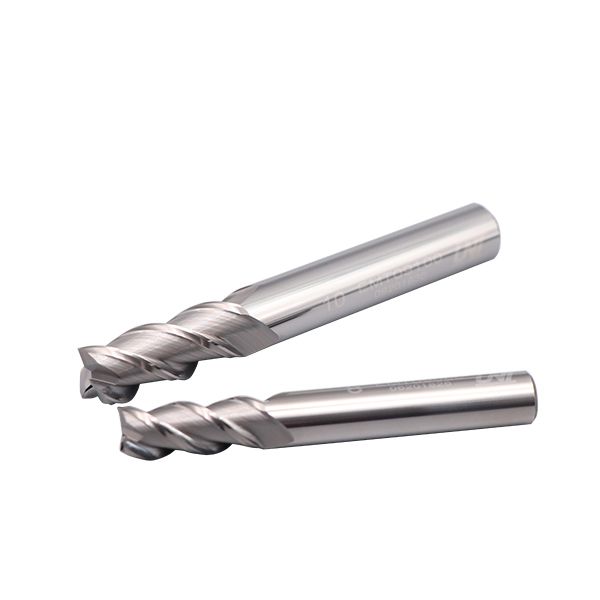

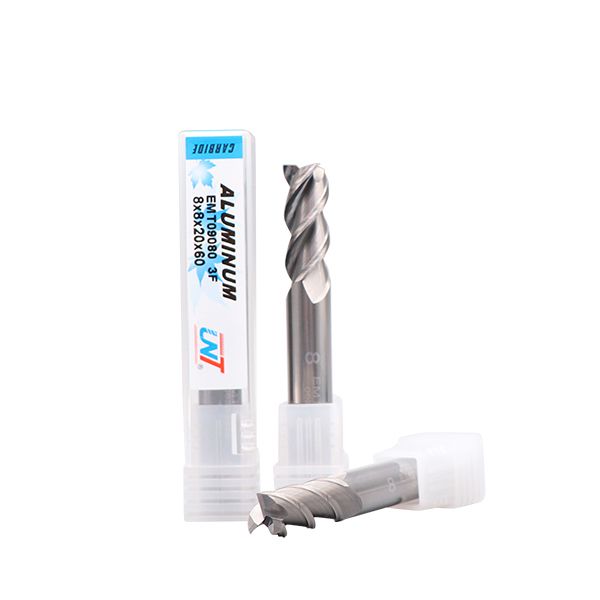

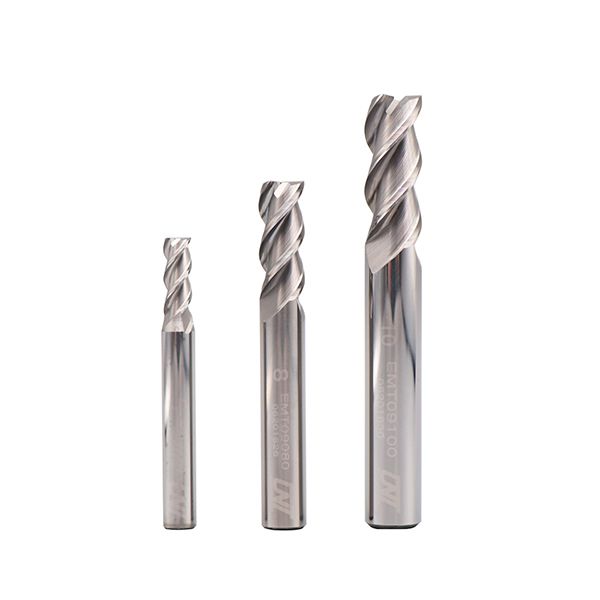

EMT09 3 Flute Carbide End Mill for Aluminum
- 3 Flute design “To the center” - all 3 flutes come to the center, resulting in good surface finishes
- Excellent performance with high feed, high RPM, high chip removal during heavy cutting
- Used for profile, slot and chamfer cutting

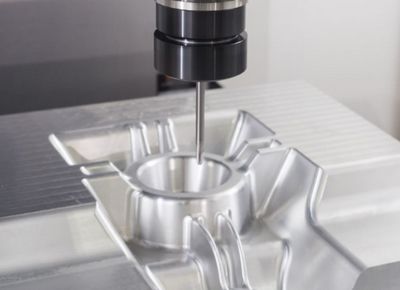

Application
Product Specifications
| Coating | Uncoated /DLC | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide 3 Flute End Mill for Aluminum (UNT-EMT09）- Economical Style

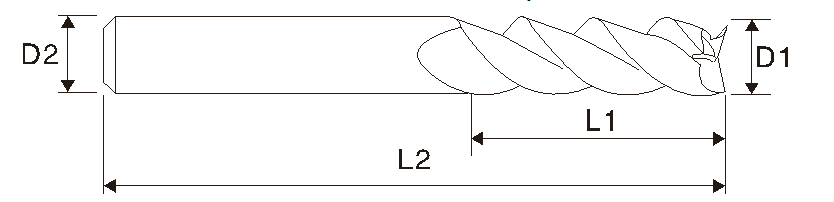

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMT09010 | 1.0 | 4 | 3 | 50 | 3 |
| EMT09015 | 1.5 | 4 | 4 | 50 | 3 |
| EMT09020 | 2.0 | 4 | 6 | 50 | 3 |
| EMT09025 | 2.5 | 4 | 6 | 50 | 3 |
| EMT090301 | 3.0 | 3 | 8 | 50 | 3 |
| EMT09030 | 3.0 | 4 | 8 | 50 | 3 |
| EMT09040 | 4.0 | 4 | 11 | 50 | 3 |
| EMT090501 | 5.0 | 5 | 13 | 50 | 3 |
| EMT09050 | 5.0 | 6 | 13 | 50 | 3 |
| EMT09060 | 6.0 | 6 | 16 | 50 | 3 |
| EMT09070 | 7.0 | 8 | 20 | 60 | 3 |
| EMT09080 | 8.0 | 8 | 20 | 60 | 3 |
| EMT09090 | 9.0 | 10 | 25 | 75 | 3 |
| EMT0909100 | 10.0 | 10 | 25 | 75 | 3 |
| EMT0909120 | 12.0 | 12 | 30 | 75 | 3 |
| EMT0909140 | 14.0 | 14 | 40 | 100 | 3 |
| EMT0909160 | 16.0 | 16 | 40 | 100 | 3 |
| EMT0909200 | 20.0 | 20 | 40 | 100 | 3 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
