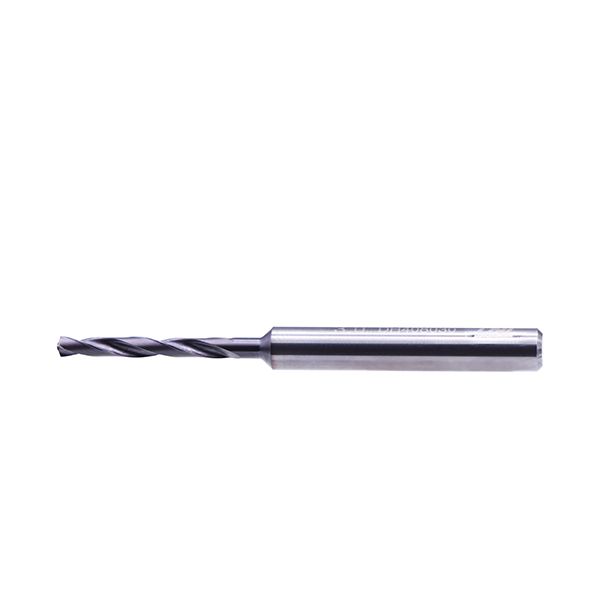

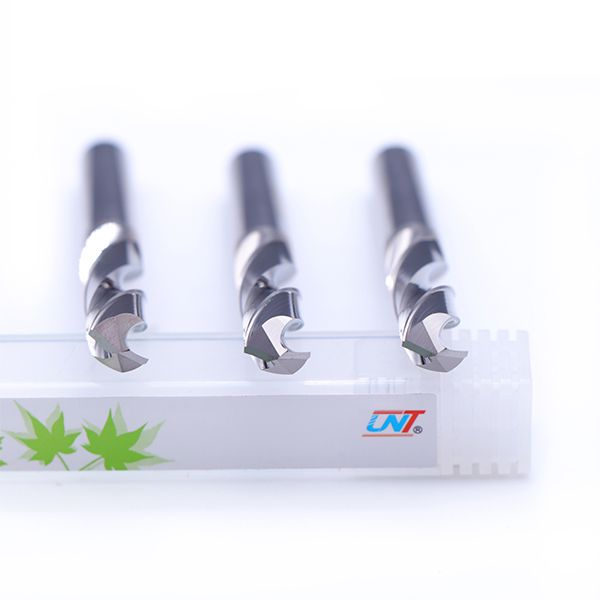

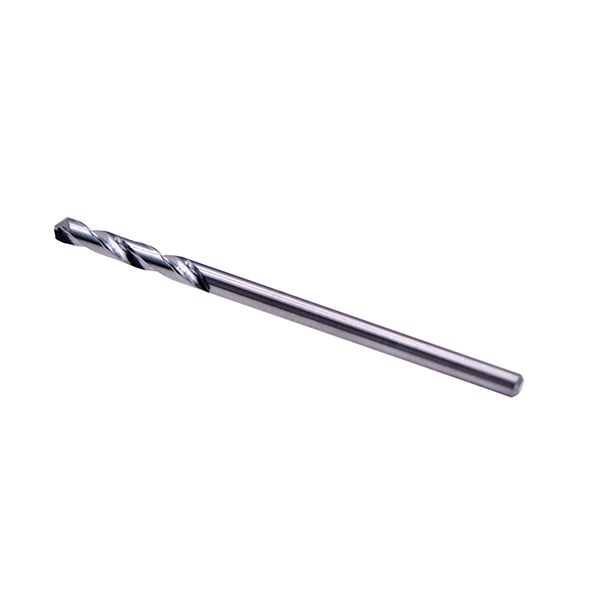

Solid Carbide Drills, DIN 338

Solid Carbide Drills, DIN 338
Solid Carbide Drills, DIN 338 Solid Carbide Drills, DIN 338 Solid Carbide Drills, DIN 338 Solid Carbide Drills, DIN 338
Inquiry
  • Twister solid carbide stub drill offers high-speed and precise drilling on steel, alloy steel, stainless steel, titanium, brass nickel alloy, etc.
  • Solid submicron grain carbide raw materials ensure the highest cutting speeds
  • Features efficient chip removal during the machining of soft and hard metal
Application
  • Solid Carbide Drills, DIN 338
Product Specifications
Coating Uncoated /AITiN /TiSiN/TiN HRC HRC35/45
Helix Angle 30° Shank Cylindrical H6
Point Angle 118° Tolerance on Cutting Diameter 0-0.030
Solid Tungsten Carbide Drill, DIN338 (UNT-EMH04 ), Unit: mm
Solid Carbide Drills, DIN 338
Unit: mm

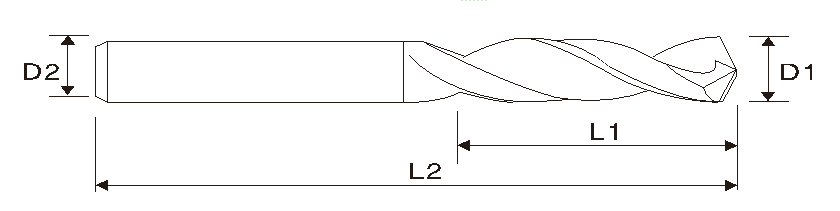

UNT EDP # Click to Order Mill Dia.
D1		 Flute Length
L1		 O.A.L.
L2		 Flutes
EMH04010 1.0 12 34 2
EMH04011 1.1 14 36 2
EMH04012 1.2 16 38 2
EMH04013 1.3 16 38 2
EMH04014 1.4 18 40 2
EMH04015 1.5 18 40 2
EMH04016 1.6 20 43 2
EMH04017 1.7 20 43 2
EMH04018 1.8 22 46 2
EMH04019 1.9 22 46 2
EMH04020 2.0 24 49 2
EMH04021 2.1 24 49 2
EMH04022 2.2 27 53 2
EMH04023 2.3 27 53 2
EMH04024 2.4 30 57 2
EMH04025 2.5 30 57 2
EMH04026 2.6 30 57 2
EMH04027 2.7 33 61 2
EMH04028 2.8 33 61 2
EMH04029 2.9 33 61 2
EMH04030 3.0 33 61 2
EMH04031 3.1 36 65 2
EMH04032 3.2 36 65 2
EMH04033 3.3 36 65 2
EMH04034 3.4 39 70 2
EMH04035 3.5 39 70 2
EMH04036 3.6 39 70 2
EMH04037 3.7 39 70 2
EMH04038 3.8 43 75 2
EMH04039 3.9 43 75 2
EMH04040 4.0 43 75 2
EMH04041 4.1 43 75 2
EMH04042 4.2 43 75 2
EMH04043 4.3 47 80 2
EMH04044 4.4 47 80 2
EMH04045 4.5 47 80 2
EMH04046 4.6 47 80 2
EMH04047 4.7 47 80 2
EMH04048 4.8 52 86 2
EMH04049 4.9 52 86 2
EMH04050 5.0 52 86 2
EMH04051 5.1 52 86 2
EMH04052 5.2 52 86 2
EMH04053 5.3 52 86 2
EMH04054 5.4 57 93 2
EMH04055 5.5 57 93 2
EMH04056 5.6 57 93 2
EMH04057 5.7 57 93 2
EMH04058 5.8 57 93 2
EMH04059 5.9 57 93 2
UNT EDP # Click to Order Mill Dia.
D1 		Flute Length
L1 		O.A.L.
L2 		Flutes
EMH04060 6.0 57 93 2
EMH04061 6.1 63 101 2
EMH04062 6.2 63 101 2
EMH04063 6.3 63 101 2
EMH04064 6.4 63 101 2
EMH04065 6.5 63 101 2
EMH04066 6.6 63 101 2
EMH04067 6.7 63 101 2
EMH04068 6.8 69 109 2
EMH04069 6.9 69 109 2
EMH04070 7.0 69 109 2
EMH04071 7.1 69 109 2
EMH04072 7.2 69 109 2
EMH04073 7.3 69 109 2
EMH04074 7.4 69 109 2
EMH04075 7.5 69 109 2
EMH04076 7.6 75 117 2
EMH04077 7.7 75 117 2
EMH04078 7.8 75 117 2
EMH04079 7.9 75 117 2
EMH04080 8.0 75 117 2
EMH04081 8.1 75 117 2
EMH04082 8.2 75 117 2
EMH04083 8.3 75 117 2
EMH04084 8.4 75 117 2
EMH04085 8.5 75 117 2
EMH04086 8.6 81 125 2
EMH04087 8.7 81 125 2
EMH04088 8.8 81 125 2
EMH04089 8.9 81 125 2
EMH04090 9.0 81 125 2
EMH04091 9.1 81 125 2
EMH04092 9.2 81 125 2
EMH04093 9.3 81 125 2
EMH04094 9.4 81 125 2
EMH04095 9.5 81 125 2
EMH04096 9.6 87 133 2
EMH04097 9.7 87 133 2
EMH04098 9.8 87 133 2
EMH04099 9.9 87 133 2
EMH04100 10.0 87 133 2
EMH04102 10.2 87 133 2
EMH04105 10.5 87 133 2
EMH04108 10.8 94 142 2
EMH04110 11.0 94 142 2
EMH04115 11.5 94 142 2
EMH04120 12.0 101 151 2
EMH04125 12.5 101 151 2
EMH04130 13.0 101 151 2

• Carbide drills with non-standard sizes or specifications not listed above can be customized according to customer needs.
