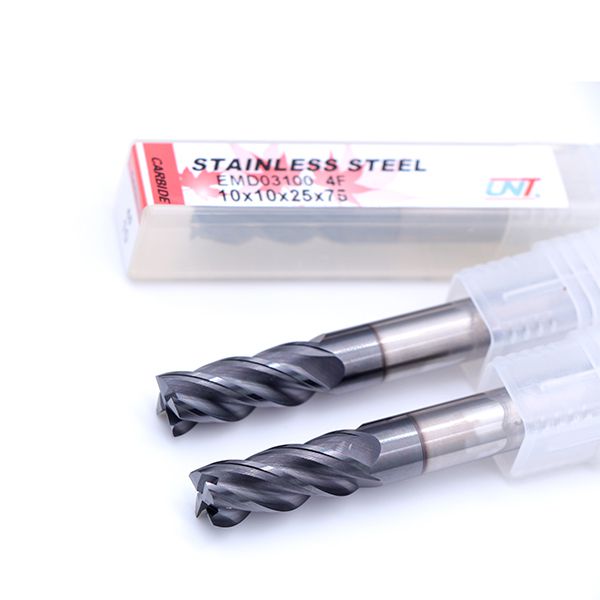

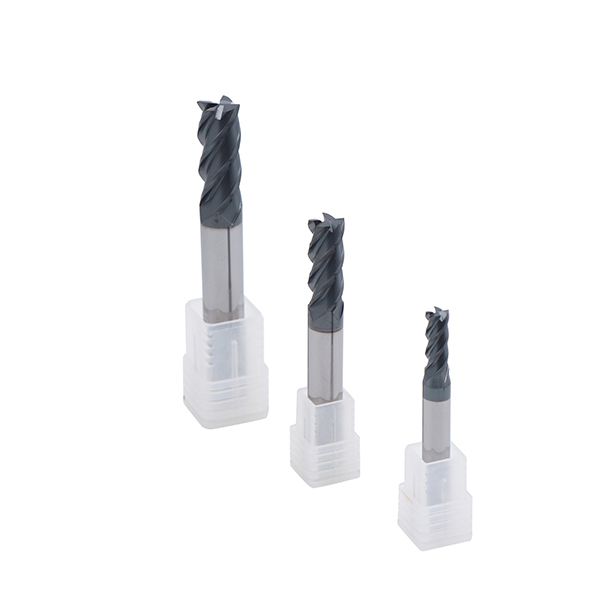

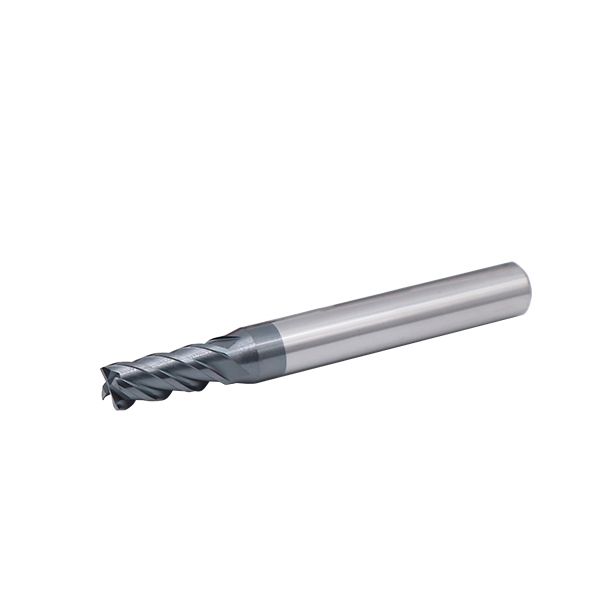

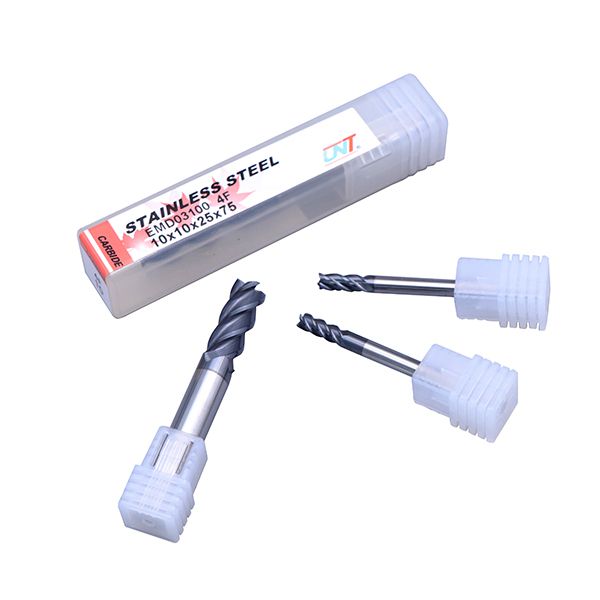

EMD03 Carbide, 4 Flutes, Unequal Reed Type for Titanium & Stainless
- Special cutting edge can increase the cutting ability, making it suitable for roughing and finishing
- Offers excellent performance when cutting low hardness materials (under HRc40) including titanium, stainless steel, alloy steel
- Because of deeper cuts and higher metal removal rates, this carbide end mill fits for high-speed machining

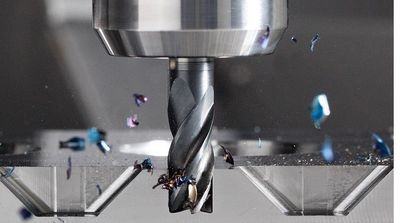

Application
Product Specifications
| Coating | TF | Work Material | Titanium & Stainless Steels, etc. |
| Helix Angle | 38°/41° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |

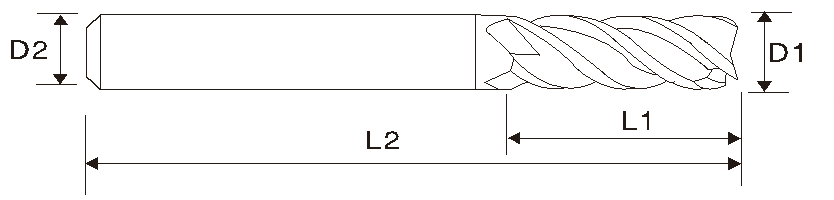

Carbide End Mill, Square, 4 Flutes (UNT-EMD03) - Unequal Reed Type
| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMD03030 | 3.0 | 4 | 8 | 50 | 4 |
| EMD03040 | 4.0 | 4 | 11 | 50 | 4 |
| EMD030306 | 3.0 | 6 | 8 | 50 | 4 |
| EMD030406 | 4.0 | 6 | 11 | 50 | 4 |
| EMD03050 | 5.0 | 6 | 13 | 50 | 4 |
| EMD03060 | 6.0 | 6 | 16 | 50 | 4 |
| EMD03080 | 8.0 | 8 | 20 | 60 | 4 |
| EMD03100 | 10.0 | 10 | 25 | 75 | 4 |
| EMD03120 | 12.0 | 12 | 30 | 75 | 4 |
| EMD03160 | 16.0 | 16 | 45 | 100 | 4 |
| EMD03200 | 20.0 | 20 | 45 | 100 | 4 |
• Non-standard size or product parameters not listed above, can be customized according to customer needs.
