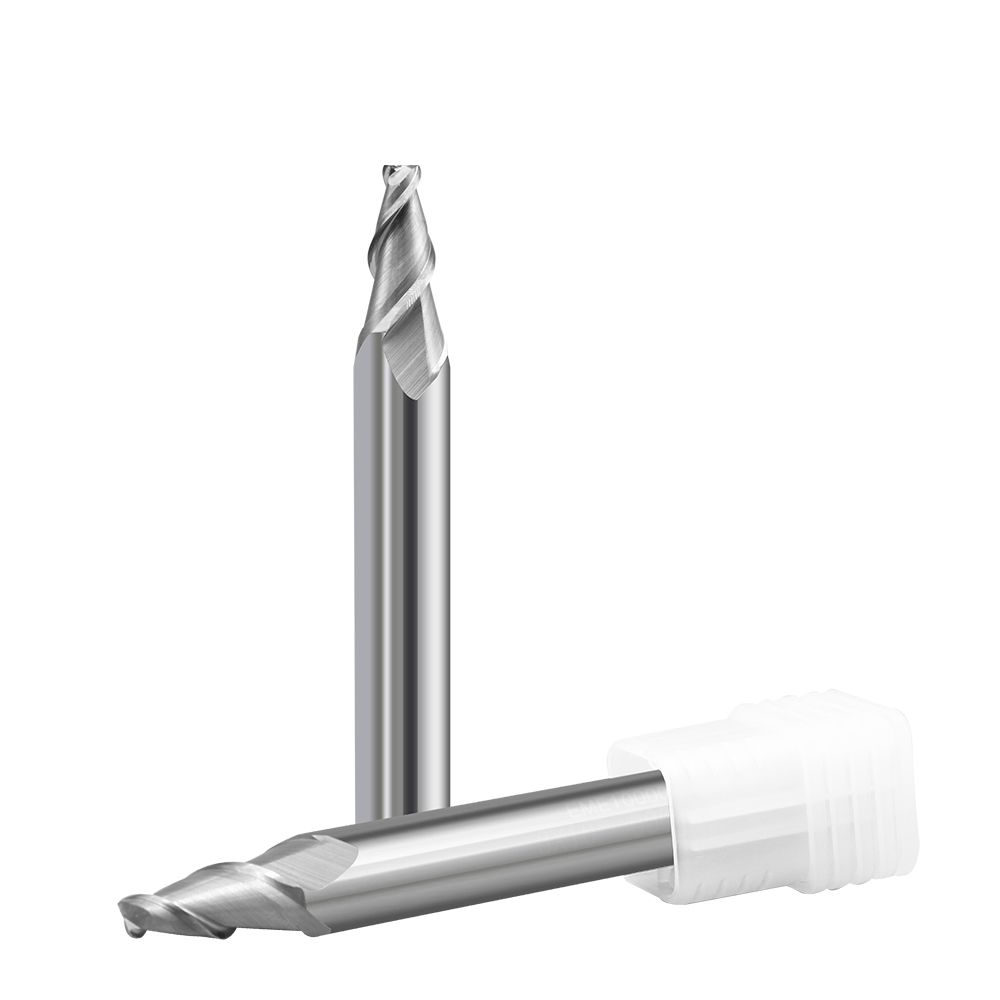

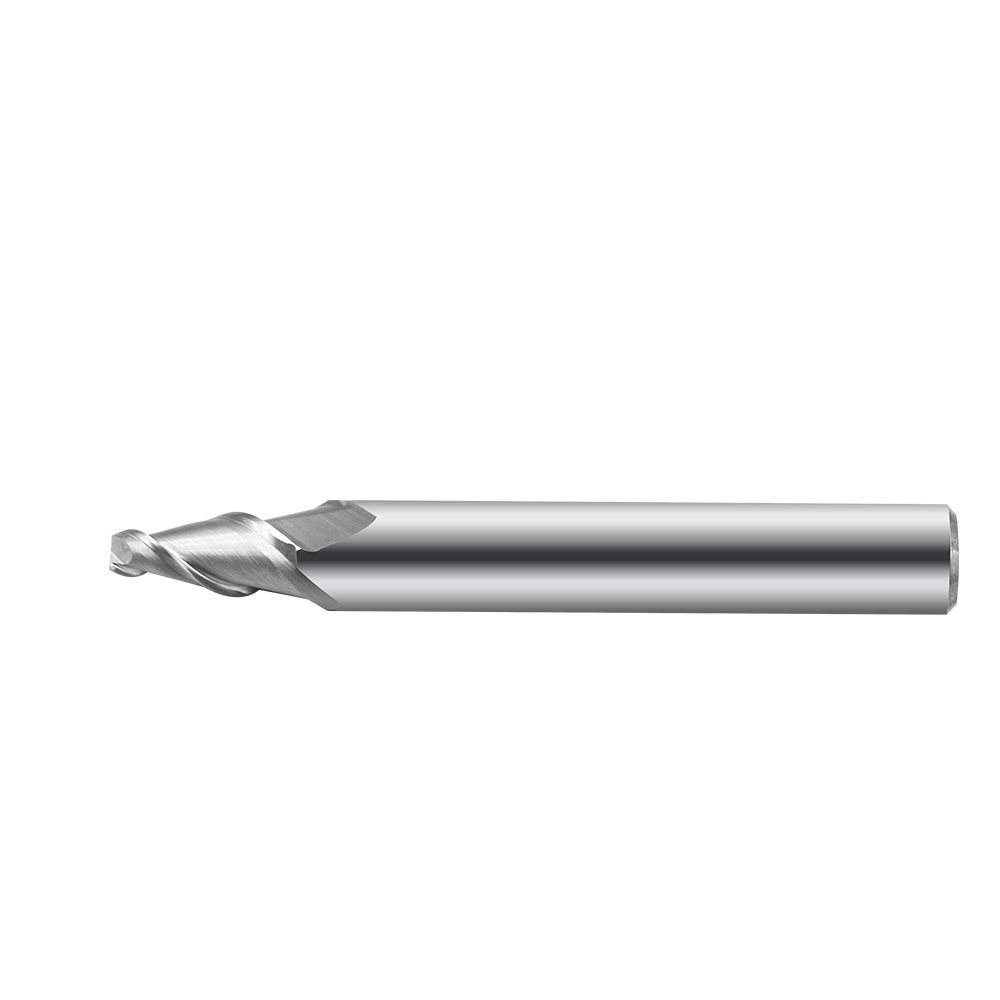

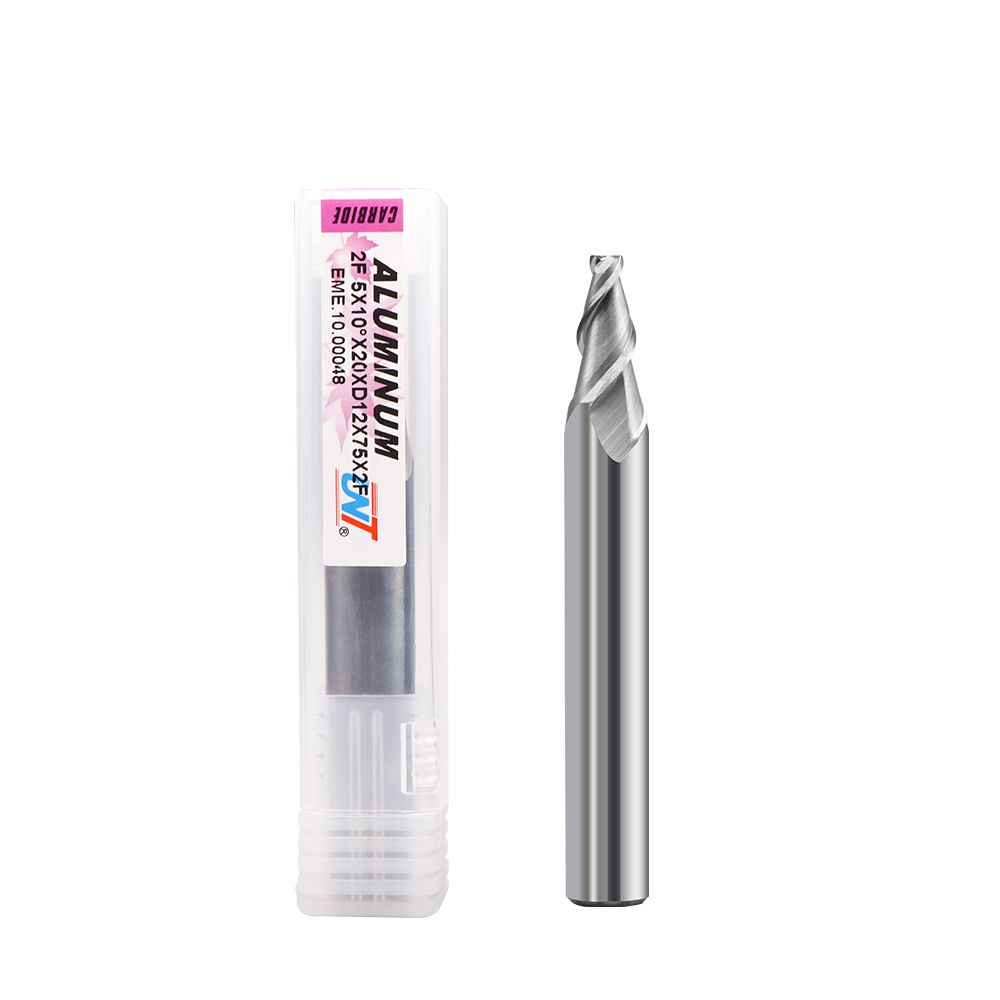

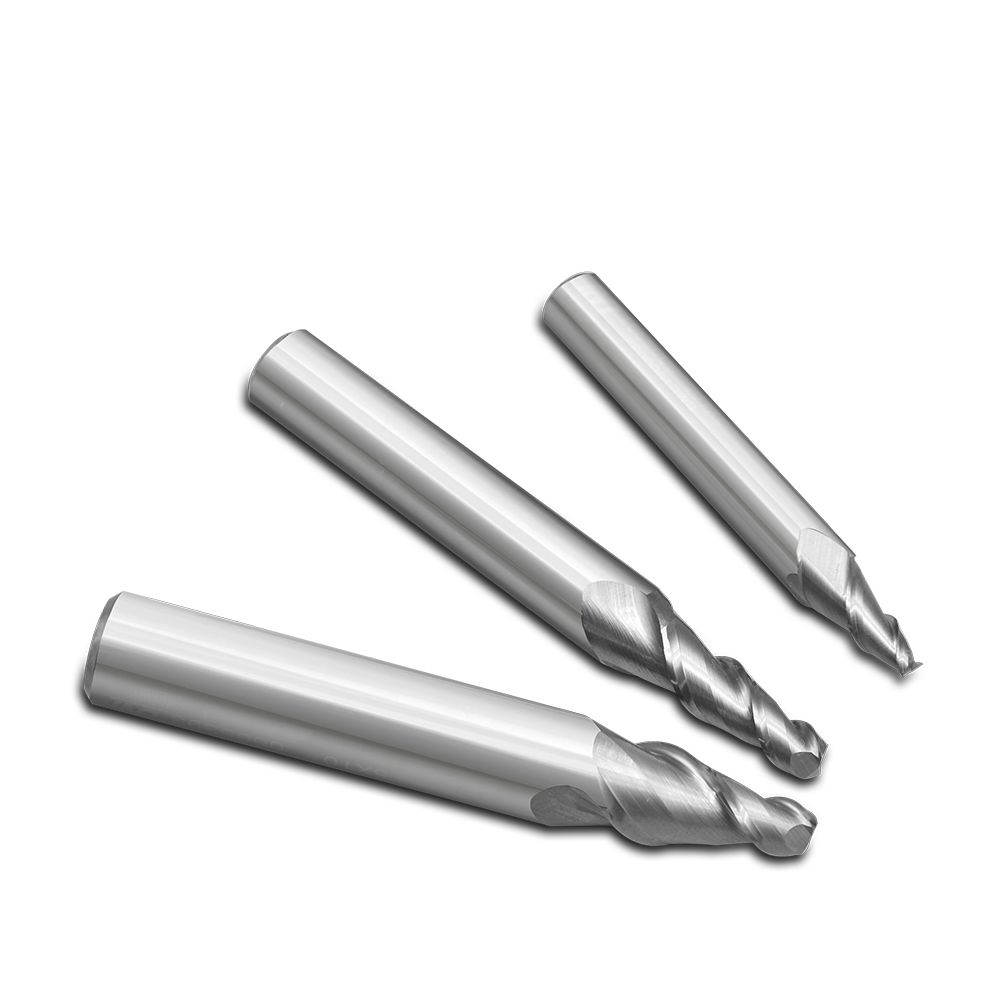

EME10 Carbide, 2 Flute Helix Taper for RIB Processing
- Designed for deep cavity profiling, deep slotting and pocketing
- High performance end mills for machining aluminum alloy, copper alloy, graphite, resin and non-ferrous material
- Taper neck angle available from 0.5°~15°
- 2 flute tapered carbide carving bits suit for working with CNC 2D/3D carving & engraving router machines.

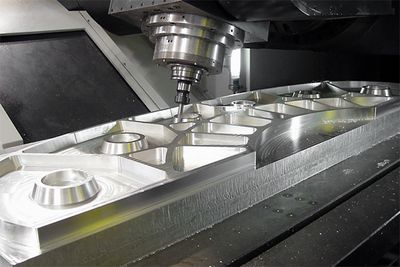

Application
Product Specifications
| Coating | Non-Coated or TiN, TiCN & TiAIN | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin, etc. |
| Helix Angle | / | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, 2 Flute Tapered Rib Cutter, for RIB Processing (UNT-EME10)

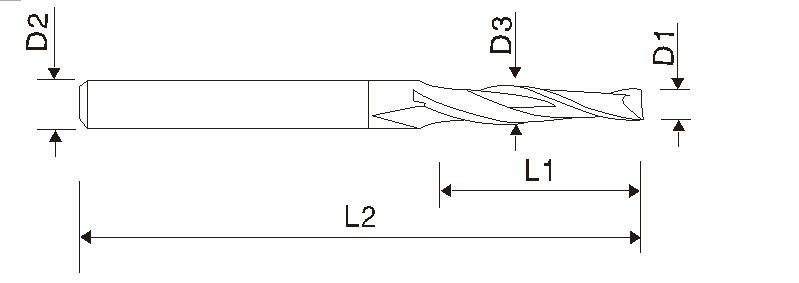

| UNT EDP # Click to Order | Mill Dia. D1 |
Taper Angle(°) |
Shank Dia. D2 |
Flute length L1 |
O.A.L L2 |
Flutes |
| EME1000025 | 3.0 | 0.5 | 4 | 10 | 50 | 2F |
| EME1000026 | 3.0 | 1 | 4 | 10 | 50 | 2F |
| EME1000027 | 3.0 | 1.5 | 4 | 10 | 50 | 2F |
| EME1000028 | 3.0 | 2 | 4 | 10 | 50 | 2F |
| EME1000029 | 3.0 | 3 | 6 | 10 | 50 | 2F |
| EME1000030 | 3.0 | 5 | 6 | 10 | 50 | 2F |
| EME1000031 | 3.0 | 7 | 8 | 12 | 60 | 2F |
| EME1000032 | 3.0 | 10 | 8 | 12 | 60 | 2F |
| EME1000033 | 4.0 | 0.5 | 6 | 15 | 50 | 2F |
| EME1000034 | 4.0 | 1 | 6 | 15 | 50 | 2F |
| EME1000035 | 4.0 | 1.5 | 6 | 15 | 50 | 2F |
| EME1000036 | 4.0 | 2 | 6 | 15 | 50 | 2F |
| EME1000037 | 4.0 | 3 | 6 | 15 | 50 | 2F |
| EME1000038 | 4.0 | 5 | 8 | 15 | 60 | 2F |
| EME1000041 | 5.0 | 0.5 | 6 | 20 | 50 | 2F |
| EME1000042 | 5.0 | 1 | 6 | 20 | 50 | 2F |
| EME1000043 | 5.0 | 1.5 | 6 | 20 | 50 | 2F |
| EME1000044 | 5.0 | 2 | 8 | 20 | 60 | 2F |
| EME1000045 | 5.0 | 3 | 8 | 20 | 60 | 2F |
| EME1000046 | 5.0 | 6 | 10 | 20 | 75 | 2F |
| EME1000048 | 5.0 | 10 | 12 | 20 | 75 | 2F |
| EME1000050 | 2.0 | 3 | 4 | 6 | 50 | 2F |
| EME1000051 | 2.0 | 7 | 6 | 6 | 50 | 2F |
| EME1000052 | 2.0 | 5 | 6 | 6 | 75 | 2F |
| EME1000053 | 2.0 | 10 | 8 | 6 | 60 | 2F |
| EME1000054 | 3.0 | 3 | 8 | 10 | 75 | 2F |
| EME1000055 | 3.0 | 7 | 10 | 10 | 75 | 2F |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
