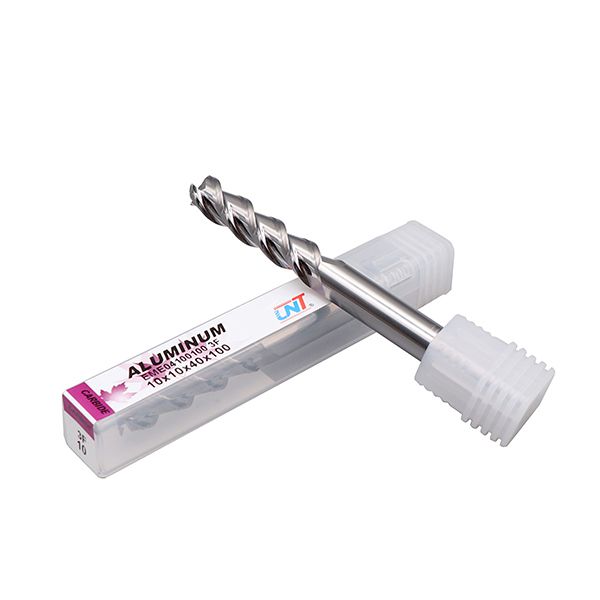

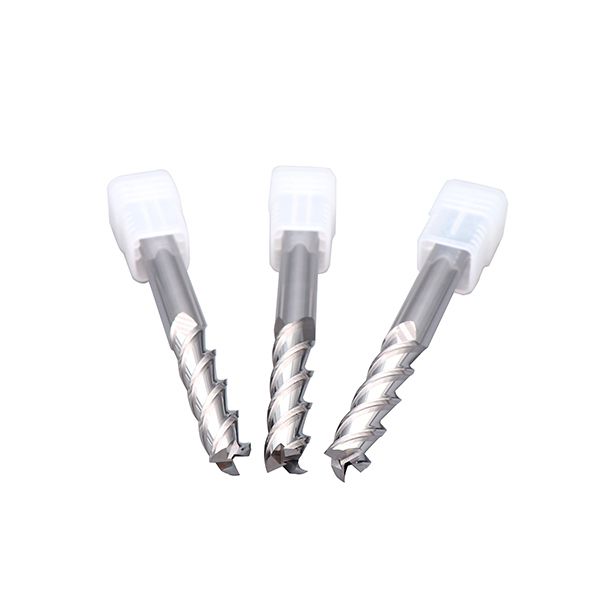

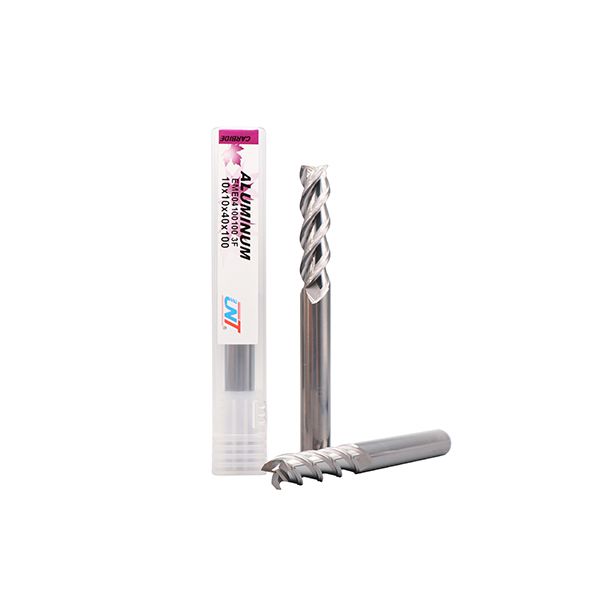

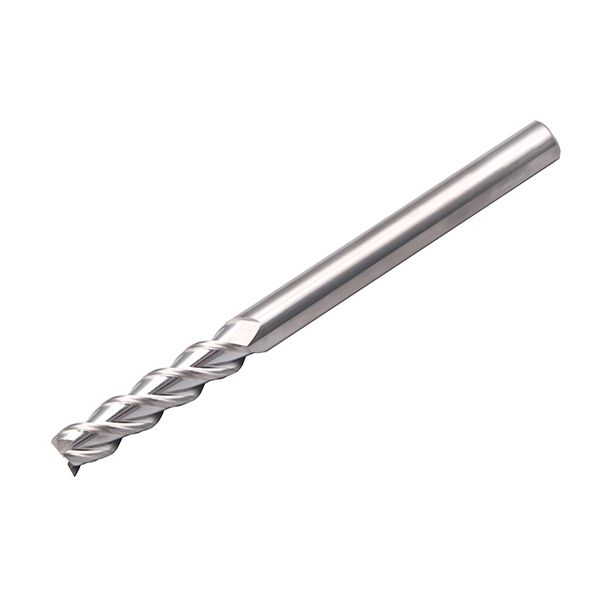

EME04 UNT Alu-Power 3 Flute with Long Length Carbide
- High performance in machining aluminum alloy / copper alloy / graphite / resin and non-ferrous material
- 3 Flute design “To the center” - all 3 flutes come to the center, resulting in good surface finishes
- Excellent performance with high feed, high RPM, high chip removal during heavy cutting
- Center & slotting cutting

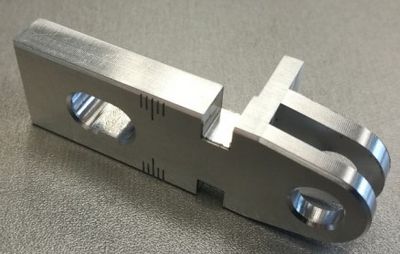

Application
Product Specifications
| Coating | Non-Coated or TiN, TiCN & TiAIN | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide 3 Flute End Mill, 45° Helix, Long Length – Slotting (UNT-EME04)

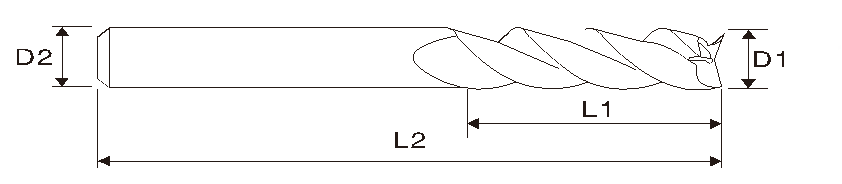

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EME04010075 | 1.0 | 4 | 5 | 75 | 3 |
| EME04015075 | 1.5 | 4 | 6 | 75 | 3 |
| EME04020075 | 2.0 | 4 | 8 | 75 | 3 |
| EME04025075 | 2.5 | 4 | 8 | 75 | 3 |
| EME04030075 | 3.0 | 4 | 10 | 75 | 3 |
| EME04040075 | 4.0 | 4 | 12 | 75 | 3 |
| EME04040100 | 4.0 | 4 | 12 | 100 | 3 |
| EME04050075 | 5.0 | 6 | 16 | 75 | 3 |
| EME04050100 | 5.0 | 6 | 16 | 100 | 3 |
| EME04060075 | 6.0 | 6 | 25 | 75 | 3 |
| EME04060100 | 6.0 | 6 | 30 | 100 | 3 |
| EME04080075 | 8.0 | 8 | 25 | 75 | 3 |
| EME04080100 | 8.0 | 8 | 35 | 100 | 3 |
| EME04100100 | 10.0 | 10 | 40 | 100 | 3 |
| EME04120100 | 12.0 | 12 | 45 | 100 | 3 |
| EME04160150 | 16.0 | 16 | 70 | 150 | 3 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
