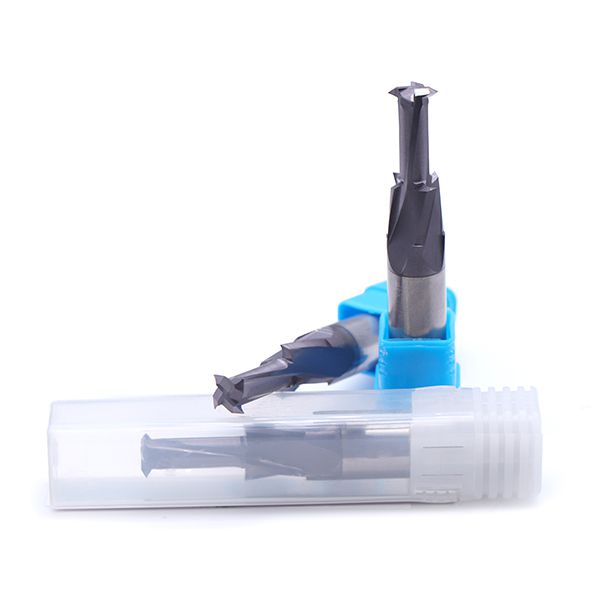

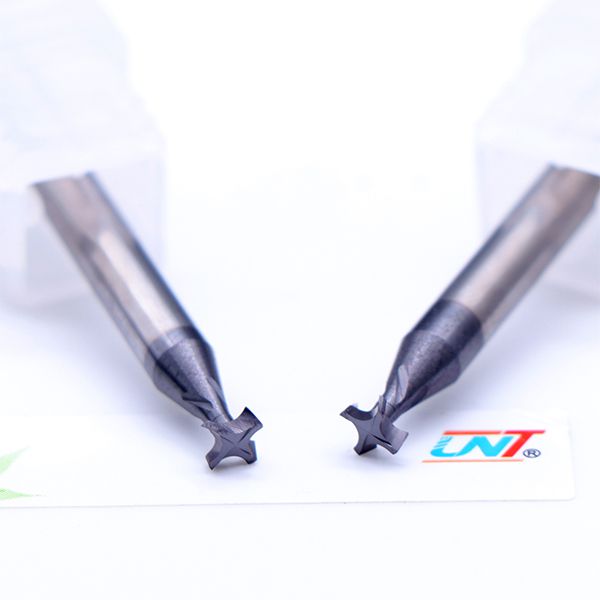

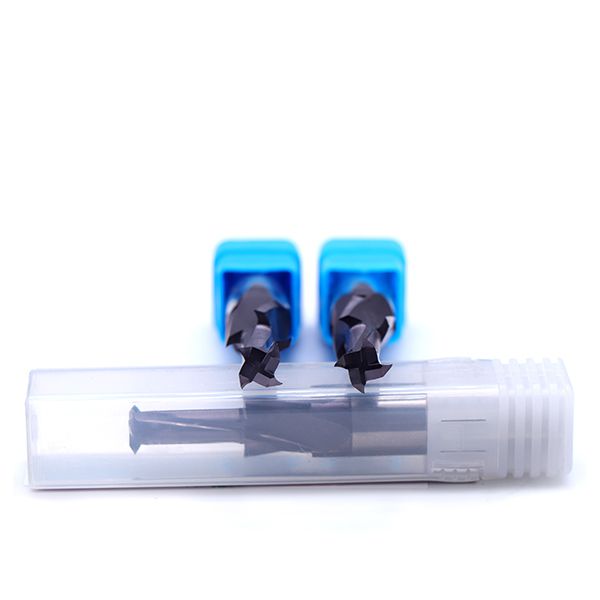

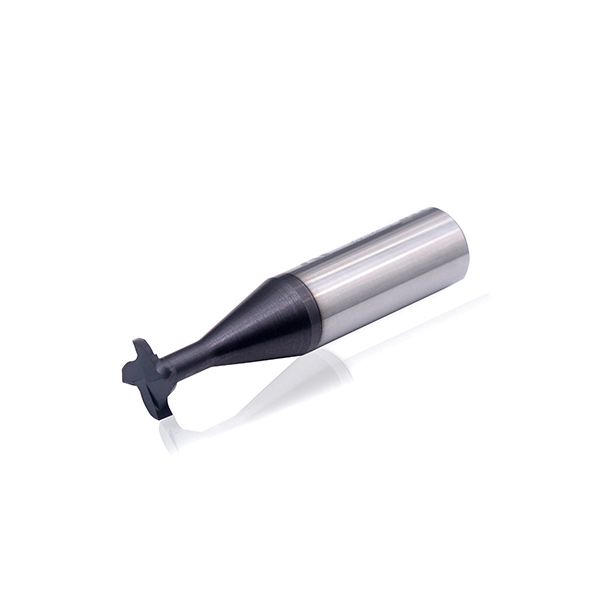

EMA19 Keyseat Cutter, T-slot Cutting
- Optimized flute count and specialized internal geometry for hardened steels with hardness 45-68HRc
- Special coating offers superior hardness and heat resistance
- Both sides of the cutter are dished for clearance
- Keyseat cutter down to 1.0mm diameter

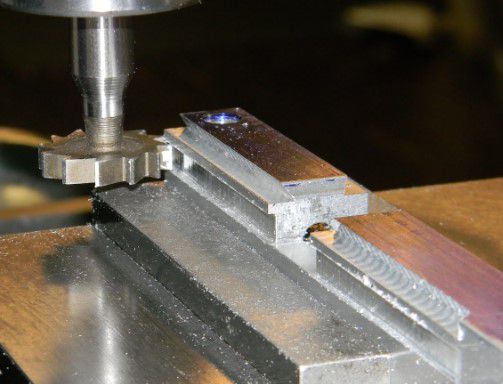

Application
Product Specifications
| Coating | AITiN /TiALN /TiSiN /NaCO /DLC /Diamond |
HRC | HRC40/46/56/65 |
| Helix Angle | / | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |

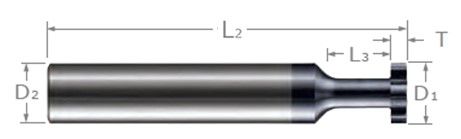

Carbide, Keyseat Cutter, T-slot Cutting (UNT-EMA19）
| Cutter Dia. | Cutter Width |
Neck Dia.. | Neck Length | RDOC （Radial depth of cut） | Shank Dia. | O.A.L. | Flutes | ALTiN/NANO Coated |
Uncoated | |||
| D1 | +.000" | L2 | +.0005" | L3 | +.020" | X | D2 | L1 | UNT EDP# Click to Order | UNT EDP# Click to Order | ||
| -.002" | -.0005" | -.000" | ||||||||||
| 1/8 | .015(1/64) | 1/16 | 3/16 (1.5x) | .022 | 1/8 | 1—1/2 | 8 | |
|
|||
| .031(1/32) | 1/16 | 3/16 (1.5x) | .022 | 1/8 | 1—1/2 | 8 | |
|
||||
| .062(1/16) | 1/16 | 3/16 (1.5x) | .022 | 1/8 | 1—1/2 | 8 | |
|
||||
| .093(3/32) | 1/16 | 3/16 (1.5x) | .022 | 1/8 | 1—1/2 | 8 | |
|
||||
| 3/16 | .031(1/32) | 3/32 | 9/32 (1.5x) | .037 | 3/16 | 2 | 8 | |
|
|||
| .062(1/16) | 3/32 | 9/32 (1.5x) | .037 | 3/16 | 2 | 8 | |
|
||||
| .093(3/32) | 3/32 | 9/32 (1.5x) | .037 | 3/16 | 2 | 8 | |
|
||||
| 1/4 | .015(1/64) | 1/8 | 3/8 (1.5x) | .048 | 1/4 | 2—1/2 | 8 | |
|
|||
| .031(1/32) | 1/8 | 3/8 (1.5x) | .048 | 1/4 | 2—1/2 | 8 | |
|
||||
| .047(3/64) | 1/8 | 3/8 (1.5x) | .048 | 1/4 | 2—1/2 | 8 | |
|
||||
| .062(1/16) | 1/8 | 3/8 (1.5x) | .048 | 1/4 | 2—1/2 | 8 | |
|
||||
| .078(5/64) | 1/8 | 3/8 (1.5x) | .048 | 1/4 | 2—1/2 | 8 | |
|
||||
| .093(3/32) | 1/8 | 3/8 (1.5x) | .048 | 1/4 | 2—1/2 | 8 | |
|
||||
| .125(1/8) | 1/8 | 3/8 (1.5x) | .048 | 1/4 | 2—1/2 | 8 | |
|
||||
| 5/16 | .062(1/16) | 5/32 | 15/3 (1.5x) | .063 | 5/16 | 2—1/2 | 8 | |
|
|||
| .093(3/32) | 5/32 | 15/32 (1.5x) | .063 | 5/16 | 2—1/2 | 8 | |
|
||||
| .125(1/8) | 5/32 | 15/32 (1.5x) | .063 | 5/16 | 2—1/2 | 8 | |
|
||||
| 3/8 | .031(1/32) | 3/16 | 9/16 (1.5x) | .074 | 3/8 | 2—1/2 | 10 | |
|
|||
| .062(1/16) | 3/16 | 9/16 (1.5x) | .074 | 3/8 | 2—1/2 | 10 | |
|
||||
| .093(3/32) | 3/16 | 9/16 (1.5x) | .074 | 3/8 | 2—1/2 | 10 | |
|
||||
| .125(1/8) | 3/16 | 9/16 (1.5x) | .074 | 3/8 | 2—1/2 | 10 | |
|
||||
| .187(3/16) | 3/16 | 9/16 (1.5x) | .074 | 3/8 | 2—1/2 | 10 | |
|
||||
| .250(1/4) | 3/16 | 9/16 (1.5x) | .074 | 3/8 | 2—1/2 | 10 | |
|
||||
| 1/2 | .031(1/32) | 1/4 | 3/4 (1.5x) | .105 | 1/2 | 3 | 10 | |
|
|||
| .047(3/64) | 1/4 | 3/4 (1.5x) | .105 | 1/2 | 3 | 10 | |
|
||||
| .062(1/16) | 1/4 | 3/4 (1.5x) | .105 | 1/2 | 3 | 10 | |
|
||||
| .078(5/64) | 1/4 | 3/4 (1.5x) | .105 | 1/2 | 3 | 10 | |
|
||||
| .093(3/32) | 1/4 | 3/4 (1.5x) | .105 | 1/2 | 3 | 10 | |
|
||||
| .125(1/8) | 1/4 | 3/4 (1.5x) | .105 | 1/2 | 3 | 10 | |
|
||||
| .156(5/32) | 1/4 | 3/4 (1.5x) | .105 | 1/2 | 3 | 10 | |
|
||||
| .187(3/16) | 1/4 | 3/4 (1.5x) | .105 | 1/2 | 3 | 10 | |
|
||||
| .250(1/4) | 1/4 | 3/4 (1.5x) | .105 | 1/2 | 3 | 10 | |
|
||||
| • Keyseat cutters with non-standard sizes or specifications not listed above can be customized according to customer needs. | ||||||||||||
