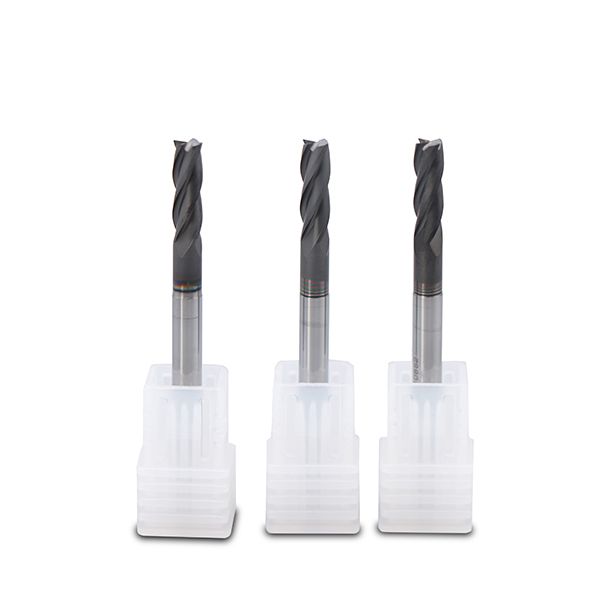

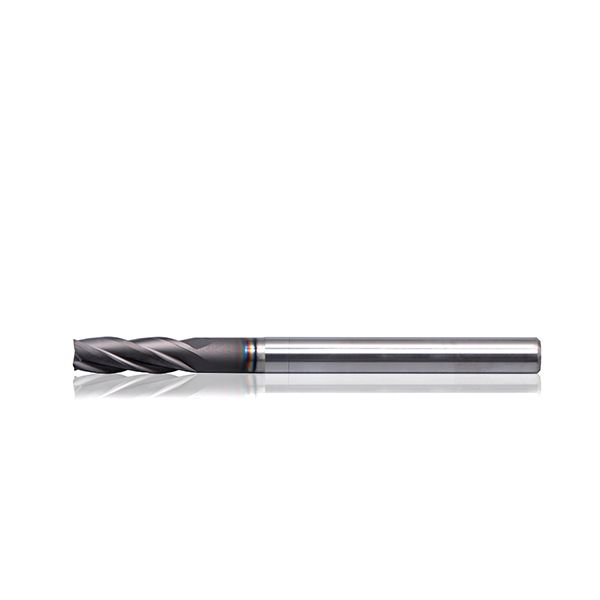

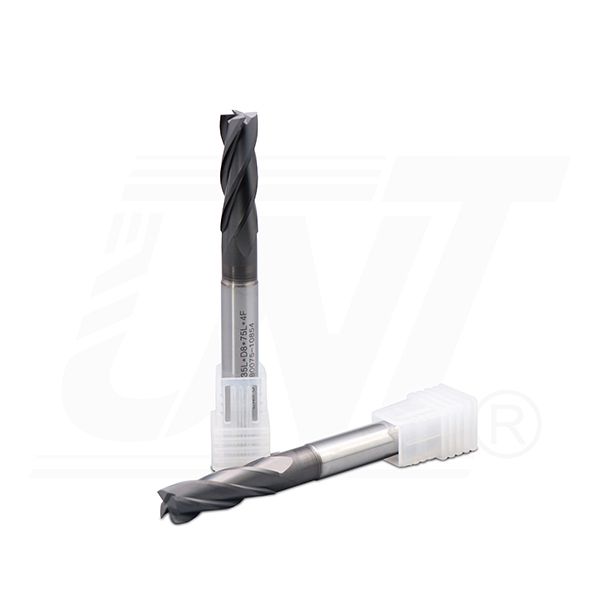

EMFC.02 Diamond Coated End Mill, 4 Flute Square End Mill with Neck
- EMF series carbide surface features a diamond coating with hardness comparable to that of natural diamond
- Designed with extreme hardness for long life (10-50x) in graphite, composites & high silicon aluminum, plastic, wood; processed with the thickest diamond specially for graphite, carbon fibre and fibre glass
- High performance on processing graphite electrodes and 3D glass mould

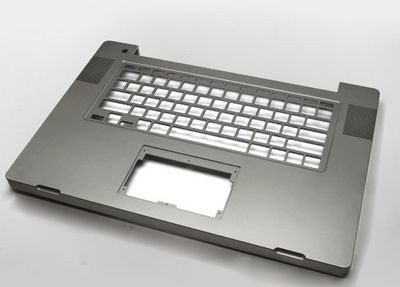

Application
Product Specifications
| Coating | Diamond Coated | Work Material | Aluminum Alloy / Copper Alloy / Graphite / 3D Glass / Resin |
| Helix Angle | 30° to 40° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, Diamond coated Milling Tools, 4 Flute square with Neck (UNT-EMF02)

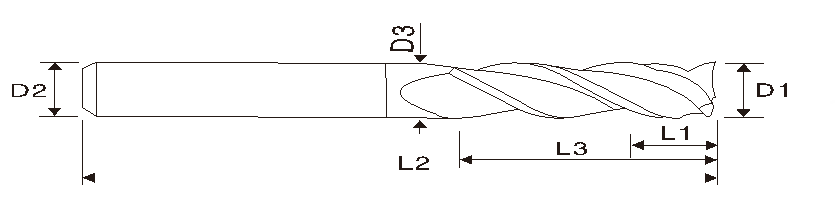

| UNT EDP # Click to Order | Mill Dia. D1 |
Effective Length L3 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMFC.02.02005006 | 2.0 | 6 | 4 | 6 | 50 | 4 |
| EMFC.02.02005012 | 2.0 | 12 | 4 | 6 | 50 | 4 |
| EMFC.02.02005016 | 2.0 | 16 | 4 | 6 | 50 | 4 |
| EMFC.02.02007520 | 2.0 | 20 | 4 | 6 | 75 | 4 |
| EMFC.02.02007530 | 2.0 | 30 | 4 | 6 | 75 | 4 |
| EMFC.02.02010040 | 2.0 | 40 | 4 | 6 | 100 | 4 |
| EMFC.02.03005015 | 3.0 | 15 | 4 | 10 | 50 | 4 |
| EMFC.02.030050153 | 3.0 | 15 | 3 | 10 | 50 | 4 |
| EMFC.02.03005020 | 3.0 | 20 | 4 | 10 | 75 | 4 |
| EMFC.02.03007520 | 3.0 | 20 | 4 | 10 | 75 | 4 |
| EMFC.02.030075203 | 3.0 | 20 | 3 | 10 | 75 | 4 |
| EMFC.02.03007525 | 3.0 | 25 | 4 | 12 | 75 | 4 |
| EMFC.02.030075253 | 3.0 | 25 | 3 | 12 | 75 | 4 |
| EMFC.02.03010030 | 3.0 | 30 | 4 | 12 | 100 | 4 |
| EMFC.02.030100303 | 3.0 | 30 | 3 | 12 | 100 | 4 |
| EMFC.02.04005020 | 4.0 | 20 | 4 | 12 | 50 | 4 |
| EMFC.02.04007525 | 4.0 | 25 | 4 | 15 | 75 | 4 |
| EMFC.02.04007530 | 4.0 | 30 | 4 | 20 | 75 | 4 |
| EMFC.02.04010030 | 4.0 | 30 | 4 | 20 | 100 | 4 |
| EMFC.02.06007520 | 6.0 | 20 | 6 | 20 | 75 | 4 |
| EMFC.02.06007530 | 6.0 | 30 | 6 | 20 | 75 | 4 |
| EMFC.02.06010040 | 6.0 | 40 | 6 | 25 | 100 | 4 |
| EMFC.02.06015060 | 6.0 | 60 | 6 | 25 | 150 | 4 |
| EMFC.02.08007535 | 8.0 | 35 | 8 | 25 | 75 | 4 |
| EMFC.02.08010045 | 8.0 | 45 | 8 | 30 | 100 | 4 |
| EMFC.02.08011060 | 8.0 | 60 | 8 | 30 | 110 | 4 |
| EMFC.02.08015060 | 8.0 | 60 | 8 | 30 | 150 | 4 |
| EMFC.02.10010040 | 10.0 | 40 | 10 | 30 | 100 | 4 |
| EMFC.02.10010050 | 10.0 | 50 | 10 | 35 | 100 | 4 |
| EMFC.02.10012060 | 10.0 | 60 | 10 | 35 | 120 | 4 |
| EMFC.02.10015060 | 10.0 | 60 | 10 | 35 | 150 | 4 |
| EMFC.02.12007540 | 12.0 | 40 | 12 | 30 | 75 | 4 |
| EMFC.02.12010060 | 12.0 | 60 | 12 | 40 | 100 | 4 |
| EMFC.02.12015060 | 12.0 | 60 | 12 | 40 | 150 | 4 |
| EMFC.02.16015080 | 16.0 | 80 | 16 | 40 | 150 | 4 |
| EMFC.02.160180100 | 16.0 | 100 | 16 | 40 | 180 | 4 |
