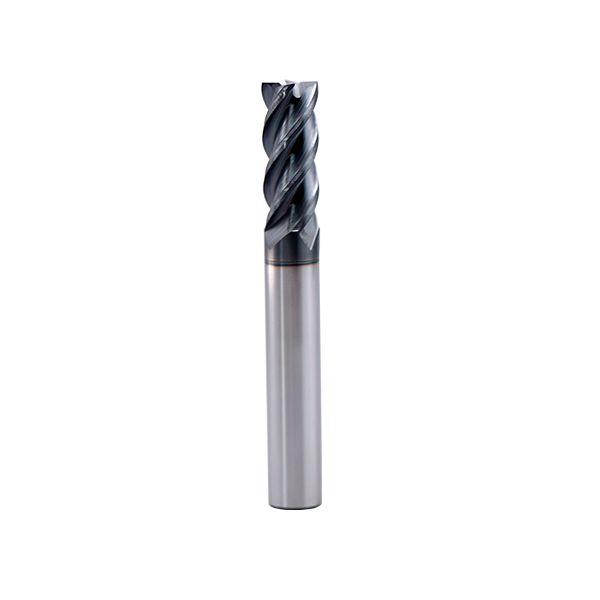

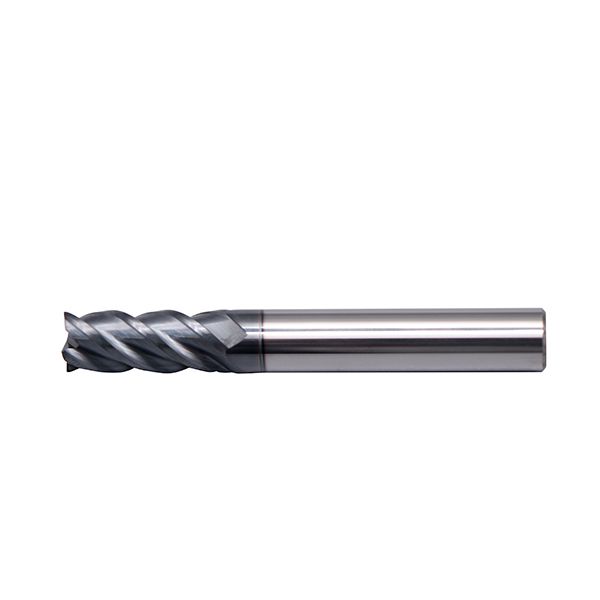

EMD06 Carbide, 5 flute end mills for High-speed Machining
- Stable Cutting Edge - 5/6 flute design and large core diameter makes it suitable for high-speed machining
- Suits for the machining of difficult-to-cut materials such as Ni-Co Alloy, Titanium & SUS with a hardness up to 40HRC
- Optimized cutting tool for both roughing and roughing operations

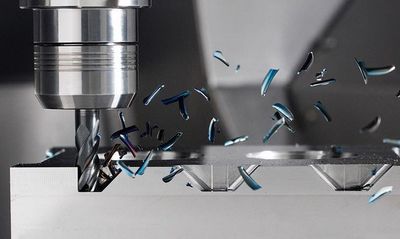

Application
Product Specifications
| Coating | AITiN /TiAlN | Work Material | Titanium & Stainless Steels, etc. |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
6 & 8 Flute End Mills for Stainless Steel, Square Sharp (UNT-EMD06)

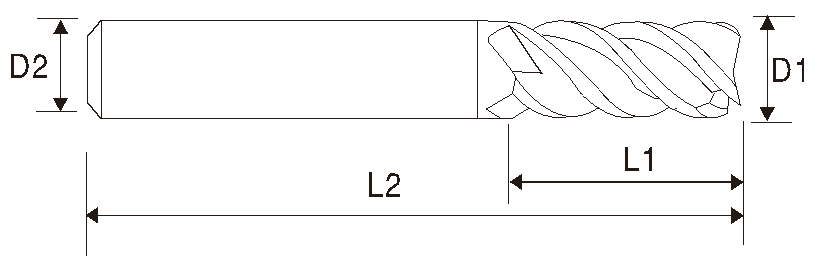

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMD06060 | 6.0 | 6 | 13 | 60 | 6 |
| EMD06070 | 7.0 | 8 | 16 | 60 | 6 |
| EMD06080 | 8.0 | 8 | 19 | 60 | 6 |
| EMD06090 | 9.0 | 10 | 19 | 75 | 6 |
| EMD06100 | 10.0 | 10 | 22 | 75 | 6 |
| EMD06120 | 12.0 | 12 | 26 | 75 | 6 |
| EMD06140 | 14.0 | 14 | 26 | 80 | 6 |
| EMD06160 | 16.0 | 16 | 32 | 80 | 6 |
| EMD06180 | 18.0 | 18 | 32 | 90 | 8 |
| EMD06200 | 20.0 | 20 | 38 | 100 | 8 |
| EMD06250 | 25.0 | 25 | 44 | 100 | 8 |
• Non-standard size or product parameters not listed above, can be customized according to customer needs.
