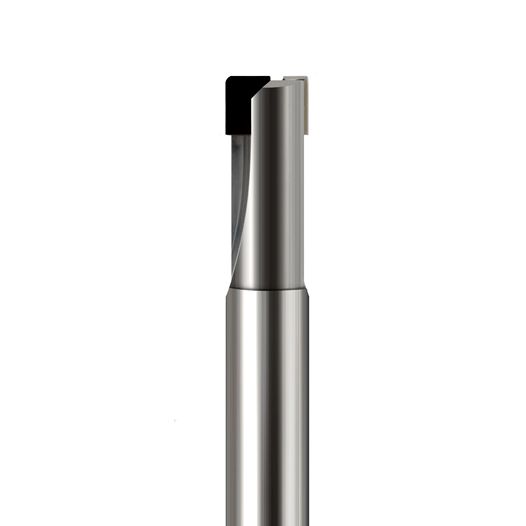

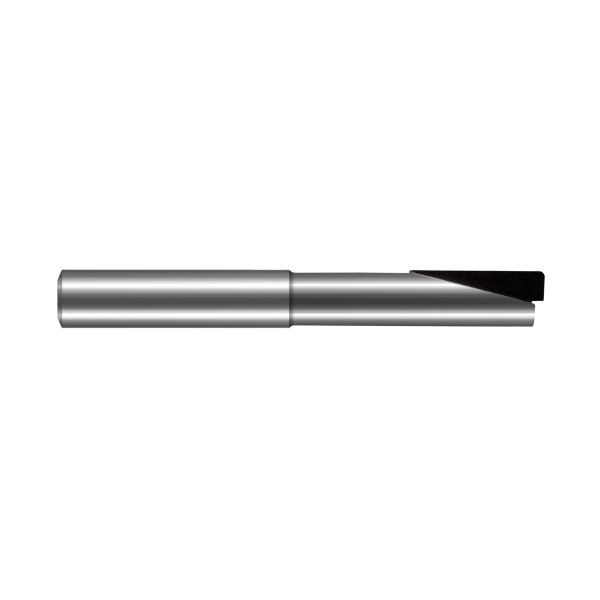

PCD End Mill, Corner Radius
- PCD end mills have a diamond coating with a hardness comparable to that of natural diamond
- Designed with extreme hardness for long life (10-50x) in graphite, composites & high silicon aluminum, plastic, wood; processed with the thickest diamond specially for graphite, carbon fibre and fibre glass
Product Specifications
| Coating | Diamond | Thickness | 0-5mm |
| Helix Angle | 35°/36°/37° | Finishing | Polished |
| Size | Multi sizes | Shape | Corner Radius |
Diamond Coated PCD Milling Tools, 2 Flute/4 Flute, Corner Radius
| Cutter Dia. | Length Of Cut | Overall Reach | Corner Radius | Flutes | Shank Dia. | UNT TOOL# Click to Order | ||||
| D1 | +.000" | L2 | +.020" | L3 | +.050" | R | +.001" | D2 | ||
| -.002" | -.000" | -.000" | -.001" | |||||||
| 3/32 | 3/16 | 3/8 | .001 | 1 | 1/8 |
|
||||
| 1/8 | 1/4 | 1/2 | .015 | 1 | 1/8 |
|
||||
| 3/16 | 1/4 | 5/8 | .015 | 2 | 3/16 |
|
||||
| 1/4 | 1/4 | 3/4 | .010 | 2 | 1/4 |
|
||||
| 1/4 | 1/4 | 3/4 | .030 | 2 | 3/8 |
|
||||
| 1/4 | 1/4 | 3/4 | .060 | 2 | 1/2 |
|
||||
| 3/8 | 1/4 | 15/16 | .030 | 2 | 5/8 |
|
||||
| 1/2 | 1/4 | 1 | .030 | 2 | 3/4 |
|
||||
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
