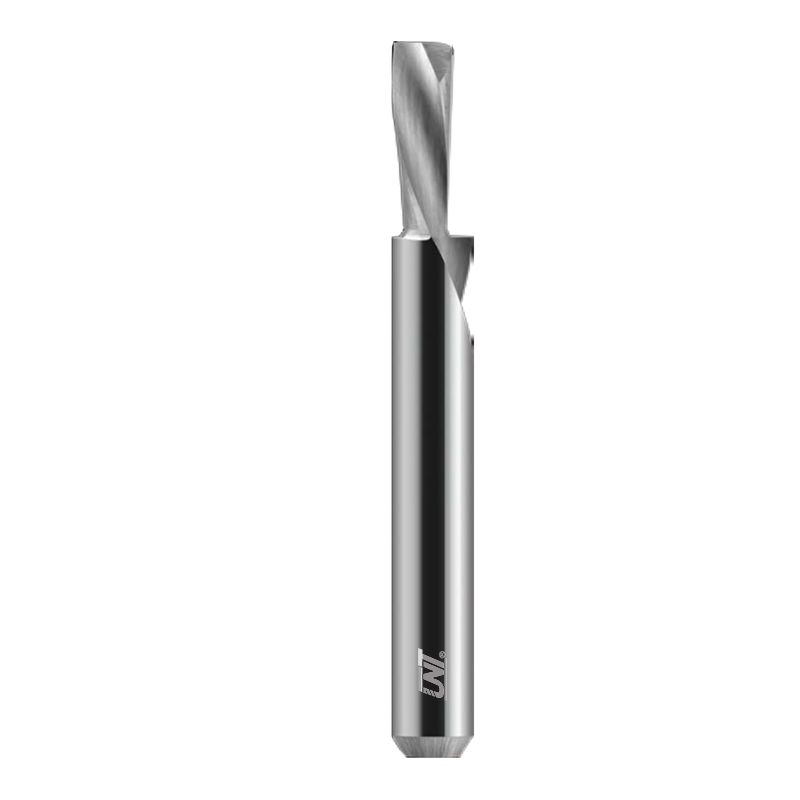

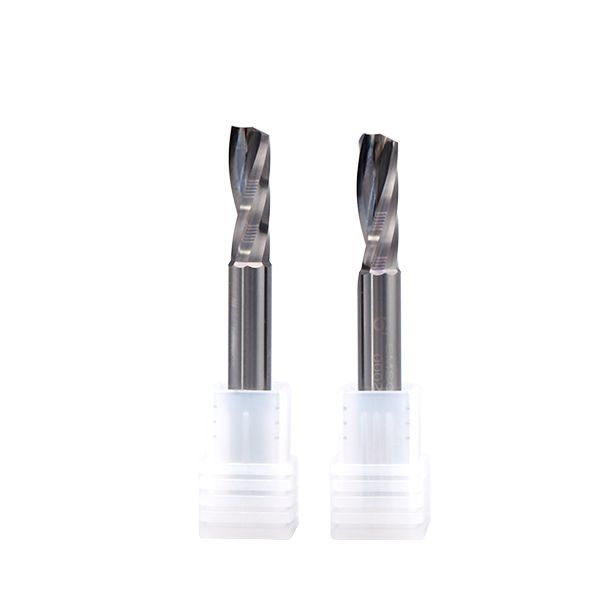

EMS.03 Single Flute Upcut Spiral Bit
- Designed to machine acrylic, PVC, resin, plastic, aluminum, copper, bronze, brass, wood, chipboard, GRP/CRP composite board, melamine board, etc.
- Left hand spiral, right hand cut
- Prevents fraying and chipout of top edge of work piece

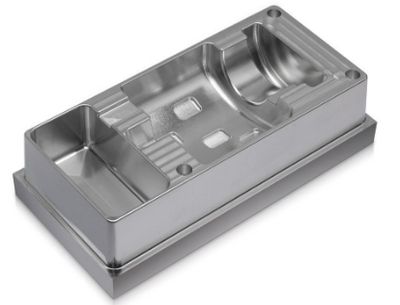

Application
Product Specifications
| Coating | DLC/Diamond | Work Material | Aluminum / Copper Alloy / Acrylic / Wood / Resin |
| Helix Angle | 30°/35°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |

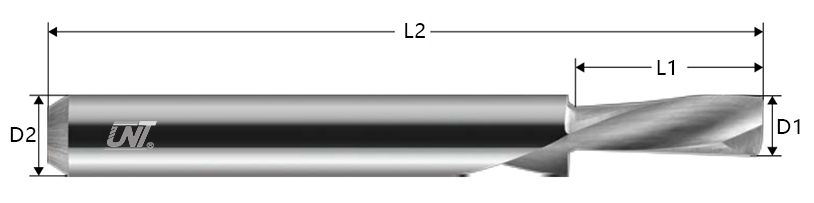

Single Flute Upcut Spiral Bit, Left hand Spiral for Right Hand Cut
| Mill Dia D1 |
Shank Dia D2 |
Flute length L1 |
O.A.L L2 |
AITin Coated Click to Order | Non-Coated Click to Order |
| 0.5 | 4 | 2.0 | 50 | |
|
| 0.8 | 4 | 3.0 | 50 | |
|
| 1.0 | 4 | 3.0 | 50 | |
|
| 1.2 | 4 | 4.0 | 50 | |
|
| 1.5 | 4 | 4.0 | 50 | |
|
| 2.0 | 4 | 6.0 | 50 | |
|
| 0.5 | 3 | 2.0 | 38 | |
|
| 0.8 | 3 | 3.0 | 38 | |
|
| 1.0 | 3 | 3.0 | 38 | |
|
| 1.2 | 3 | 4.0 | 38 | |
|
| 1.5 | 3 | 4.0 | 38 | |
|
| 2.0 | 3 | 6.0 | 38 | |
|
| 1.5 | 6 | 7.0 | 50 | |
|
| 2.0 | 6 | 7.0 | 50 | |
|
| 3.0 | 6 | 8.0 | 50 | |
|
| 4.0 | 6 | 10.0 | 50 | |
|
| 5.0 | 6 | 12.0 | 50 | |
|
| 6.0 | 6 | 14.0 | 50 | |
|
| 6.0 | 6 | 20.0 | 60 | |
|
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
