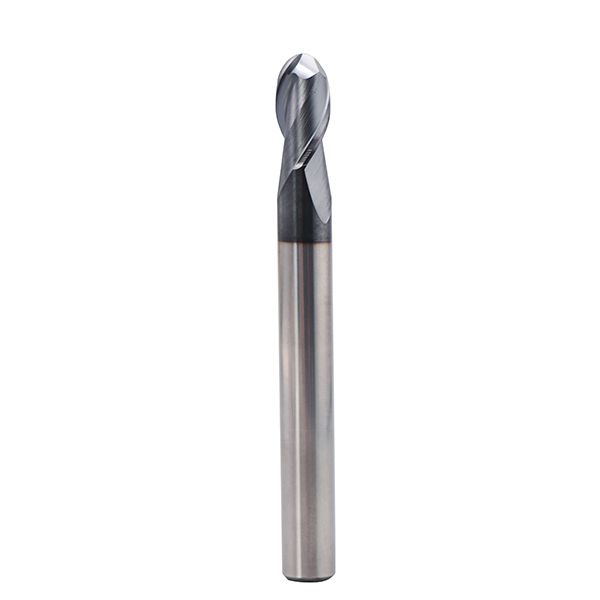

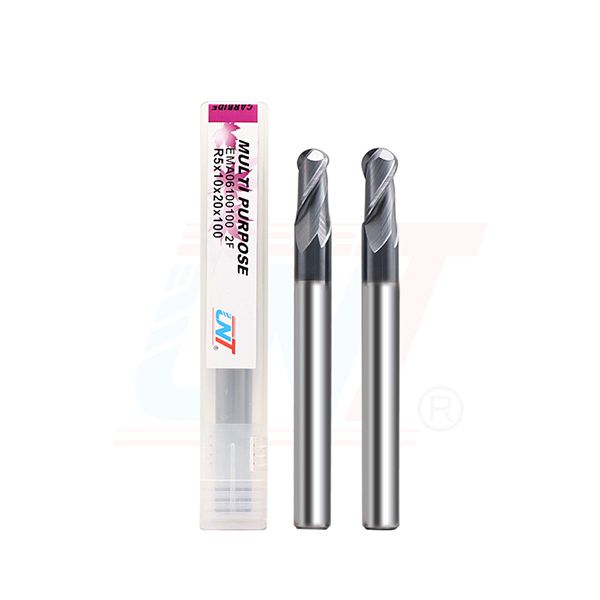

EMA06 2 Flute Ball Nose End Mill, 37°Helix, Long Length
- 4D flute, variable helix design (Approx. 37°) for improved slotting and roughing
- Oerlikon Balzers coating offers superior hardness and high performance
- Cutter Dia. down to 0.01mm
- Used for profile milling and slotting
- Chamfer design for easy installation

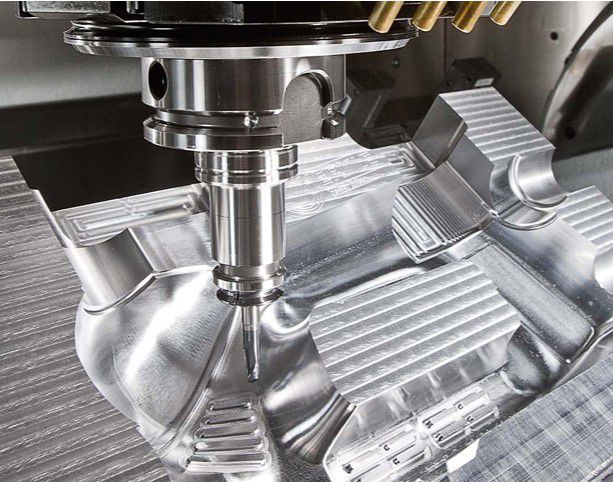

Application
Product Specifications
| Coating | AITiN /TiALN /TiAISiN AITiSiN |
HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, 2 Flute Ball Nose End Mill - Long Length, for Copy Milling (UNT-EMA06)

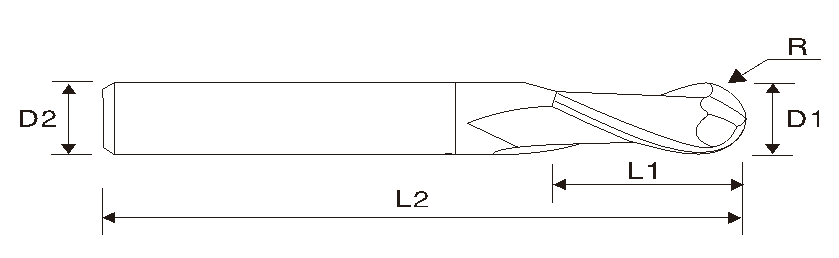

| UNT EDP # Click to Order | Radius R |
Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMA06010075 | R0.5 | 1.0 | 4 | 2 | 75 | 2 |
| EMA06015075 | R0.75 | 1.5 | 4 | 3 | 75 | 2 |
| EMA06020075 | R1.0 | 2.0 | 4 | 4 | 75 | 2 |
| EMA06025075 | R1.25 | 2.5 | 4 | 5 | 75 | 2 |
| EMA06033075 | R1.5 | 3.0 | 3 | 6 | 75 | 2 |
| EMA06030075 | R1.5 | 3.0 | 4 | 6 | 75 | 2 |
| EMA06040075 | R2.0 | 4.0 | 4 | 8 | 100 | 2 |
| EMA06040100 | R2.0 | 4.0 | 4 | 8 | 75 | 2 |
| EMA060100756 | R0.5 | 1.0 | 6 | 2 | 75 | 2 |
| EMA060150756 | R0.75 | 1.5 | 6 | 3 | 75 | 2 |
| EMA060200756 | R1.0 | 2.0 | 6 | 4 | 75 | 2 |
| EMA060300756 | R1.25 | 3.0 | 6 | 6 | 75 | 2 |
| EMA060400756 | R1.5 | 4.0 | 6 | 8 | 75 | 2 |
| EMA060401006 | R2.0 | 4.0 | 6 | 8 | 100 | 2 |
| EMA06050100 | R2.0 | 5.0 | 6 | 10 | 100 | 2 |
| EMA06060075 | R2.5 | 6.0 | 6 | 12 | 75 | 2 |
| EMA06060100 | R3.0 | 6.0 | 6 | 12 | 100 | 2 |
| EMA06080075 | R3.0 | 8.0 | 8 | 16 | 75 | 2 |
| EMA06080100 | R4.0 | 8.0 | 8 | 16 | 100 | 2 |
| EMA06100100 | R4.0 | 10.0 | 10 | 20 | 100 | 2 |
| EMA06120100 | R5.0 | 12.0 | 12 | 24 | 100 | 2 |
| EMA06060150 | R6.0 | 6.0 | 6 | 12 | 150 | 2 |
| EMA06080150 | R3.0 | 8.0 | 8 | 16 | 150 | 2 |
| EMA06100150 | R4.0 | 10.0 | 10 | 20 | 150 | 2 |
| EMA06120150 | R5.0 | 12.0 | 12 | 24 | 150 | 2 |
| EMA06160150 | R6.0 | 16.0 | 16 | 32 | 150 | 2 |
| EMA06200150 | R8.0 | 20.0 | 20 | 40 | 150 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
