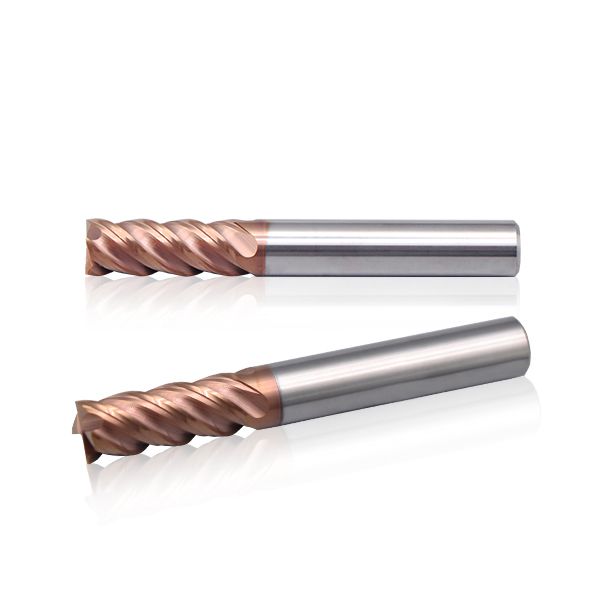

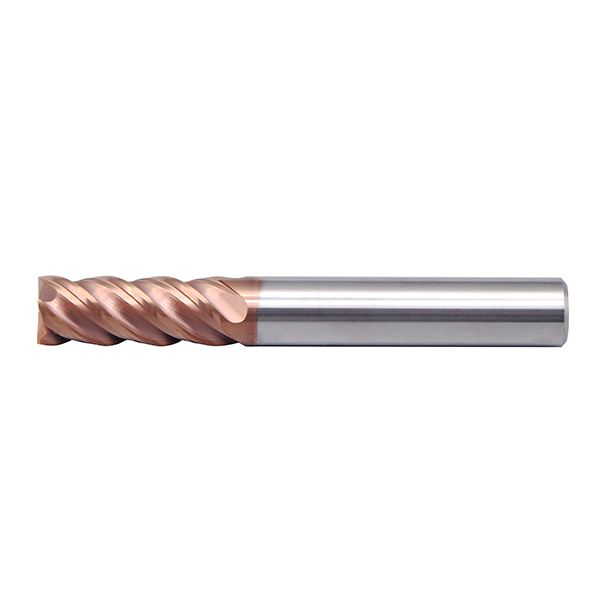

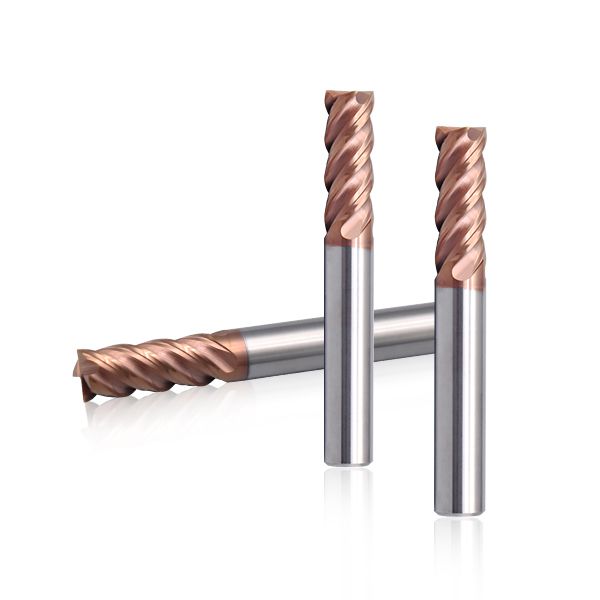

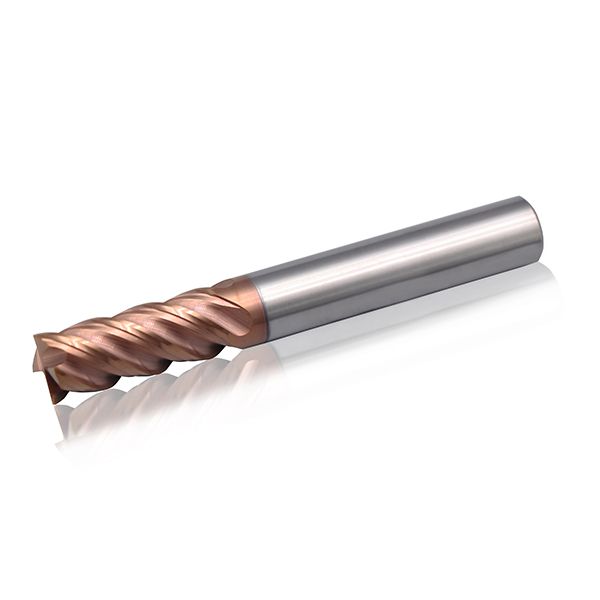

EMB03 4 Flute Carbide Cutter Bit
- Designed for machine tool steel, alloy steel, mold steel and other high hardened materials up to HRC65.
- Oerlikon Balzers coating offers superior hardness and heat resistance
- Increased feed rates

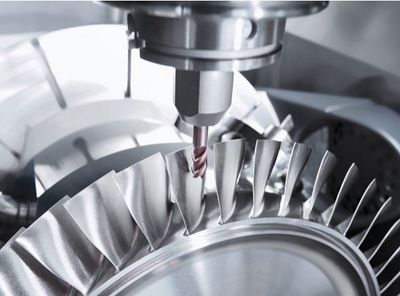

Application
Product Specifications
| Coating | AITiN | HRC | HRC50/65 |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
4 Flutes HRC65 Carbide Cutter Bits (UNT-EMB03)

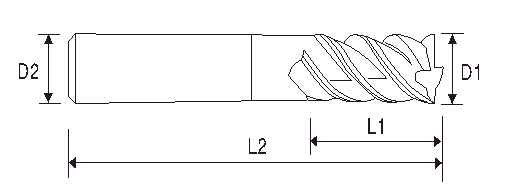

| UNT EDP # Click to Order | Mill Dia. D1 |
Shank Dia. D2 |
Flute Length L1 |
O.A.L. L2 |
Flutes |
| EMB030104 | 1.0 | 4 | 3 | 50 | 4 |
| EMB030154 | 1.5 | 4 | 4 | 50 | 4 |
| EMB030204 | 2.0 | 4 | 6 | 50 | 4 |
| EMB030254 | 2.5 | 4 | 6 | 50 | 4 |
| EMB030303 | 3.0 | 3 | 8 | 50 | 4 |
| EMB030304 | 3.0 | 4 | 8 | 50 | 4 |
| EMB030354 | 3.5 | 4 | 10 | 50 | 4 |
| EMB030404 | 4.0 | 4 | 11 | 50 | 4 |
| EMB030106 | 1.0 | 6 | 3 | 50 | 4 |
| EMB030156 | 1.5 | 6 | 4 | 50 | 4 |
| EMB030206 | 2.0 | 6 | 6 | 50 | 4 |
| EMB030256 | 2.5 | 6 | 6 | 50 | 4 |
| EMB030306 | 3.0 | 6 | 8 | 50 | 4 |
| EMB030356 | 3.5 | 6 | 10 | 50 | 4 |
| EMB030406 | 4.0 | 6 | 11 | 50 | 4 |
| EMB030450 | 4.5 | 6 | 13 | 50 | 4 |
| EMB030500 | 5.0 | 6 | 13 | 50 | 4 |
| EMB030550 | 5.5 | 6 | 16 | 50 | 4 |
| EMB030600 | 6.0 | 6 | 16 | 50 | 4 |
| EMB030650 | 6.5 | 8 | 20 | 60 | 4 |
| EMB030700 | 7.0 | 8 | 20 | 60 | 4 |
| EMB030750 | 7.5 | 8 | 20 | 60 | 4 |
| EMB030800 | 8.0 | 8 | 20 | 60 | 4 |
| EMB030850 | 8.5 | 10 | 25 | 75 | 4 |
| EMB030900 | 9.0 | 10 | 25 | 75 | 4 |
| EMB030950 | 9.5 | 10 | 25 | 75 | 4 |
| EMB031000 | 10.0 | 10 | 25 | 75 | 4 |
| EMB031100 | 11.0 | 12 | 30 | 75 | 4 |
| EMB031200 | 12.0 | 12 | 30 | 72 | 4 |
| EMB031400 | 14.0 | 14 | 40 | 100 | 4 |
| EMB031600 | 16.0 | 16 | 40 | 100 | 4 |
| EMB031800 | 18.0 | 18 | 40 | 100 | 4 |
| EMB032000 | 20.0 | 20 | 40 | 100 | 4 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
